Simrad ES70 - REFERENCE MANUAL REV A Reference Manual page 143

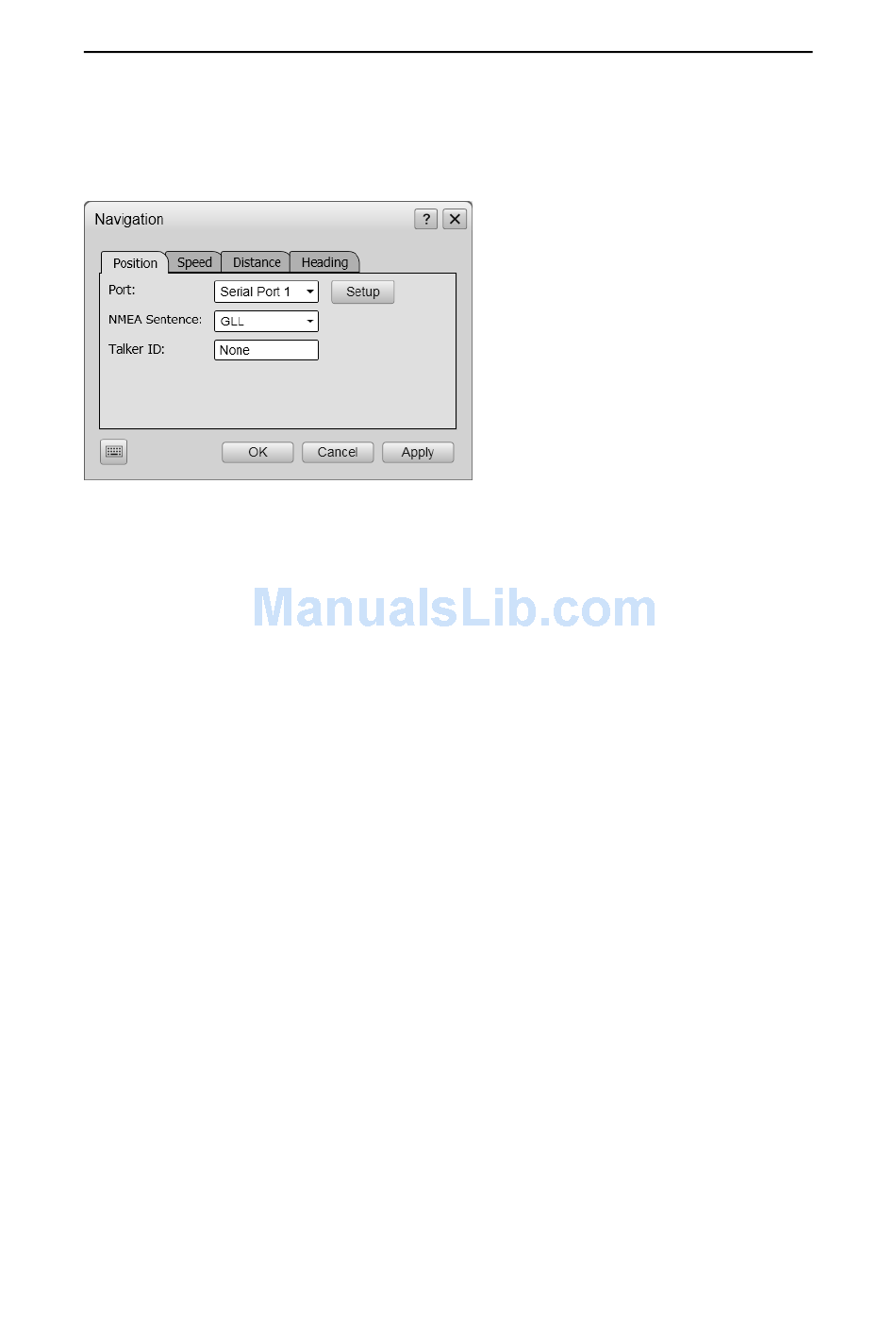

Navigation; Position tab
• : Select which NMEA sentence to be used for the communication.
NMEA Sentence
– : The ES70 will read all relevant telegrams. If the specified information is
Auto
provided to the system on more than one telegram format, a built-in priority list
will be used.
– : This telegram is used to transfer latitude and longitude of vessel position,
GLL
time of position fix and status from a global positioning system (GPS).
→ GLL Geographical position latitude/longitude on page 191
– : This telegram contains time, position and fix related data from a global
GGA
positioning system (GPS).
→ GGA Global positioning system fix data on page 191
– : This telegram contains time, date, position, course and speed data provided
RMC
by a global navigation satellite system (GNSS) receiver.
→ RMC Recommended minimum specific GNSS data on page 193
• : If you wish to specify a dedicated
Talker ID
it can be entered here.
The is the first two characters in the NMEA sentence. Select None to accept
Talker ID
all talker identifiers.
Note that you need to a keyboard to enter the
button at the bottom of the dialog to open an on-screen keyboard.
Keyboard
→ About the NMEA telegram format on page 189
→ Telegram formats on page 188.
338106/A
Functions and dialogs
Parameters
• : Select which serial or
Port
Ethernet port to use for this
communication.
• : Once you have selected a
Setup
serial or Ethernet communication
port, click this button to set up the
applicable port parameters. The
relevant port setup dialog opens.
→ Serial Port Setup on page 170
→ LAN Port Setup on page 169
on the telegram format,
Talker ID
. If you do have one, click the
Talker ID
141
