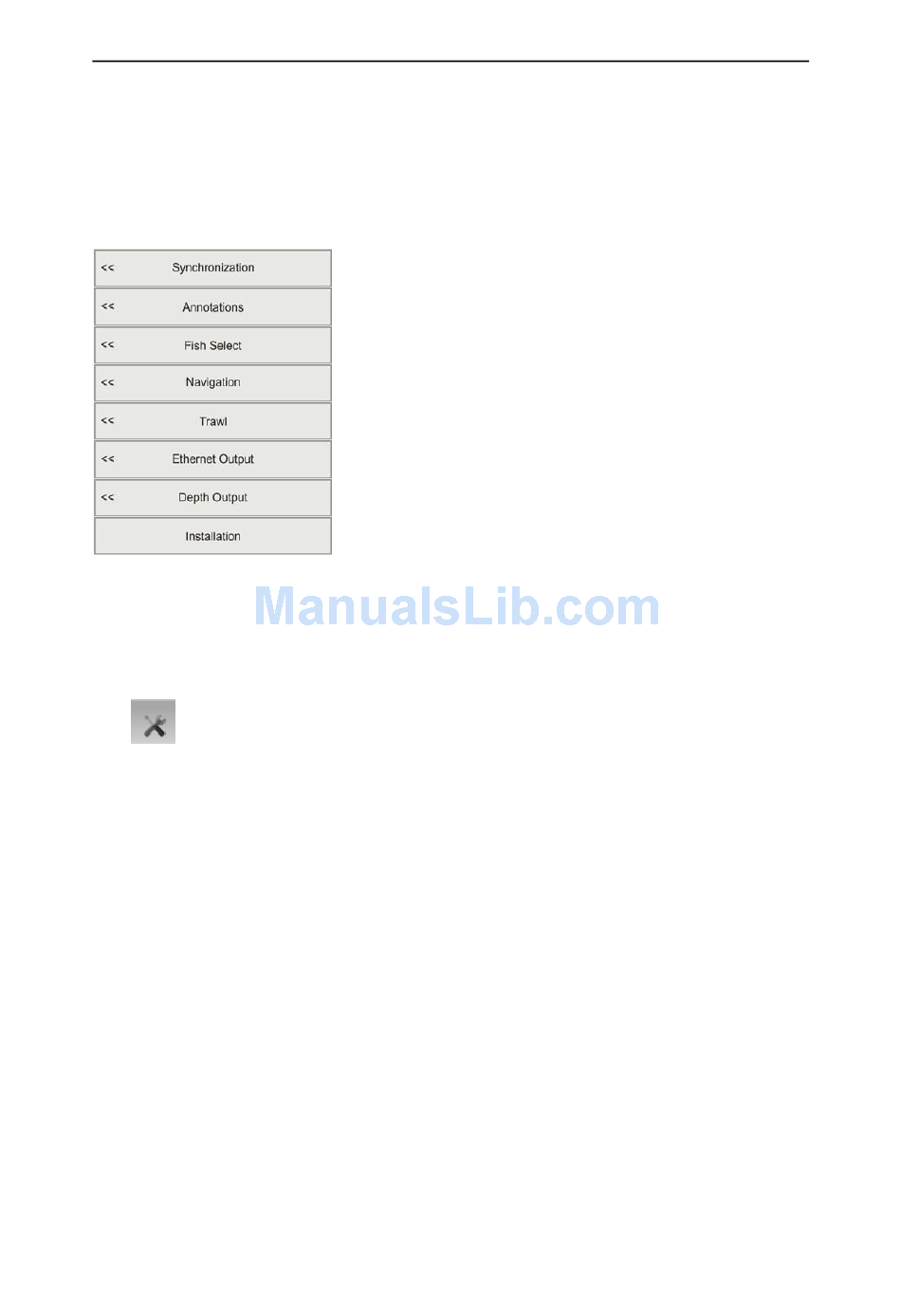

Setup menu; functions and dialogs

The following functions and parameters are available from the
How to open the Setup
menu
1 Click once on the icon
under the menu to
Main
open the menu
Setup
2 Click one more time
on the icon to close the
menu.
338106/A
• The purpose of the
the ES70 to operate alone, or as a master or slave in
a synchronized system. Synchronization is required
in order to avoid interference if the ES70 is used
simultaneously with other hydroacoustic instruments
within the same frequency range.
→ Synchronization on page 136
• The purpose of the
you to enter comments and annotations into the
echograms.
→ Annotations on page 137
• The parameters in the
to modify the fish size distribution manually.
→ Fish Select on page 139
• The dialog controls how the ES70
Navigation
receives information from external sensors.
→ Navigation on page 140
• The dialog allows you to enter the main
Trawl
parameters related to the trawl. Trawl information is
used for display of upper and lower trawl line in the
echogram. All received speed data are stored to file
when recording of raw data to file is enabled.
→ Trawl on page 145
• The purpose of the
communication parameters for the EK500 datagram
output on the Ethernet port.
→ Ethernet Output on page 146
• The
Depth Output
output of depth data from the ES70 to a dedicated
communication port on a specified format.
→ Depth Output on page 147
• The button opens a sub-menu with four
Installation
choices. You can define environment parameters
related to the sea conditions, set up the inputs and
outputs from an to peripheral devices, set up the
transceiver, and administrate the software licenses.
→ Installation on page 149
Functions and dialogs
menu.
Setup
dialog is to set up
Synchronization
dialog is to allow
Annotation
dialog allows you
Fish Select
dialog is define
Ethernet Output
dialog is used to set up the
