You can change the size of the information pane to suit your preferences, and you can
move it within the echogram presentation it is valid for. To change its size, click on the
shaded area in the bottom right corner, hold the mouse button depressed, and drag to
requested size. To move an information pane, just click inside it, hold the mouse button
depressed, and move it to requested position.
The information panes are transparent, so you can safely place a pane on top of the
echogram without losing the information behind it. The degree of transparency is
controlled by the
Transparency
All information panes are provided with small buttons in the top right corner.
• The top right button closes the information pane. Note that you can also close the
pane if you click one more time on its button on the
• The other button will restore the information pane to its original size and location.
• Some of the information panes are provided with a "tool" button. This buttons opens
a dialog relevant to the information shown in the pane.

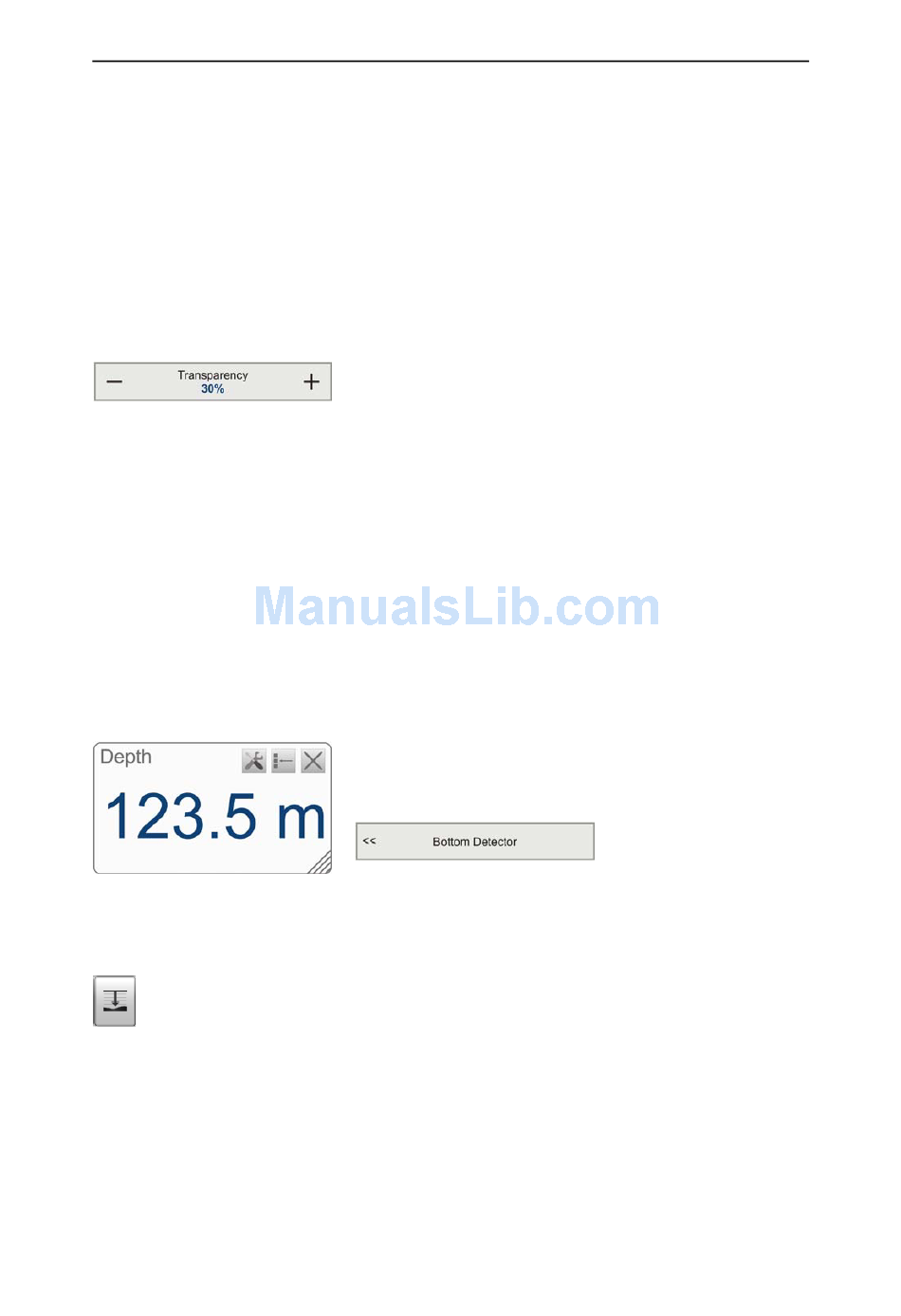

Depth information pane

The information pane displays the current depth for the chosen transducer and
Depth
frequency.
To open this information pane, click the

Biomass information pane

The information pane displays the current biomass calculated for the current set
Biomass
of echogram. Only the biomass calculated for the current transducer frequency is shown.
338106/A
button on the
Display
The in the information pane button opens the
Tool
dialog. This dialog is also available
Bottom Detector
from the menu.
Active
→ Bottom Detector on page 167
icon on the
Depth
Display views
menu.
.
Title Bar
.
Title Bar
