• : This function initiates annotations whenever an event occur. Events may be
Event
triggered by external devices, set by a timer, or initiated by clicking the Event icon
on the toolbar.
– : All events are identified with a number. This number can be included
Number
in the annotation string. Using this feature, you can manually select the next
number to be used, and you can choose to have the number series decrease instead
of increasing.
– : Use this feature to select which items to be included in the event generated
Text
annotation string. You can also add a text string to be included at every event
annotation.
If you do have a keyboard connected to your ES70 system, click the
button at the bottom of the dialog to open an on-screen keyboard.
– : Set a time period for automatic generation of events.
Timer
Triggering from external devices are made using pins 10 and 19 on the
connector on the General Purpose Transceiver (GPT). Refer to the ES70 Installation
Manual.
• : This text box automatically displays the latest annotation text
Latest Annotation
entered.
Related topics
• LAN Port Setup on page 169
• Serial Port Setup on page 170

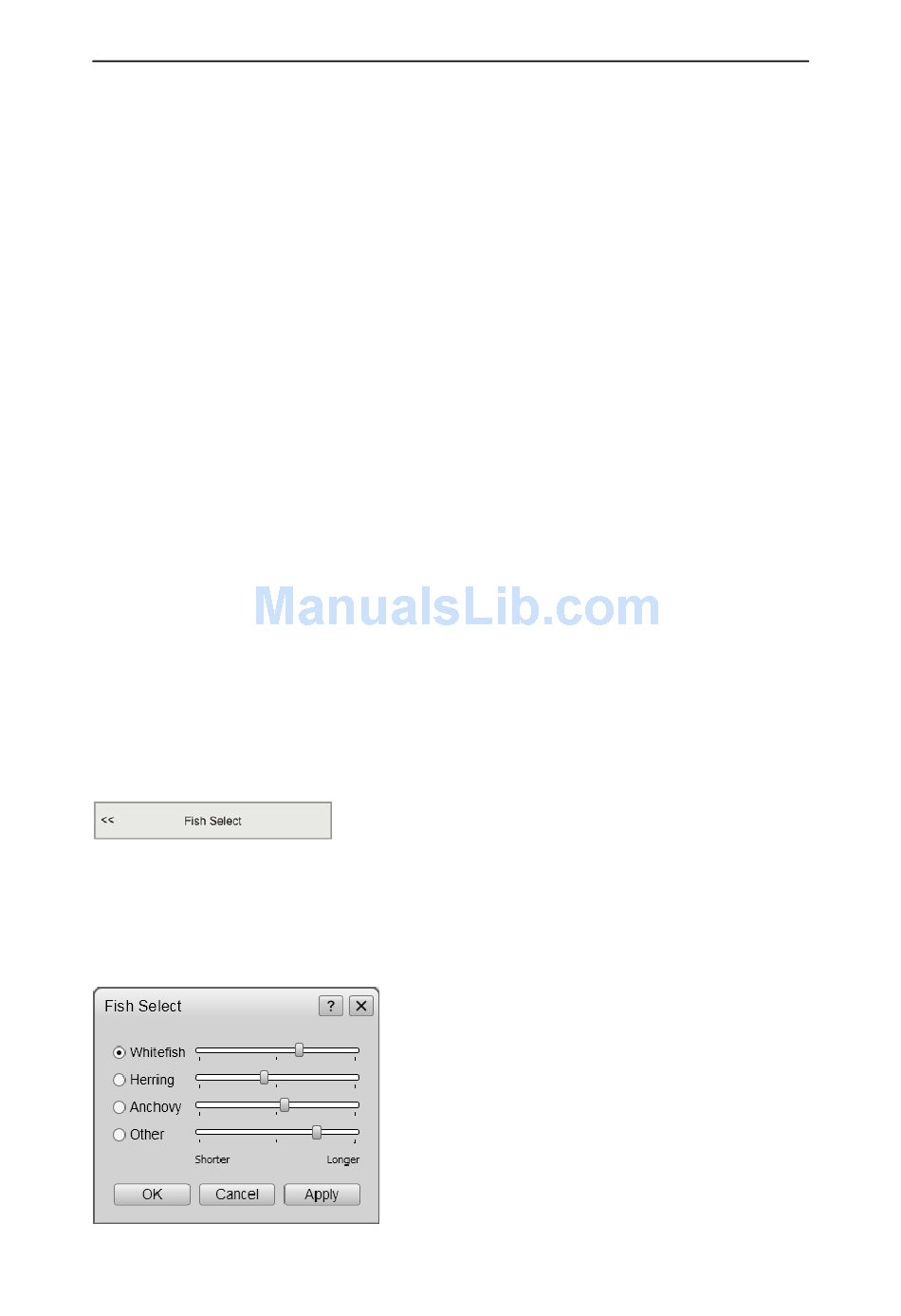

Fish Select

The dialog is opened from the
Fish Select
Purpose
The parameters in the
manually.
338106/A
Fish Select
dialog allows you to modify the fish size distribution
Fish Select
Description
If the information in the
information pane appears to be inaccurate, or the
information does not correspond with the actual
catch, the values can be modified. Select the fish
type you are catching or looking for, then adjust
the size. For more information about the biomass
presentation, see .
Functions and dialogs
button on the menu.
Setup
Size Distribution
Keyboard
Auxiliary
139
