Lines, markers and annotations in the echograms

The echograms provided by the ES70 may contain additional information.
Bottom line
The bottom contour may be enhanced by adding a bottom line. This is done in the
dialog on the
Echogram
→ How to establish horizontal markers on page 71
→ Bottom line on page 211
→ Echogram; Lines tab on page 159

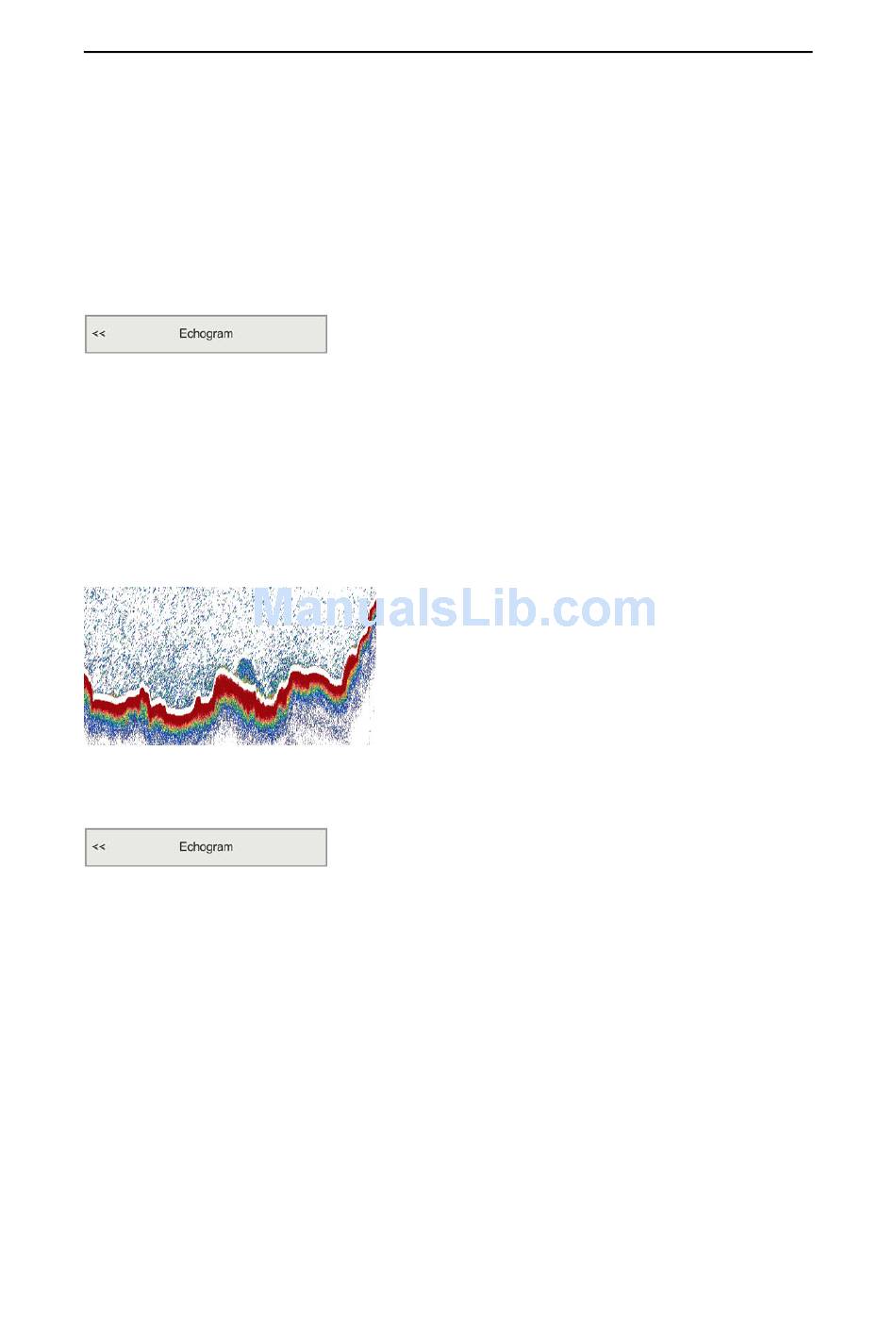

White line
The bottom contour may also be enhanced by adding a white line.
The white line is enabled in the
used simultaneously with the hardness line.
→ How to establish horizontal markers on page 71
→ White line on page 212
→ Echogram; Lines tab on page 159
Hardness line
The bottom hardness may be monitored using the hardness line.
338106/A
menu.
Active
The white line is an extra thick white line that is
added to just below the bottom. The white line
will not remove information, it will simply "push"
the information further down in order to make the
bottom easier to see.
dialog on the
Echogram
Display views
menu. It can not be
Active
47
