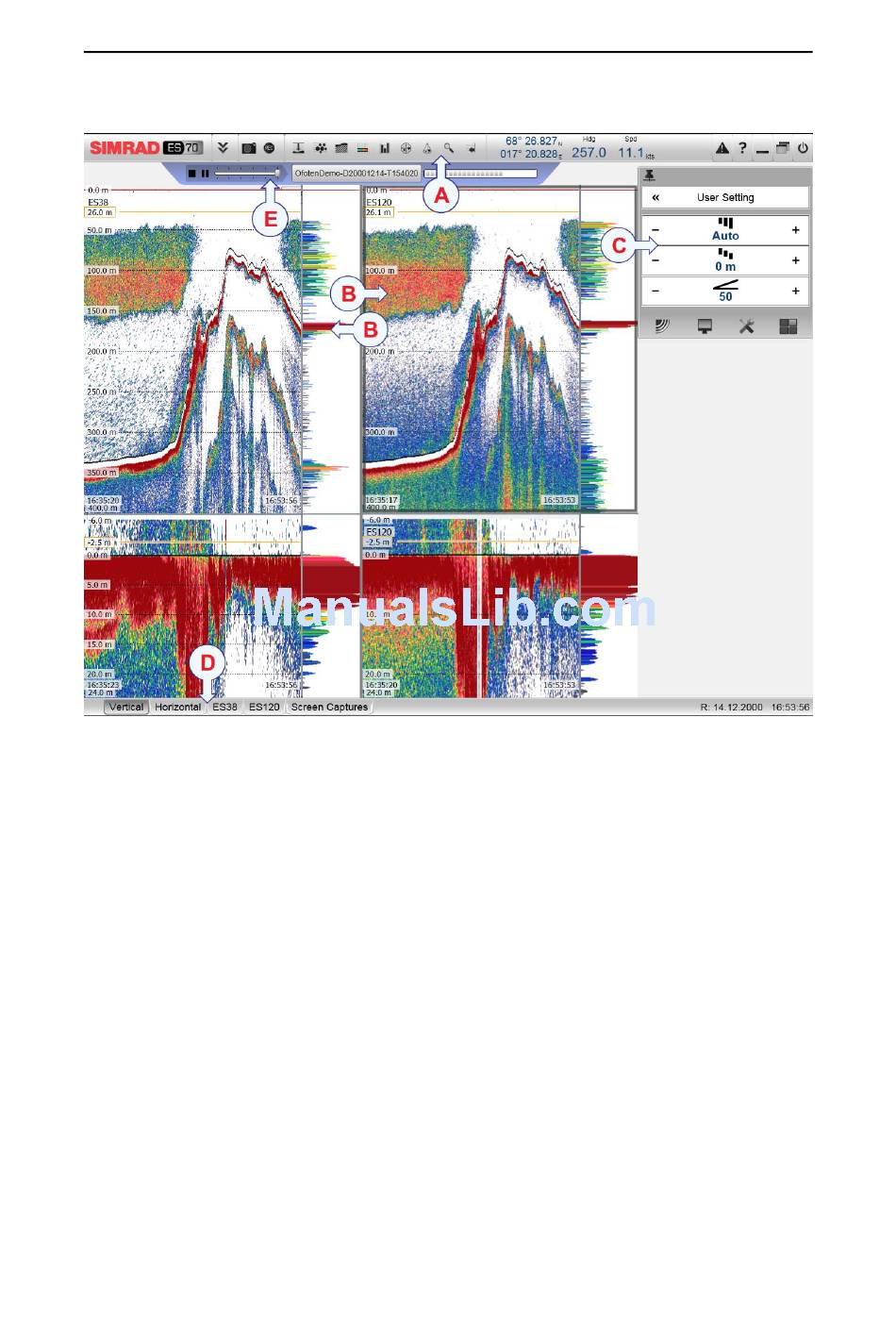

The example shows a dual frequency echo sounder using two split-beam transducers (38
and 120 kHz). The screen capture has been made while in Replay mode.
A
Title Bar
The contains icons to open the various information panes, as well as
Title Bar
buttons to initiate specific functions.
B
Echogram(s)
One or more Echogram is displayed using the largest portion of the screen. The
presentation layout is controlled by the function buttons on the
display individual echograms for each frequency in use, or you can lay out the
presentation of all frequencies either horizontally or vertically.
Additional information panes may be selected on the
icons.
C menu
Main
The menu system is by default located at the right side of the display presentation.
The main menu is always visible, but may be hidden from view. To open a
sub-menu, click one of the icons at the bottom of the main menu.
D
Taskbar
338106/A
Getting started
. You can
Status bar
using the relevant
Title Bar
