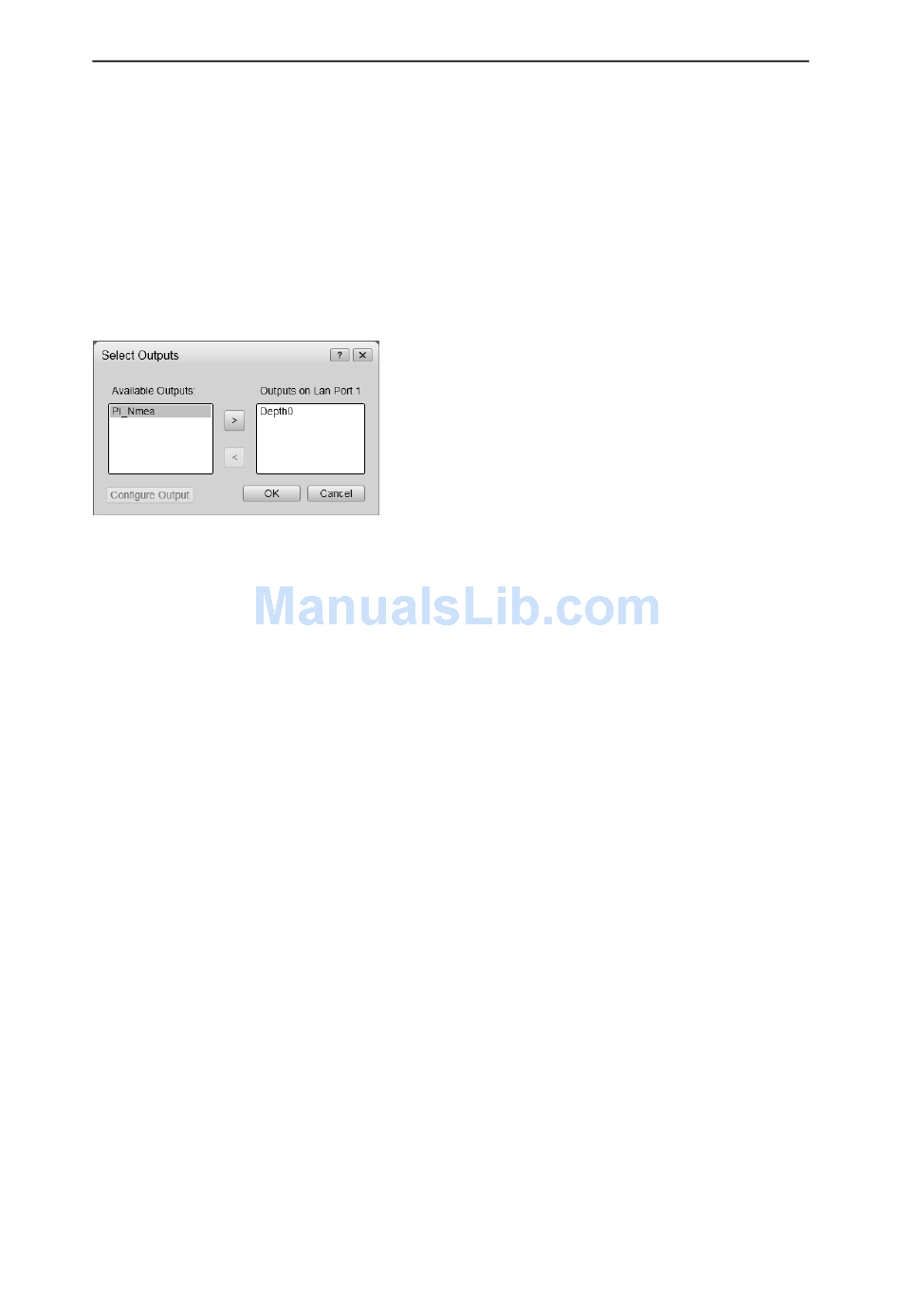

Select Outputs

The dialog is opened from the
Select Inputs
Purpose
The dialog allows you to select information to be exported to peripheral
Select Outputs
systems on the chosen Ethernet (LAN) or serial line output.
Parameters
• : This field lists the available output signals.
Available Outputs
The available sources are defined in a configuration file on the ES70, and reflects the
export data and file formats the ES70 can support.
– : Depth output
Depth
The following telegram formats are supported:
* DBS Depth below surface on page 190
* DBT Depth below transducer on page 190
* DPT Depth on page 190
* Simrad EK500 Depth on page 195
* Atlas depth telegram on page 203
* PSIMDHB Bottom hardness and biomass on page 200
→ Depth Output on page 147
– : Synchronization
Sync
→ Synchronization on page 136
– : Information from Simrad PI catch monitoring system relayed by the
PI NMEA
ES70
→ PI Data Output on page 186
• : This field lists the selected output signals to the relevant
Selected Outputs
communication port.
• : Some of the outputs may be set up by the ES70. To do this,
Configure Output
click on the output name, and then this button. When applicable, the relevant setup
dialog will open.
338106/A
button in the
Input
Description
In the
Select Outputs
signals are listed in the left text field. To enable
an output, click on it in the left column to select
it, and then click the [>] button. If the output's
communication parameters can be set up, click
the signal name to select it, and then click the
button. If applicable, the
Configure Output
relevant dialog will open.
Functions and dialogs
Port Management
dialog, all available output
dialog.
