Spanning Tree Algorithm Configuration

Displaying Interface Settings for MSTP

The MSTP Port Information and MSTP Trunk Information pages display the current
status of ports and trunks in the selected MST instance.
Command Attributes
• MST Instance ID – Instance identifier to configure. (Default: 0)
The other attributes are described under "Displaying Interface Settings for STA" on page 3-151
Web – Click Spanning Tree, MSTP, Port or Trunk Information. Select the required
MST instance to display the current spanning tree values.

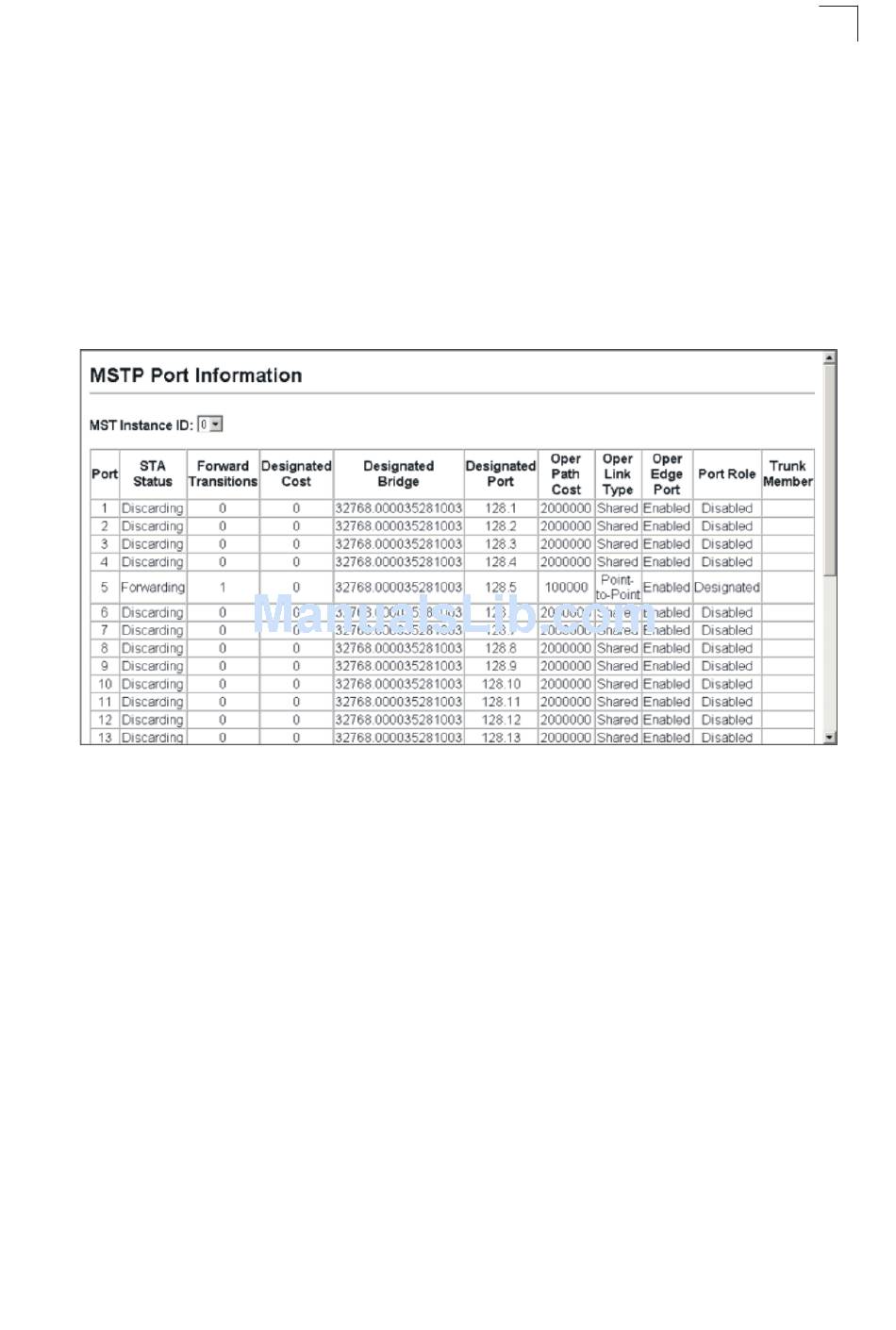

Figure 3-94 Displaying MSTP Interface Settings

3-161
