- Non-MVR – An interface that does not participate in the MVR VLAN. (This is the
default type.)
• Immediate Leave – Configures the switch to immediately remove an interface
from a multicast stream as soon as it receives a leave message for that group.
(This option only applies to an interface configured as an MVR receiver.)
18
• Trunk – Shows if port is a trunk member.
Web – Click MVR, Port or Trunk Configuration.
CLI – This example configures an MVR source port and receiver port, and then
enables immediate leave on the receiver port.
Console(config)#interface ethernet 1/1
Console(config-if)#mvr type source
Console(config-if)#exit
Console(config)#interface ethernet 1/2
Console(config-if)#mvr type receiver
Console(config-if)#mvr immediate
Console(config-if)#
18. Port Information only.

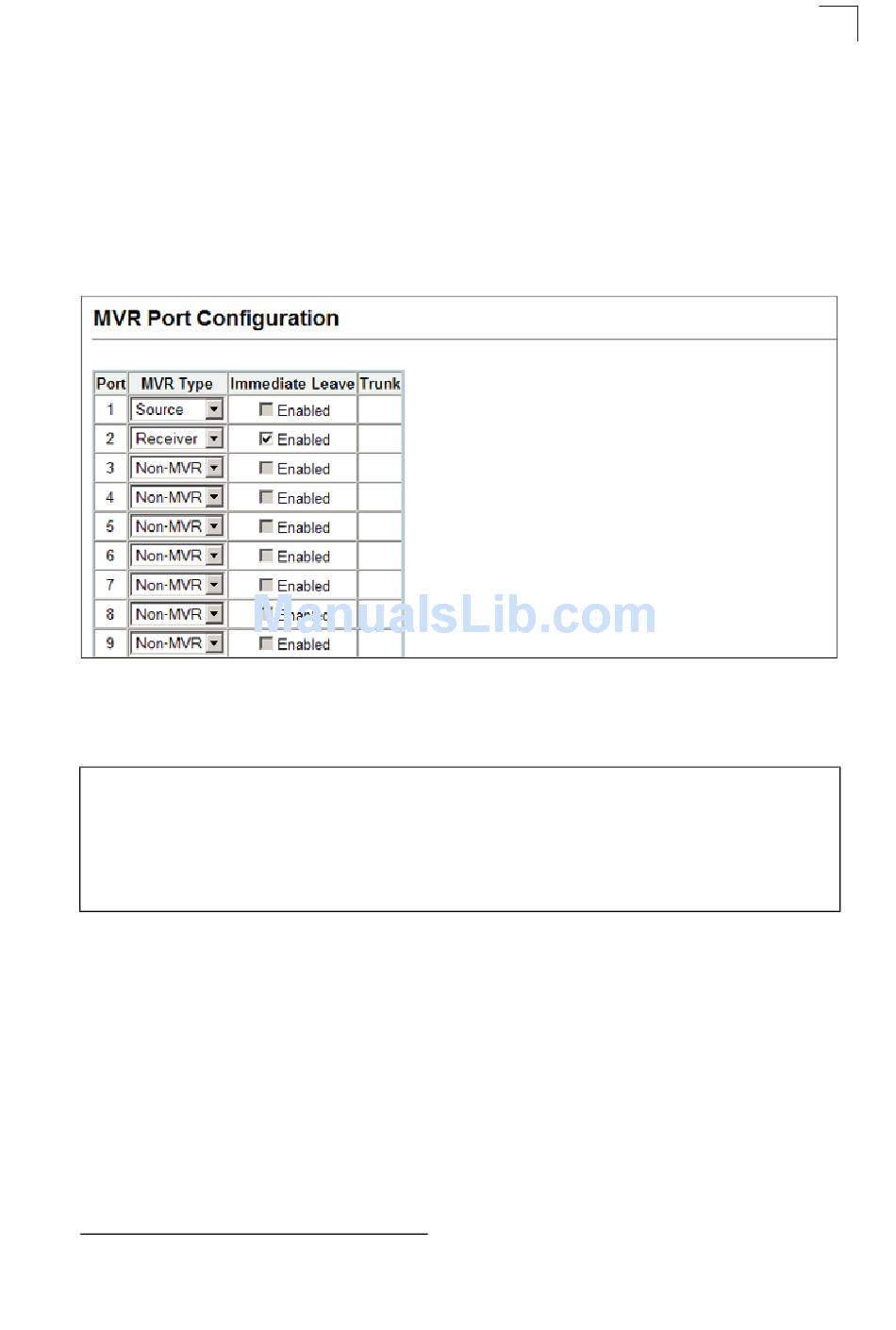

Figure 3-133 MVR Port Configuration

3
Multicast Filtering
4-286
4-286
4-286
3-229
