Configuring the Switch

Port Configuration

Displaying Connection Status

You can use the Port Information or Trunk Information pages to display the current
connection status, including link state, speed/duplex mode, flow control, and
auto-negotiation.
Field Attributes (Web)
• Name – Interface label.
• Type – Indicates the port type. (1000BASE-T or 1000BASE-SFP)
• Admin Status – Shows if the interface is enabled or disabled.
• Oper Status – Indicates if the link is Up or Down.
• Speed Duplex Status – Shows the current speed and duplex mode.
(Auto, or fixed choice)
• Flow Control Status – Indicates the type of flow control currently in use.
(IEEE 802.3x, Back-Pressure or None)
• Autonegotiation – Shows if auto-negotiation is enabled or disabled.
5
• Media Type – Media type used for the combo ports 21-24
(Options: Copper-Forced, SFP-Forced, or SFP-Preferred-Auto; Default:
SFP-Preferred-Auto)
• Trunk Member
6
• Creation – Shows if a trunk is manually configured or dynamically set via LACP.
Web – Click Port, Port Information or Trunk Information.
Field Attributes (CLI)
Basic Information:
• Port Type – Indicates the port type. (1000BASE-T or 1000BASE-SFP)
• MAC address – The physical layer address for this port. (To access this item on
the web, see 3-16.)
5. Port information only.
6. Trunk information only.
3-112
5 – Shows if port is a trunk member.

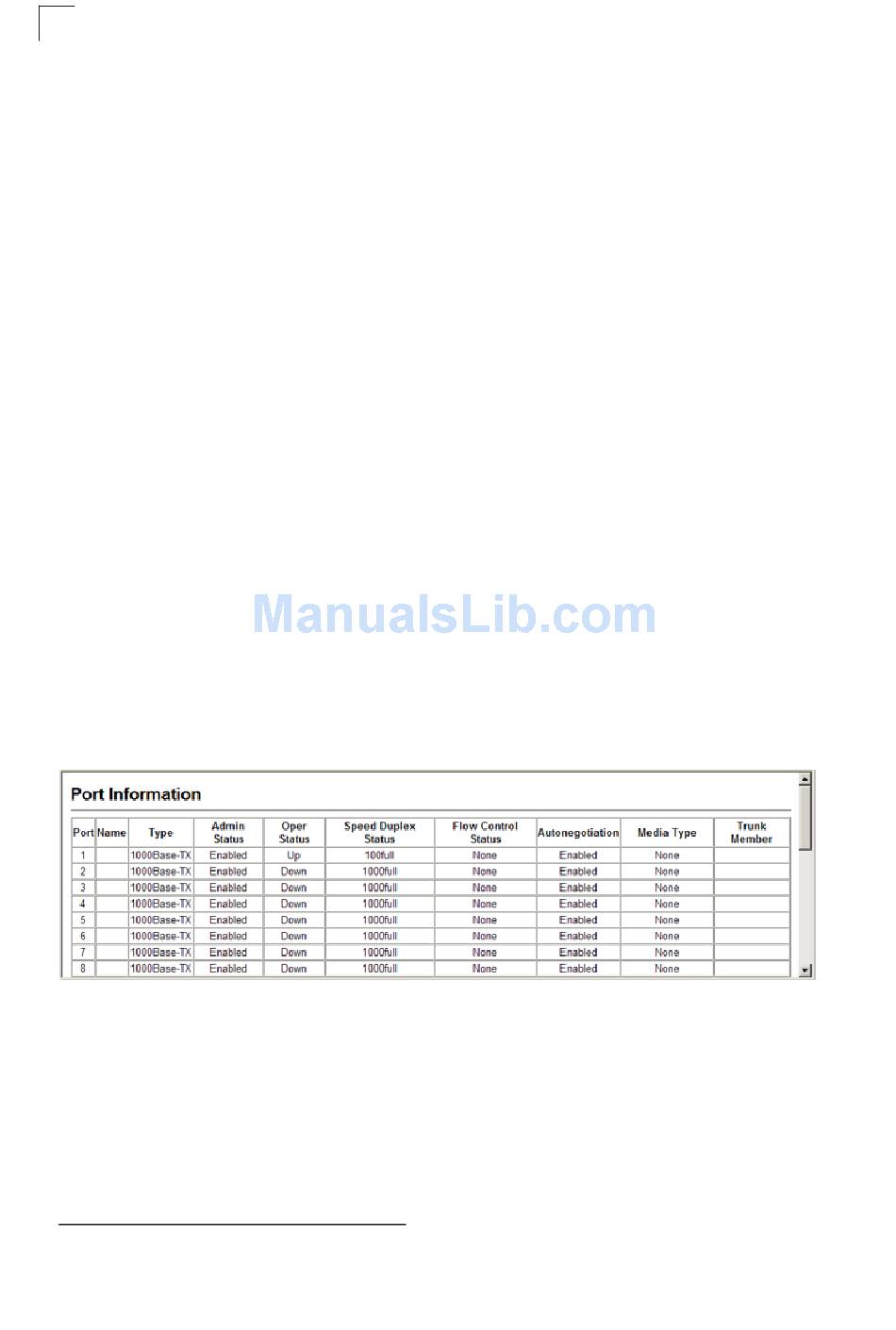

Figure 3-70 Displaying Port/Trunk Information
