Mapping IP Port Priority

You can also map network applications to Class of Service values based on the IP
port number (i.e., TCP/UDP port number) in the frame header. Some of the more
common TCP service ports include: HTTP: 80, FTP: 21, Telnet: 23 and POP3: 110.
Command Attributes
• IP Port Priority Status – Enables or disables the IP port priority.
• IP Port Priority Table – Shows the IP port to CoS map.
• IP Port Number (TCP/UDP) – Set a new IP port number.
• Class of Service Value – Sets a CoS value for a new IP port. Note that "0"
represents low priority and "7" represent high priority.
Note:
Up to 8 entries can be specified.
IP Port Priority settings apply to all interfaces.
Web – Click Priority, IP Port Priority Status. Set IP Port Priority Status to Enabled.
Click Priority, IP Port Priority. Enter the port number for a network application in the
IP Port Number box and the new CoS value in the Class of Service box, and then
click Apply.

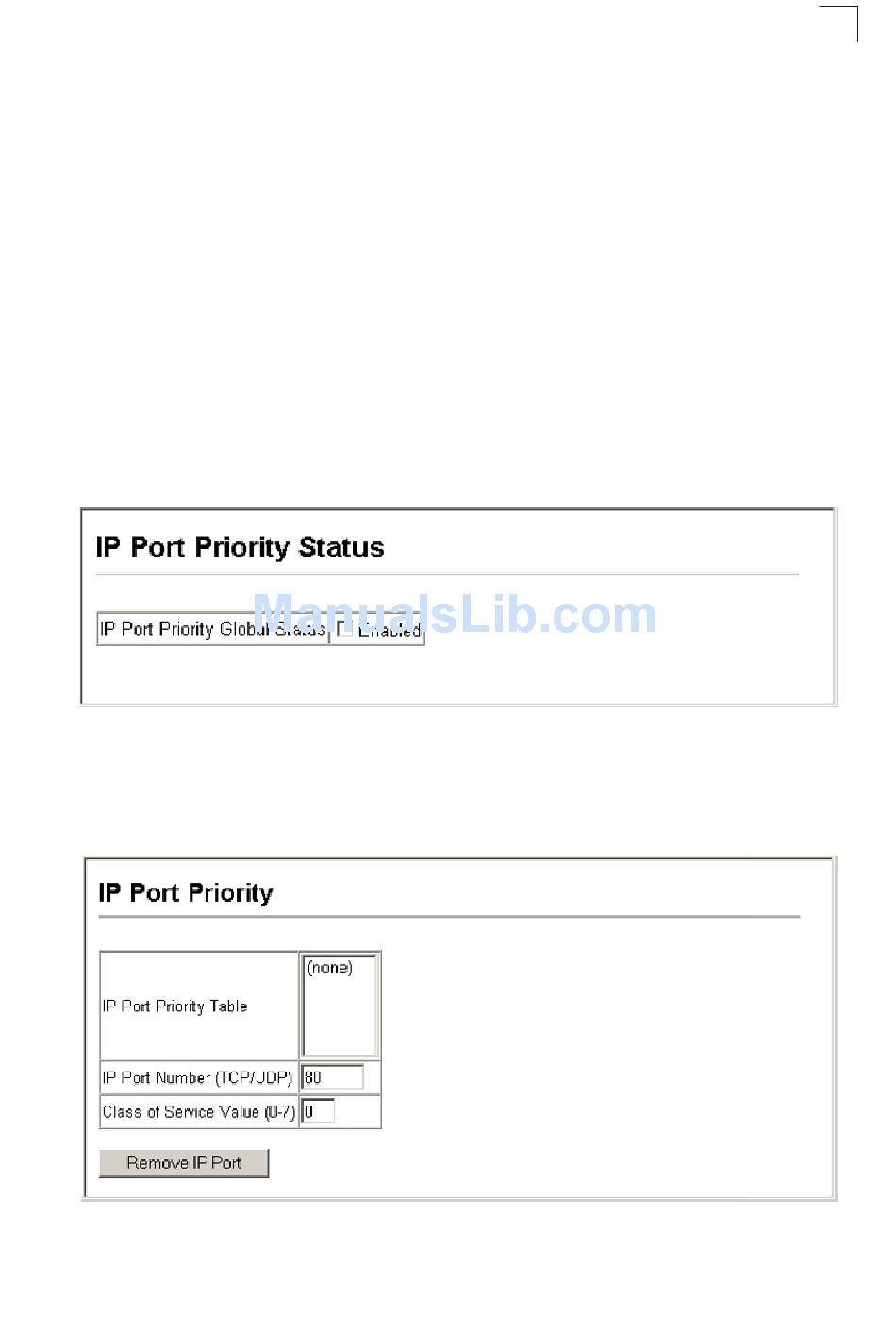

Figure 3-116 IP Port Priority Status

Figure 3-117 IP Port Priority

Class of Service Configuration
3
3-199
