3
Configuring the Switch
Web – Click VLAN, Protocol VLAN, Port Configuration.
CLI – The following maps the traffic entering Port 1 which matches the protocol type
specified in protocol group 2 to VLAN 2.
Console(config)#interface ethernet 1/1
Console(config-if)#protocol-vlan protocol-group 3 vlan 2
Console(config-if)#
3-188

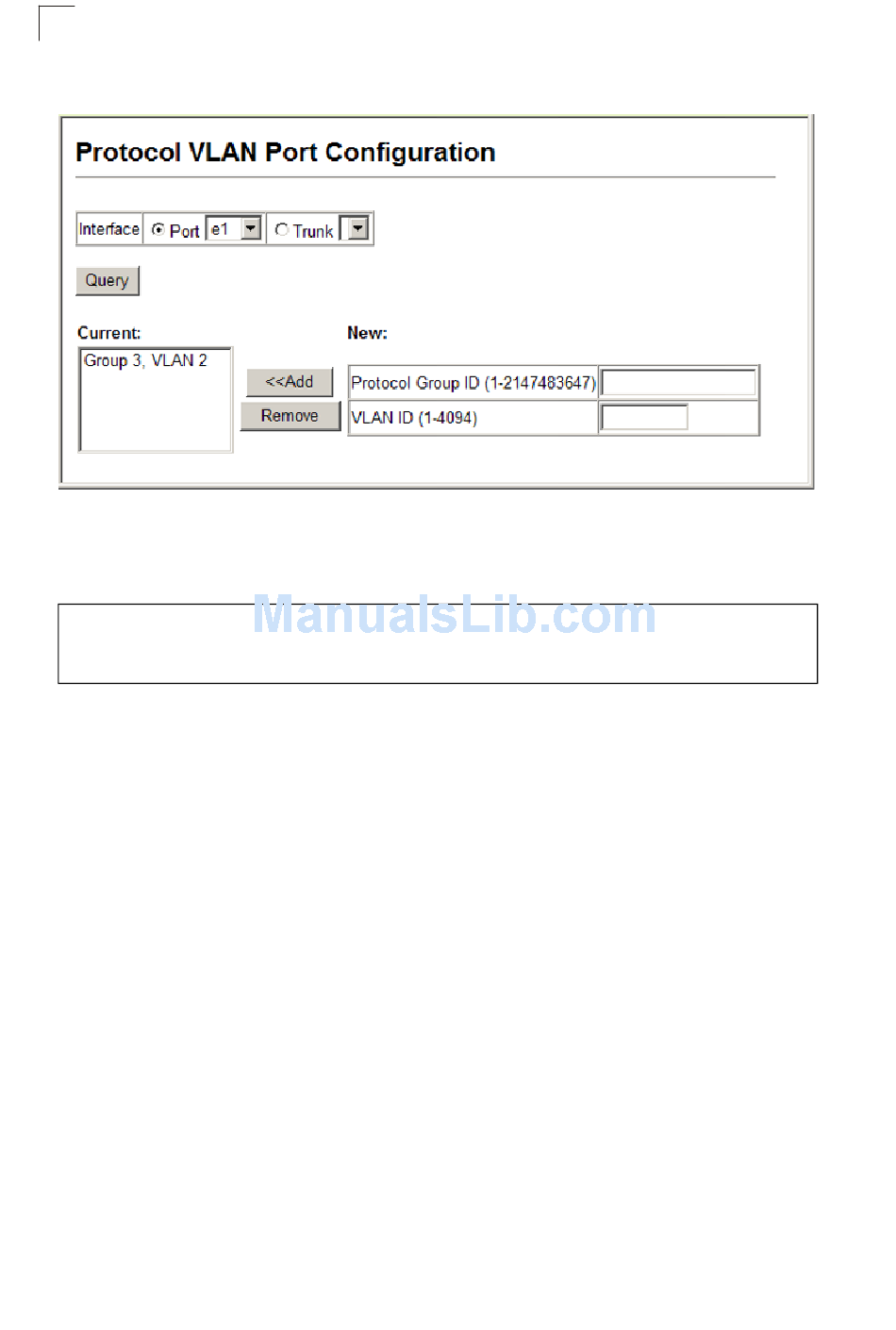

Figure 3-108 Protocol VLAN Port Configuration

4-155
4-241
