problem has been resolved. You may also disable an interface for security
reasons.
• Speed/Duplex – Allows you to manually set the port speed and duplex mode.
(i.e., with auto-negotiation disabled)
• Flow Control – Allows automatic or manual selection of flow control.
• Autonegotiation (Port Capabilities) – Allows auto-negotiation to be enabled/
disabled. When auto-negotiation is enabled, you need to specify the capabilities to
be advertised. When auto-negotiation is disabled, you can force the settings for
speed, mode, and flow control.The following capabilities are supported.
- 10half - Supports 10 Mbps half-duplex operation
- 10full - Supports 10 Mbps full-duplex operation
- 100half - Supports 100 Mbps half-duplex operation
- 100full - Supports 100 Mbps full-duplex operation
- 1000full (Combo ports only) - Supports 1000 Mbps full-duplex operation
(Default: Autonegotiation enabled; Advertised capabilities for 100BASE-TX –
10half, 10full, 100half, 100full; 1000BASE-T – 10half, 10full, 100half, 100full,
1000full; 1000BASE-SX/LX/ZX – 1000full)
• Media Type – Media type used for the combo ports 21-24.
- Copper-Forced - Always uses the built-in RJ-45 port.
- SFP-Forced - Always uses the SFP port (even if a module is not installed).
- SFP-Preferred-Auto - Uses SFP port if both combination types are functioning
and the SFP port has a valid link. (This is the default.)
• Trunk – Indicates if a port is a member of a trunk. To create trunks and select port
members, see 3-116.
Web – Click Port, Port Configuration or Trunk Configuration. Modify the required
interface settings, and click Apply.

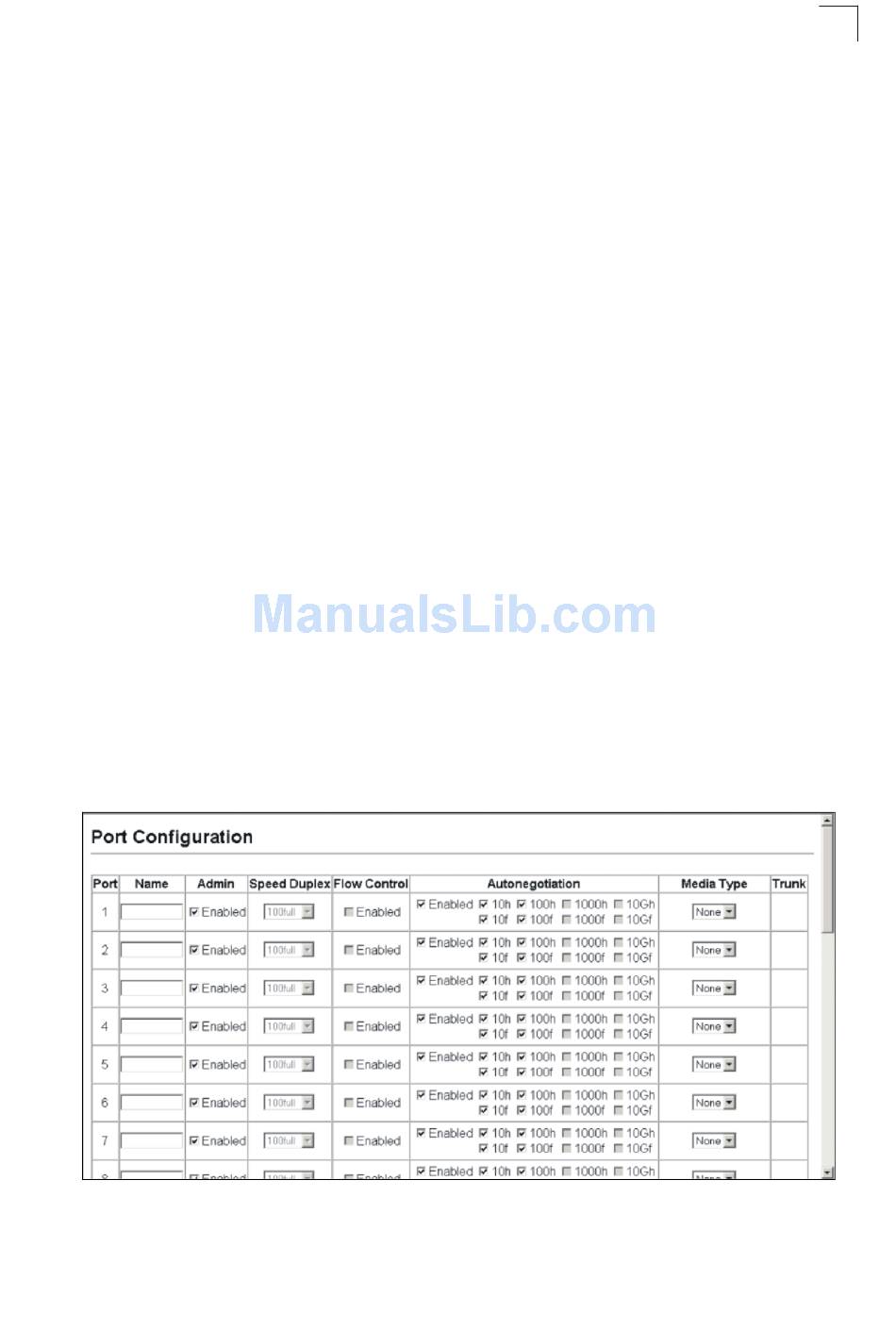

Figure 3-71 Port/Trunk Configuration

3
Port Configuration
3-115
