Displaying 802.1X Statistics

This switch can display statistics for dot1x protocol exchanges for any port.
Parameter
Rx EAPOL Start
Rx EAPOL Logoff
Rx EAPOL Invalid
Rx EAPOL Total
Rx EAP Resp/Id
Rx EAP Resp/Oth
Rx EAP LenError
Rx Last EAPOLVer
Rx Last EAPOLSrc
Tx EAPOL Total
Tx EAP Req/Id
Tx EAP Req/Oth
Web – Select Security, 802.1X, Statistics. Select the required port and then click
Query. Click Refresh to update the statistics.
3-86

Table 3-7 802.1X Statistics

Description
The number of EAPOL Start frames that have been received by this Authenticator.
The number of EAPOL Logoff frames that have been received by this Authenticator.
The number of EAPOL frames that have been received by this Authenticator in which
the frame type is not recognized.
The number of valid EAPOL frames of any type that have been received by this
Authenticator.
The number of EAP Resp/Id frames that have been received by this Authenticator.
The number of valid EAP Response frames (other than Resp/Id frames) that have
been received by this Authenticator.
The number of EAPOL frames that have been received by this Authenticator in which
the Packet Body Length field is invalid.
The protocol version number carried in the most recently received EAPOL frame.
The source MAC address carried in the most recently received EAPOL frame.
The number of EAPOL frames of any type that have been transmitted by this
Authenticator.
The number of EAP Req/Id frames that have been transmitted by this Authenticator.
The number of EAP Request frames (other than Rq/Id frames) that have been
transmitted by this Authenticator.

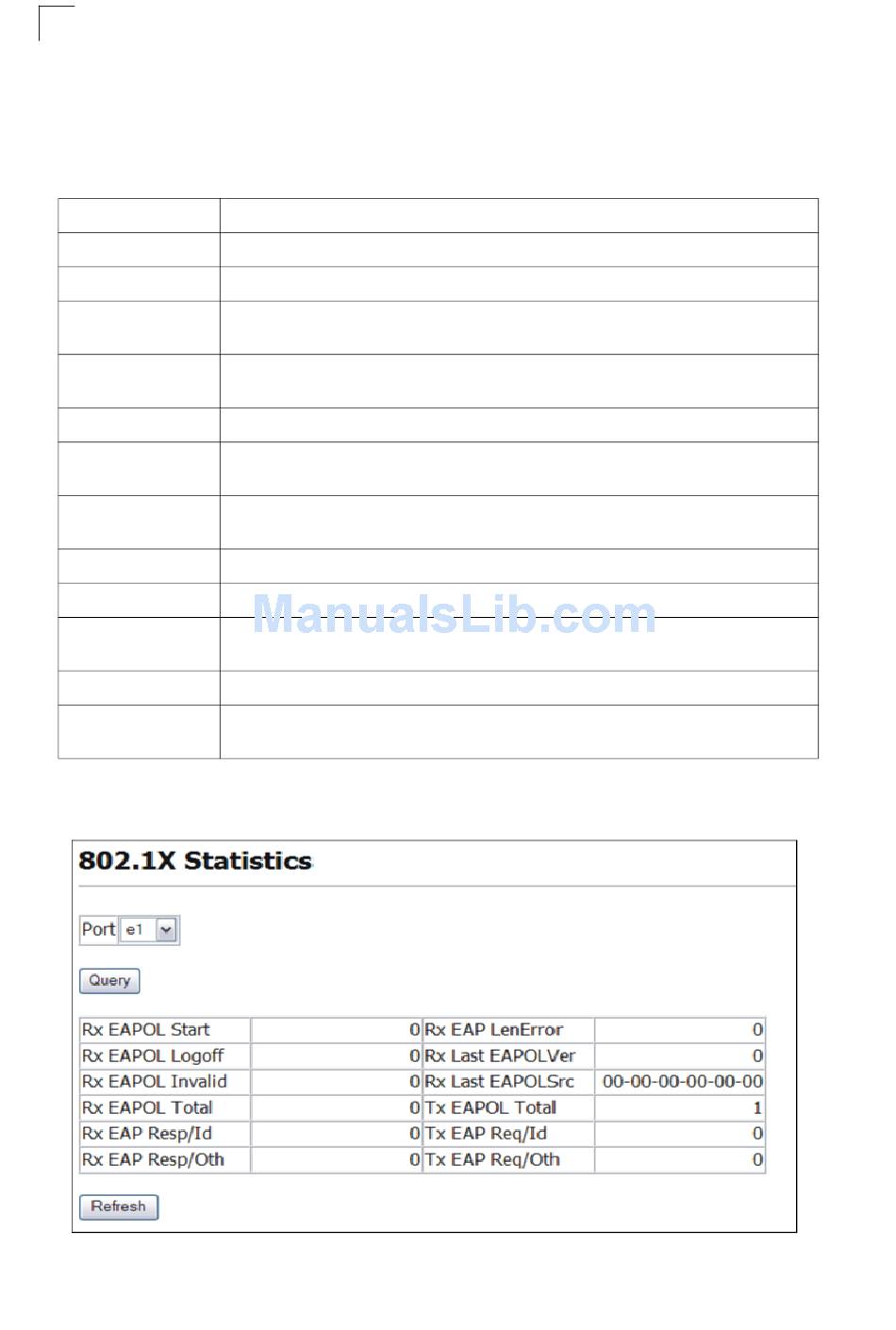

Figure 3-53 Displaying 802.1X Port Statistics
