Configuring the Switch

Displaying LACP Settings and Status for the Remote Side

You can display configuration settings and the operational state for the remote side
of an link aggregation.
Field
Partner Admin System ID
Partner Oper System ID
Partner Admin Port Number Current administrative value of the port number for the protocol Partner.
Partner Oper Port Number
Port Admin Priority
Port Oper Priority
Admin Key
Oper Key
Admin State
Oper State
Web – Click Port, LACP, Port Neighbors Information. Select a port channel to
display the corresponding information.
3-126

Table 3-10 LACP Neighbor Configuration Information

Description
LAG partner's system ID assigned by the user.
LAG partner's system ID assigned by the LACP protocol.
Operational port number assigned to this aggregation port by the port's
protocol partner.
Current administrative value of the port priority for the protocol partner.
Priority value assigned to this aggregation port by the partner.
Current administrative value of the Key for the protocol partner.
Current operational value of the Key for the protocol partner.
Administrative values of the partner's state parameters. (See preceding table.)
Operational values of the partner's state parameters. (See preceding table.)

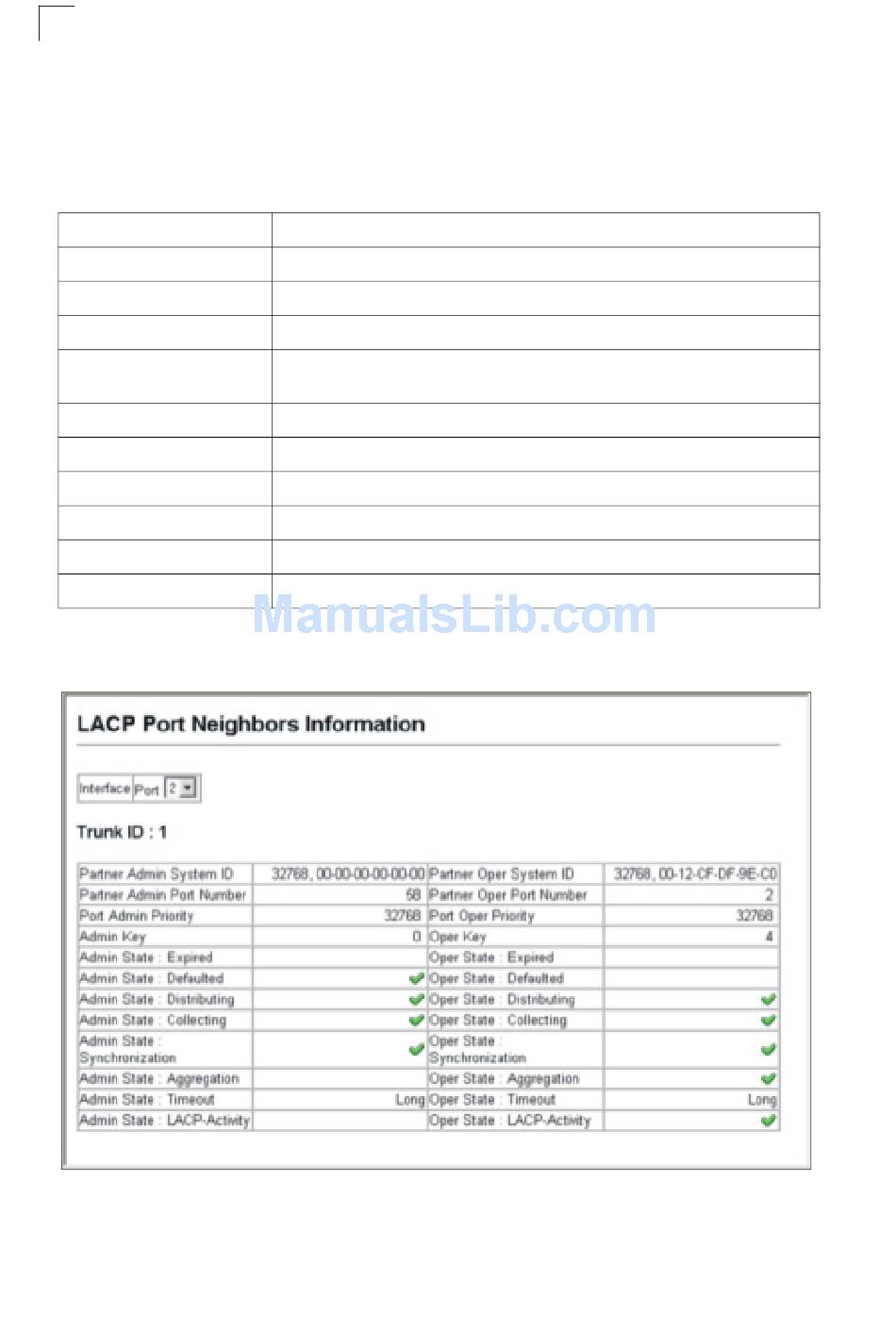

Figure 3-77 LACP - Port Neighbors Information
