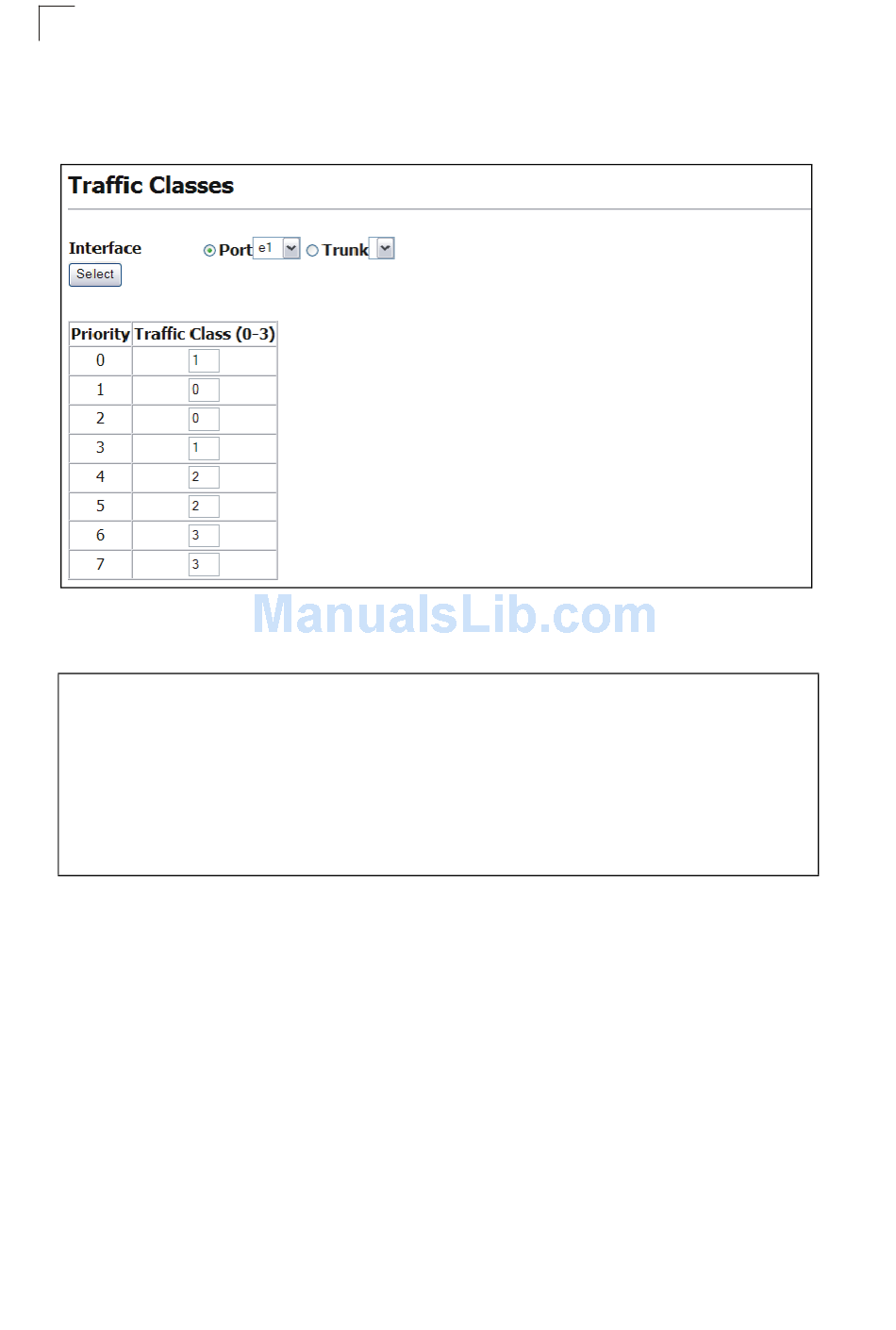

Figure 3-110 Traffic Classes - SMC Networks 8126PL2-F - annexe 1 Management Manual

3
Configuring the Switch
Web – Cli
ck Priority, Traffic Classes.
CoS values to output queues to be displayed. Assign priorities to the traffic classes
(i.e., output queues), then click Apply.
CLI – The following example shows how to change the CoS assignments.
Console(config)#interface ethernet 1/1
Console(config-if)#queue cos-map 0 0
Console(config-if)#queue cos-map 1 1
Console(config-if)#queue cos-map 2 2
Console(config-if)#end
Console#show queue cos-map ethernet 1/1
Information of Eth 1/1
CoS Value:
Priority Queue: 0 1 2 1 2 2 3 3
Console#
* Mapping specific values for CoS priorities is implemented as an interface configuration
command, but any changes will apply to the all interfaces on the switch.
3-192
Select a port or trunk for the current mapping of

Figure 3-110 Traffic Classes

0 1 2 3 4 5 6 7
4-155
4-247
4-249
