Configuration Options

Configurable parameters have a dialog box or a drop-down list. Once a configuration
change has been made on a page, be sure to click on the Apply button to confirm
the new setting. The following table summarizes the web page configuration
buttons.
Button
Revert
Apply
Help
Notes: 1.
To ensure proper screen refresh, be sure that Internet Explorer is configured
so that the setting "Check for newer versions of stored pages" reads "Every
visit to the page".
Internet Explorer 6.x and earlier: This option is available under the menu
"Tools / Internet Options / General / Temporary Internet Files / Settings".
Internet Explorer 7.x: This option is available under "Tools / Internet Options
/ General / Browsing History / Settings / Temporary Internet Files".
2.
When using Internet Explorer 5.0, you may have to manually refresh the
screen after making configuration changes by pressing the browser's refresh
button.

Panel Display

The web agent displays an image of the switch's ports. The Mode can be set to
display different information for the ports, including Active (i.e., up or down), Duplex
(i.e., half or full duplex, or Flow Control (i.e., with or without flow control). Clicking on
the image of a port opens the Port Configuration page as described on page 3-114.

Table 3-1 Configuration Options

Action
Cancels specified values and restores current values prior to pressing Apply.
Sets specified values to the system.
Links directly to webhelp.

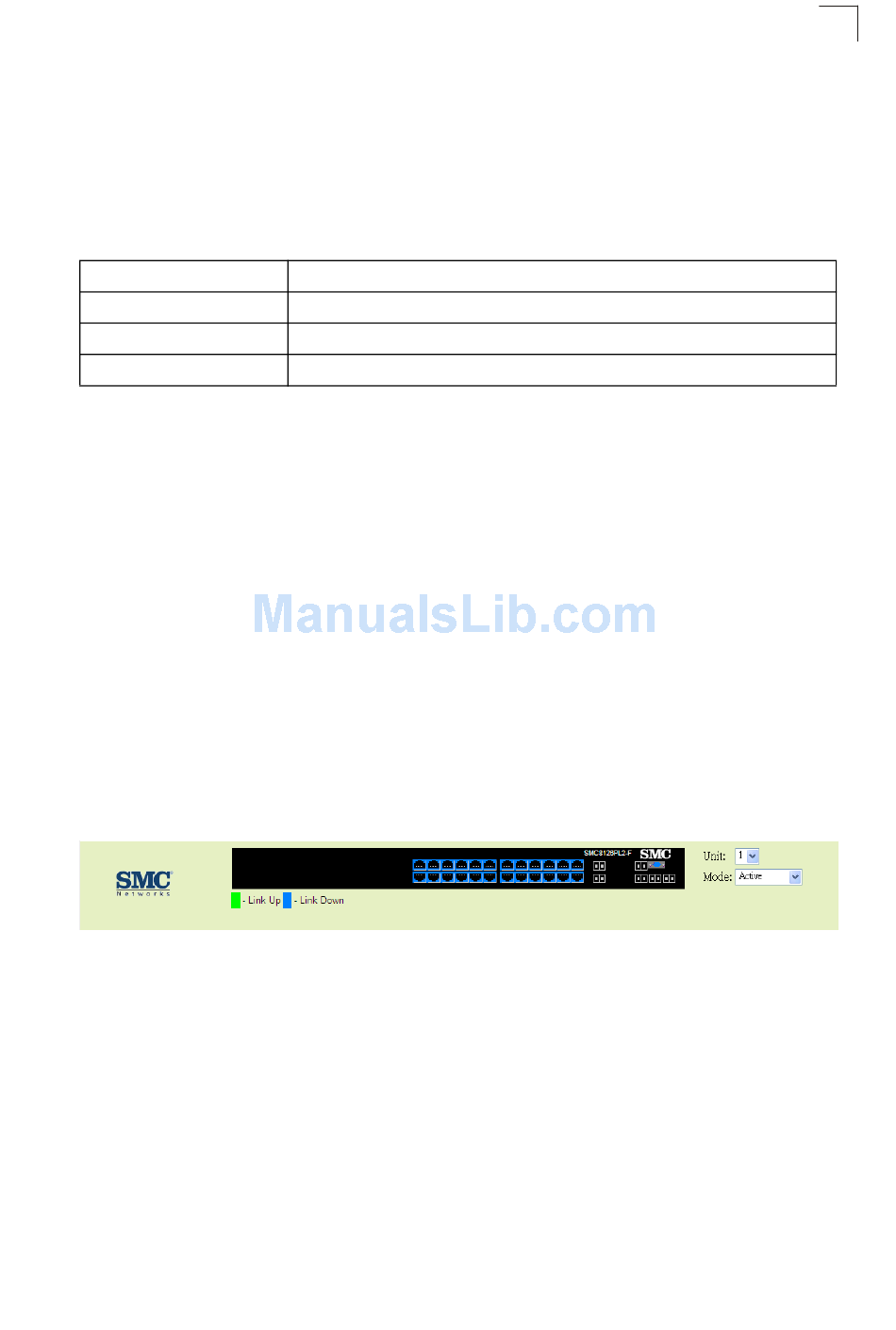

Figure 3-2 Panel Display

Navigating the Web Browser Interface
3
3-3
