Downloading Configuration Settings from a Server

You can download the configuration file under a new file name and then set it as the
startup file, or you can specify the current startup configuration file as the destination
file to directly replace it. Note that the file "Factory_Default_Config.cfg" can be
copied to the TFTP server, but cannot be used as the destination on the switch.
Web – Click System, File, Copy Operation. Select "tftp to startup-config" or "tftp to
file" and enter the IP address of the TFTP server. Specify the name of the file to
download and select a file on the switch to overwrite or specify a new file name, then
click Apply.

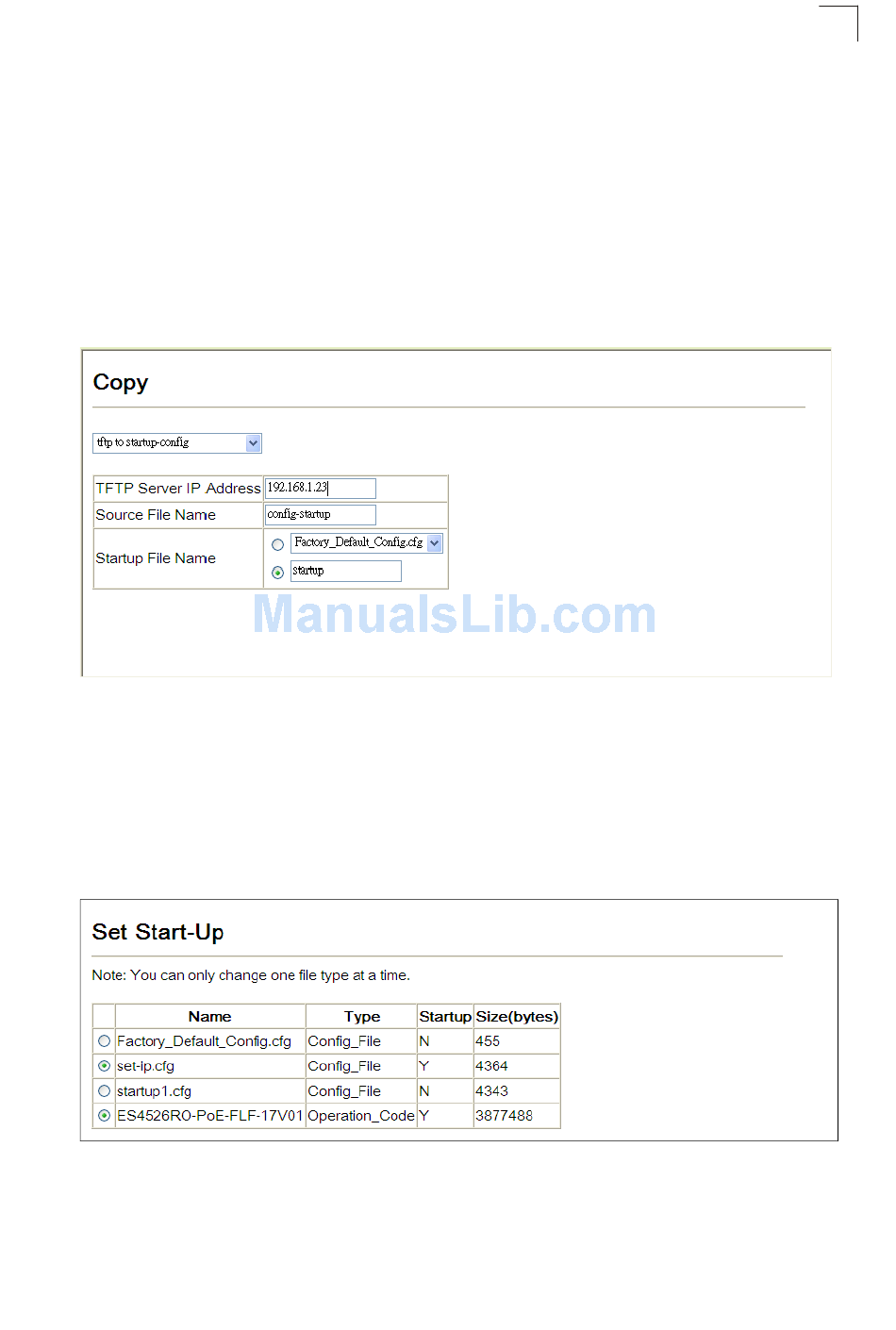

Figure 3-12 Downloading Configuration Settings for Startup

If you download to a new file name using "tftp to startup-config" or "tftp to file," the file
is automatically set as the start-up configuration file. To use the new settings, reboot
the system via the System/Reset menu.
Note:
You can also select any configuration file as the start-up configuration by using the
System/File/Set Start-Up page.

Figure 3-13 Setting the Startup Configuration Settings

Basic Configuration
3-23
3
