D Battery connection
RWARNING NEVER remove the fuse holders from the
DC power cable.
NEVER connect the transceiver directly to a 24 V battery.
DO NOT use the cigarette lighter socket for power con-
nections. (See p. 6 for details)
Attach a rubber grommet when passing the DC power cable
through a metal plate to prevent a short circuit.
• CONNECTING TO A DC POWER SOURCE
Grommet
+ red
_ black
12 V
battery
Supplied
DC power cable
Crimp
NOTE:
Use terminals for the
cable connections.
IC-2725E
−
⊕
red black
WARNING!
Fuses
NEVER
20 A
remove the
fuse holders.
12 V
Solder
QUICK REFERENCE GUIDE

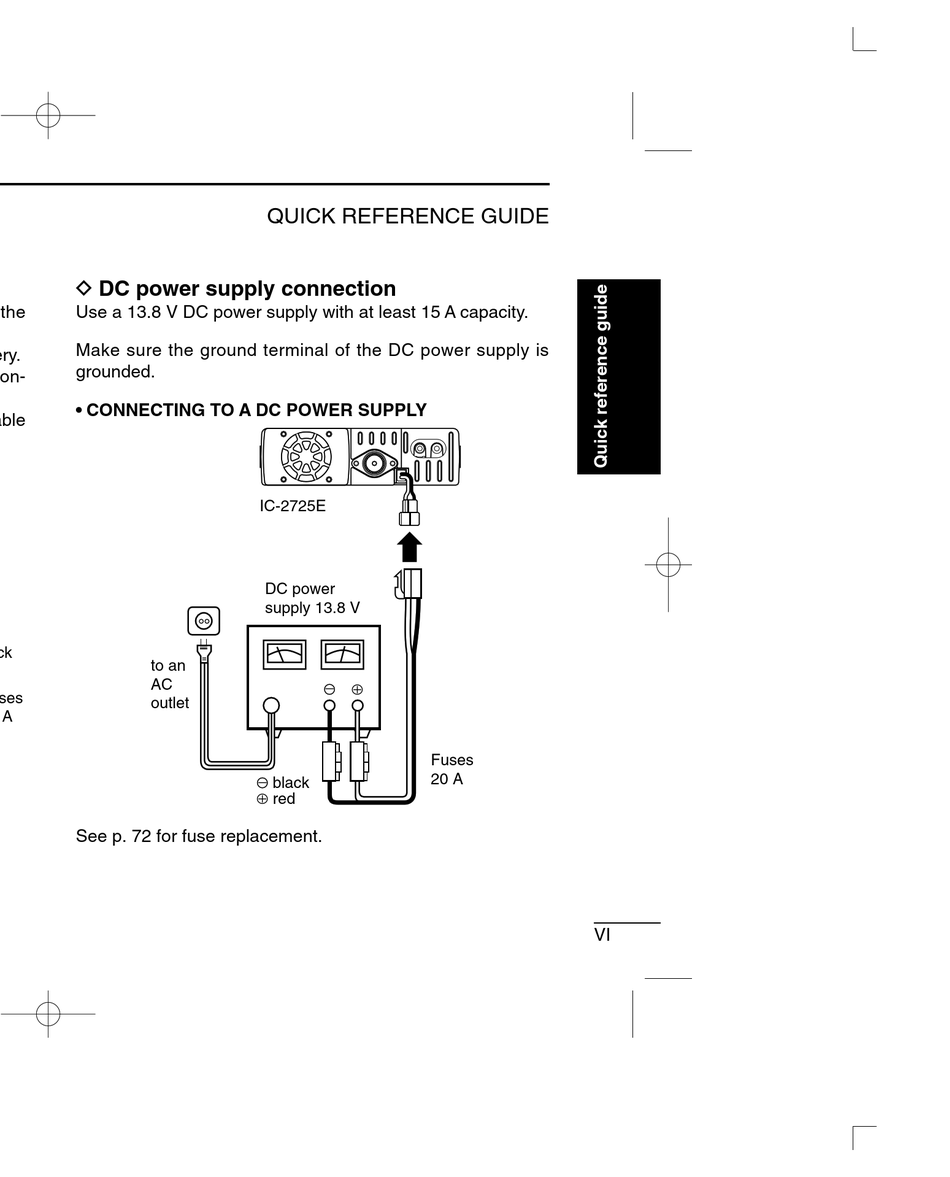

D DC power supply connection
Use a 13.8 V DC power supply with at least 15 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.
• CONNECTING TO A DC POWER SUPPLY
IC-2725E
DC power
supply 13.8 V
to an
AC
outlet
−
black
⊕
red
See p. 72 for fuse replacement.
−
⊕
Fuses
20 A
VI
