QUICK REFERENCE GUIDE
D Battery connection
➥ RWARNING NEVER remove the fuse holders from the
DC power cable.
➥ NEVER connect the transceiver directly to a 24 V battery.
➥ DO NOT use the cigarette lighter socket for power con-
nections.
(See p. 10 for details)
Use a rubber grommet when passing the DC power cable
through a metal plate to prevent a short circuit.
VII

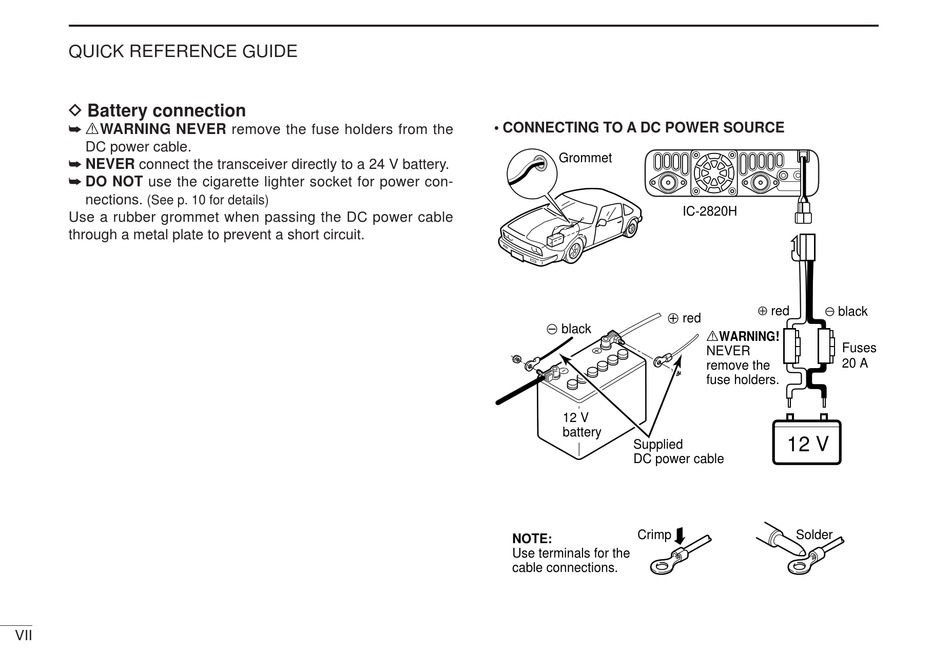

• CONNECTING TO A DC POWER SOURCE
Grommet
+ red
_ black
12 V
battery
Supplied
DC power cable
Crimp
NOTE:
Use terminals for the
cable connections.
IC-2820H
−
⊕
red black
RWARNING!
Fuses
NEVER
20 A
remove the
fuse holders.
12 V
Solder
