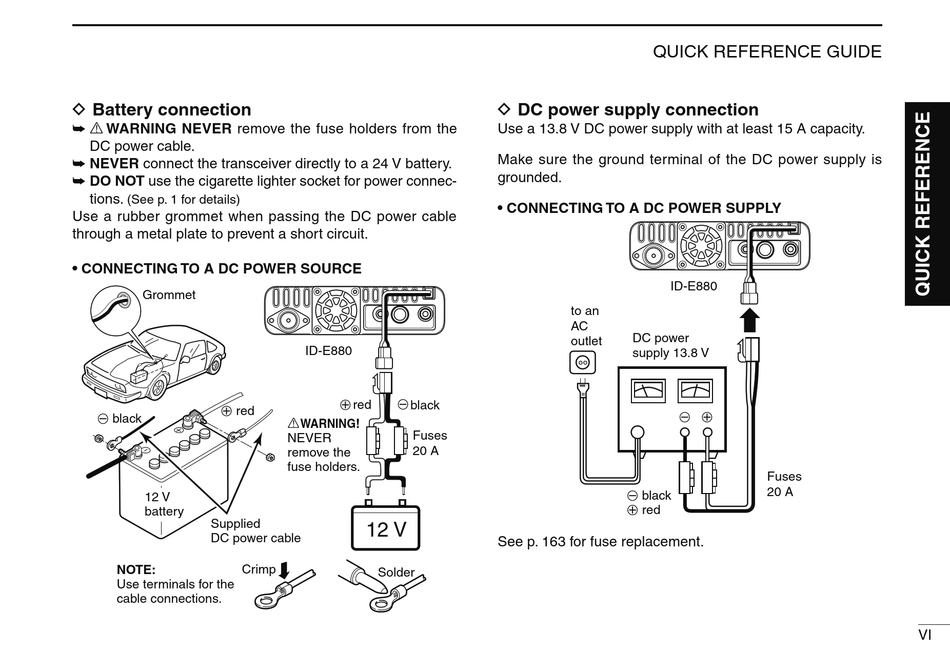

D Battery connection
R WARNING NEVER remove the fuse holders from the
DC power cable.
NEVER connect the transceiver directly to a 24 V battery.
DO NOT use the cigarette lighter socket for power connec-
tions.
(See p. 1 for details)
Use a rubber grommet when passing the DC power cable
through a metal plate to prevent a short circuit.
• CONNECTING TO A DC POWER SOURCE
Grommet
+ red
_ black
12 V
battery
Supplied
DC power cable
Crimp
NOTE:
Use terminals for the
cable connections.
ID-E880
+
_
red
black
RWARNING!
Fuses
NEVER
20 A
remove the
fuse holders.
12 V
Solder
QUICK REFERENCE GUIDE
D DC power supply connection
Use a 13.8 V DC power supply with at least 15 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.
• CONNECTING TO A DC POWER SUPPLY
ID-E880
to an
AC
DC power
outlet
supply 13.8 V
_ black
+ red
See p. 163 for fuse replacement.
_
+
Fuses
20 A
VI
