Battery Connection; Dc Power Supply Connection - Icom IC-440 Instruction Manual

1
ACCESSORIES AND CONNECTION

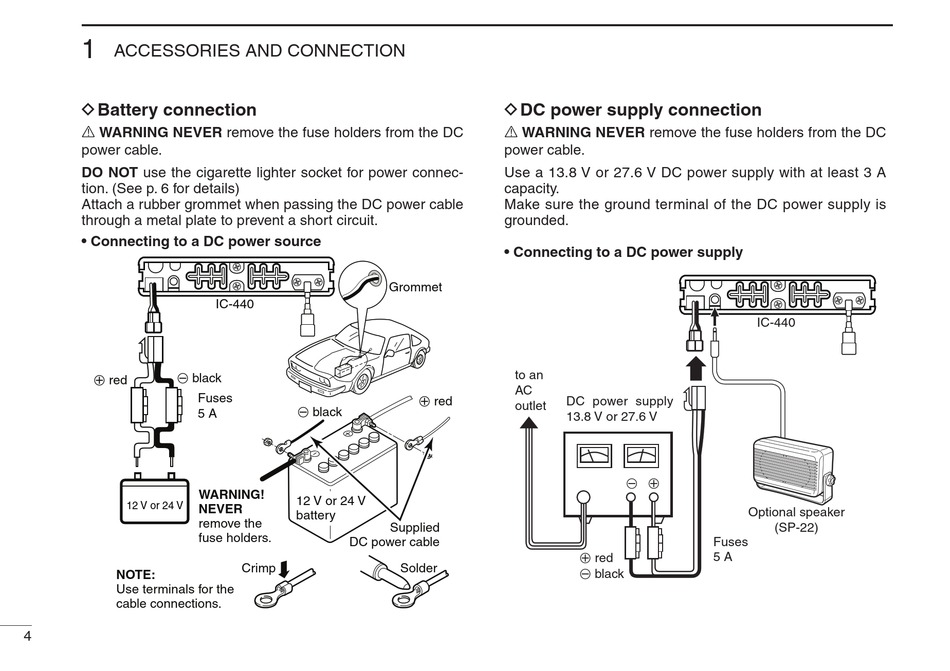

D Battery connection
R WARNING NEVER remove the fuse holders from the DC
power cable.
DO NOT use the cigarette lighter socket for power connec-
tion. (See p. 6 for details)
Attach a rubber grommet when passing the DC power cable
through a metal plate to prevent a short circuit.
• Connecting to a DC power source
_ black
+ red
Fuses
5 A
WARNING!
12 V or 24 V
NEVER
remove the
fuse holders.
NOTE:
Use terminals for the
cable connections.
4
Grommet
IC-440
_ black
12 V or 24 V
battery
Supplied
DC power cable
Crimp
D DC power supply connection
R WARNING NEVER remove the fuse holders from the DC
power cable.
Use a 13.8 V or 27.6 V DC power supply with at least 3 A
capacity.
Make sure the ground terminal of the DC power supply is
grounded.
• Connecting to a DC power supply
to an
AC
+ red
DC power supply
outlet
13.8 V or 27.6 V
+ red
Solder
_ black
IC-440
_ +
Optional speaker
(SP-22)
Fuses
5 A
