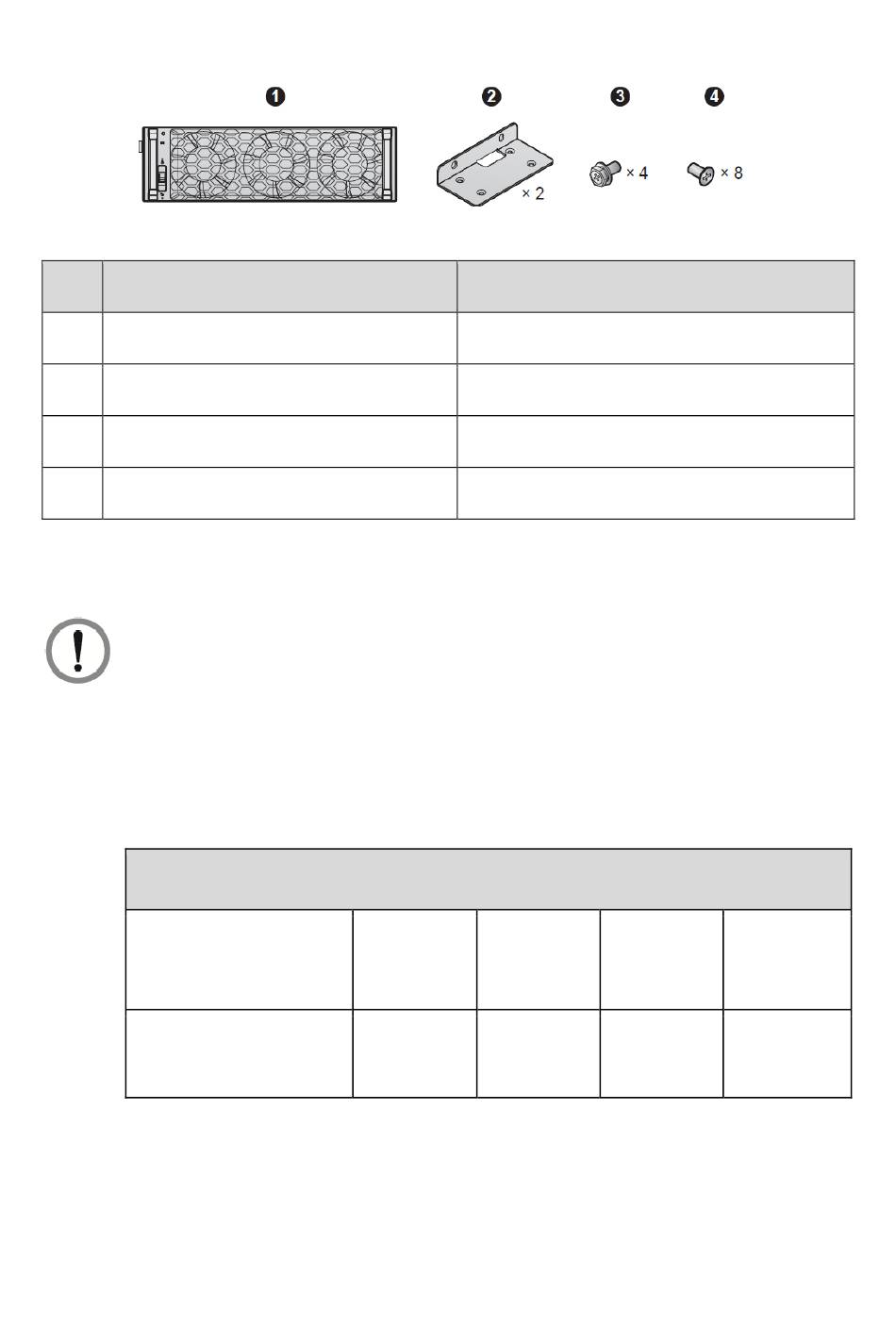

Please see the table below for the power module's packing list.
Table 5-5: Power Module Package List
No.
Power Module
Bracket Ear
M6 Screw
M4 Screw
5.8.1

Power Module Installation

WARNING: 
1. Only qualified service personnel can perform the following power module
installation procedures.
2. The power module is heavy (> 36 kg (79.4 lb)). At least two people are
required for handling.
3. Please follow your UPS capacity to install the correct number of power
modules. Please refer to the table below.
UPS Capacity
Power Module
4. Please install the power modules from the bottom layer of the power
module slot to the top layer of the power module slot in sequence.
Delta UPS DPH 50-200kVA
Item
50kVA/
50kW
Q'ty
1 PC
2 PCS
4 PCS
8 PCS
DPH Series
100kVA/
100kW
1
2
Q'ty
150kVA/
200kVA/
150kW
200kW
3
4
80
