Power Module (Optional) - Delta Modulon DPH Series User Manual

The STS module's LED indicator shows its operation status. Please refer to the
following table.
LED Indicator
OFF
ON (yellow)
Flashing (yellow)_ on for 0.3
second and off for 3 seconds
NOTE:
In bypass mode, if you turn the STS module's switch to the lower position
( ), the STS module will shut down, and its output and its LED indicator will
be off.
5.8

Power Module (Optional)

The power module is optional. It is hot swappable and each capacity is 50kVA/ 50kW.
Handle
The STS module is OFF.
The STS module is working in bypass mode,
ECO mode, or energy recycle mode.
The STS module is abnormal.
LED Indicator
Switch
Fan

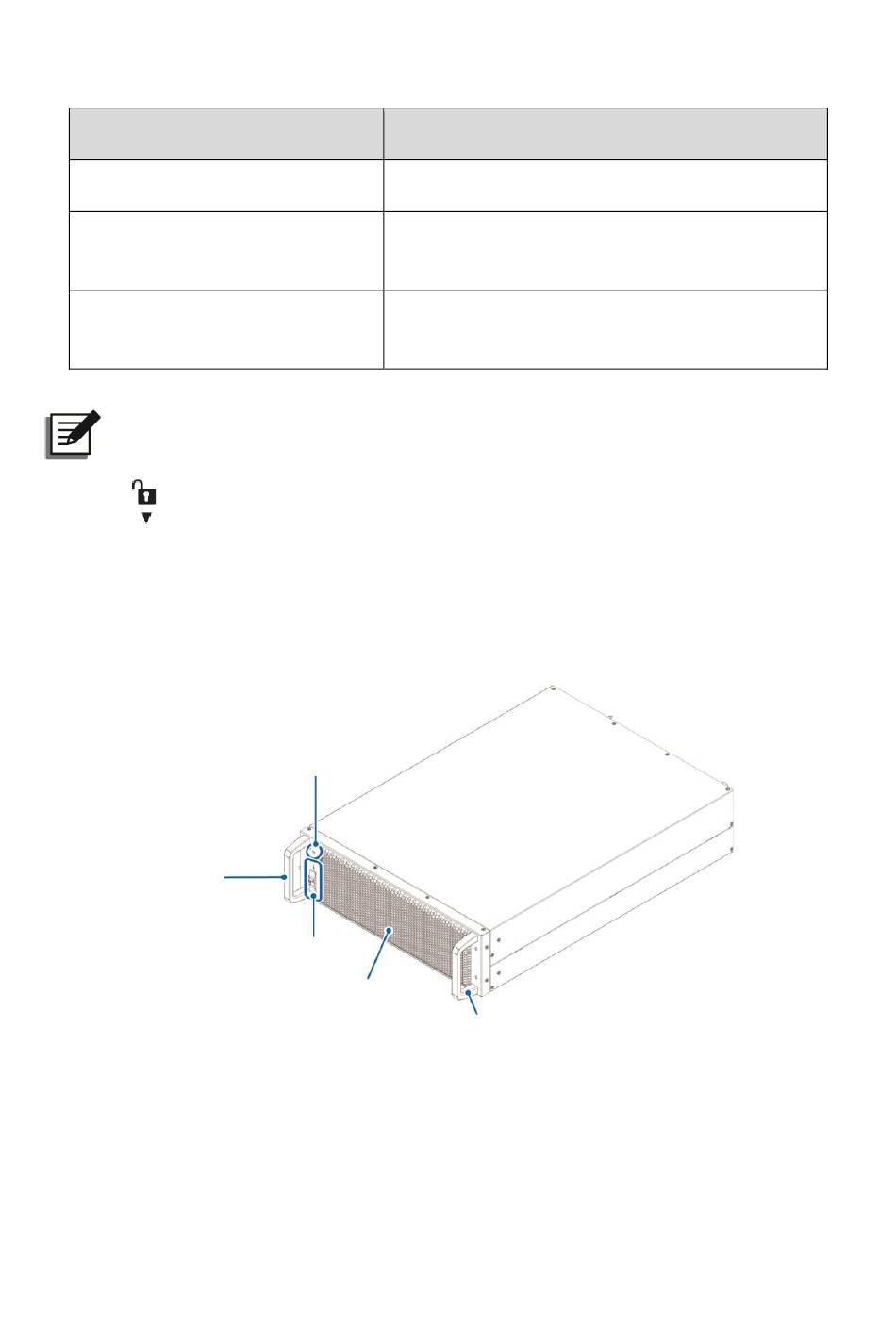

Figure 5-33: 50kW Power Module (optional)
Description
Handle
79
