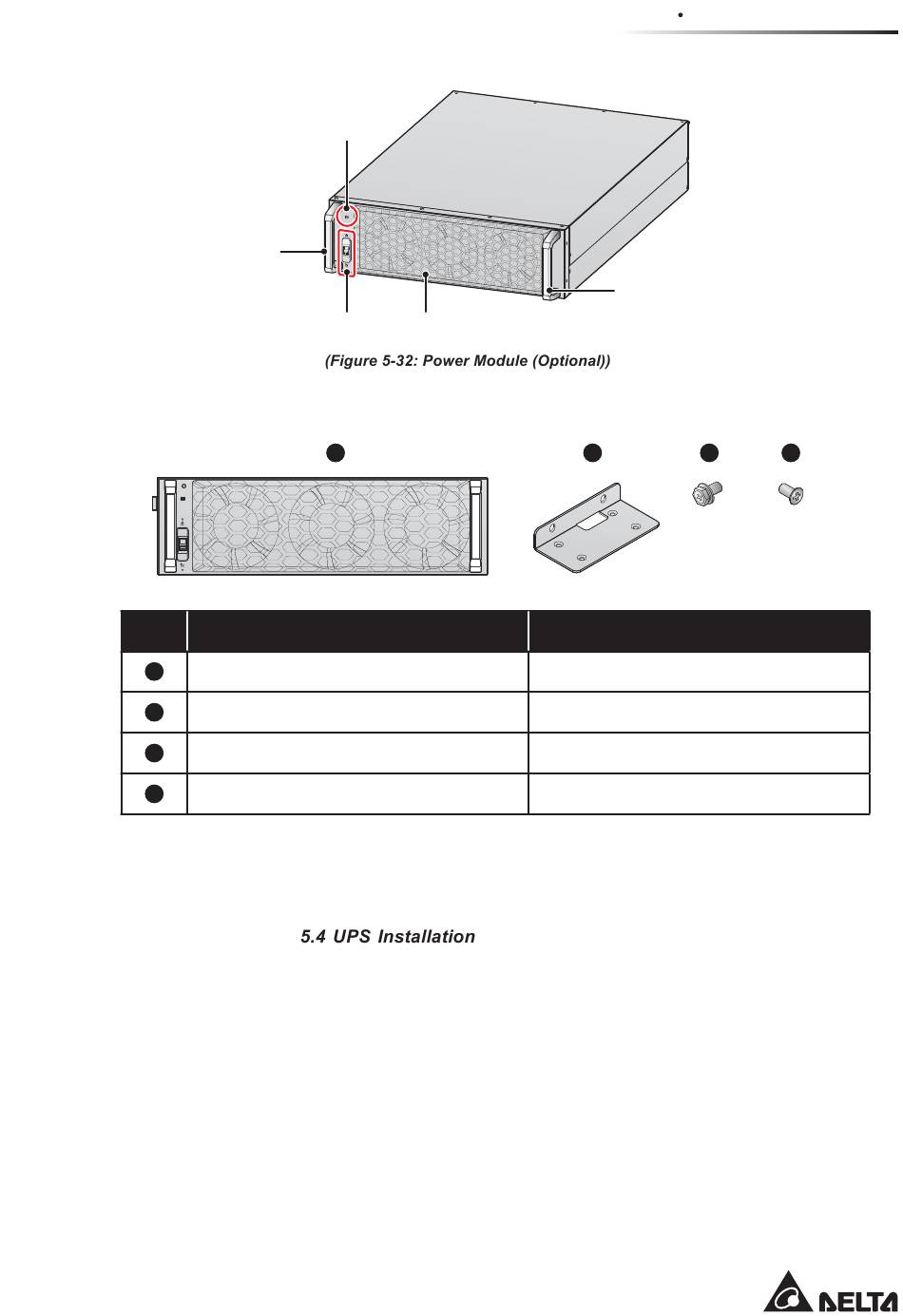

Please see the table below for the power module's packing list.
No.
1
2
3
4

5.8.1 Power Module Installation

After firmly installing the UPS on the designated installation area according to the
instructions stated in
power module (optional) into the UPS.
LED Indicator
Handle
Switch
1
Item
Power Module
Bracket Ear
M6 Screw
M4 Screw
Fans
, continue with the following steps to install the
5-37
5 Installation and Wiring
Handle
2 3
× 4
× 2
Q'ty
1 PC
2 PCS
4 PCS
8 PCS
4
× 8
