Delta Modulon DPH Series User Manual page 77

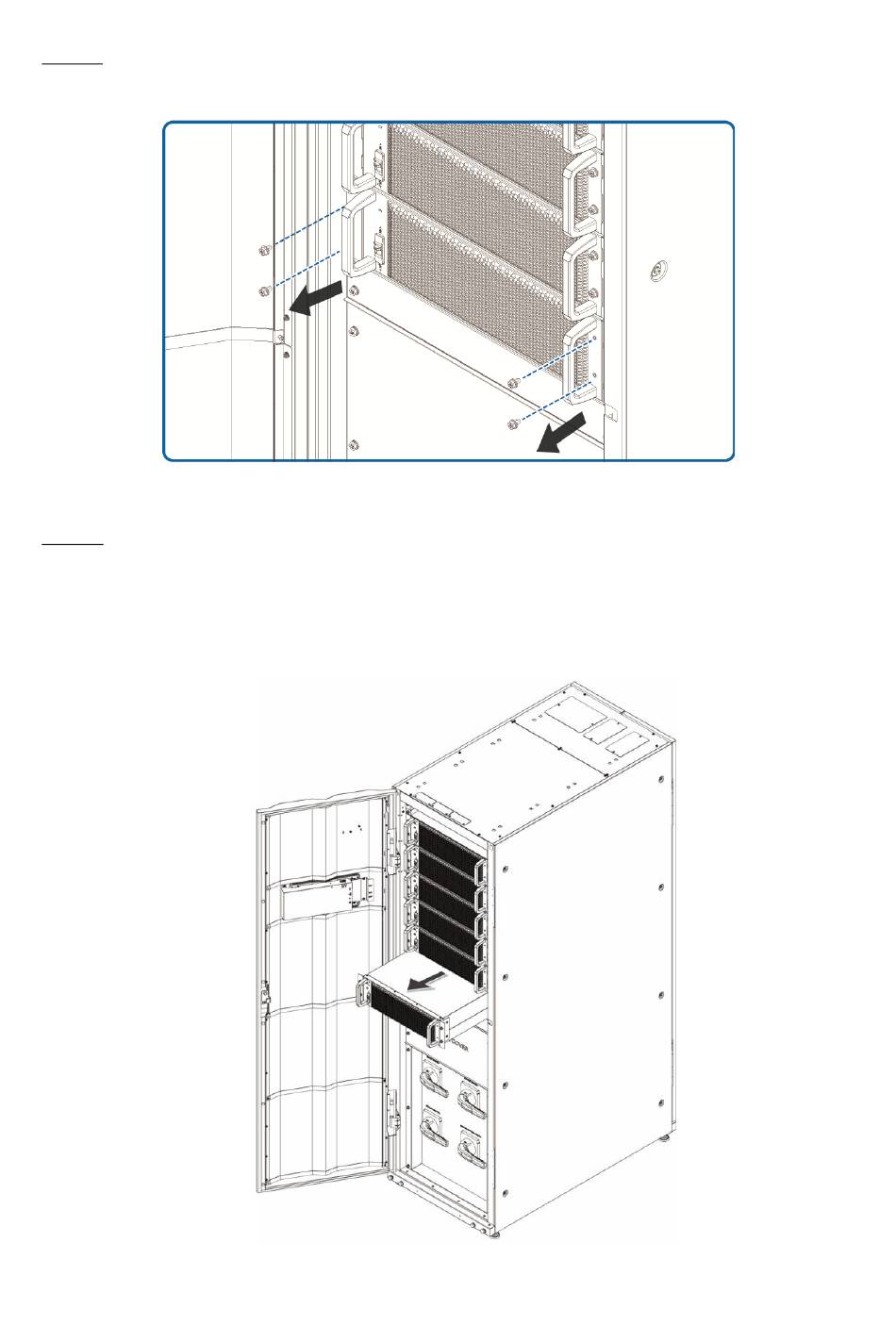

Step 2
Figure 5-29
Unscrew the four screws shown in .
Figure 5-29: Remove the Four Screws
Step 3
Figure 5-30
Pull out the STS module from the slot (two people are required) (see ).
Figure 5-31
When the STS module cannot be pulled out any more, press the lock (see )
on the left side of the STS module in order to continuously pull out the module from
the UPS cabinet.
Figure 5-30: Remove the STS Module
77
