Step 1
Confirm that the power module's switch is in the lower position (

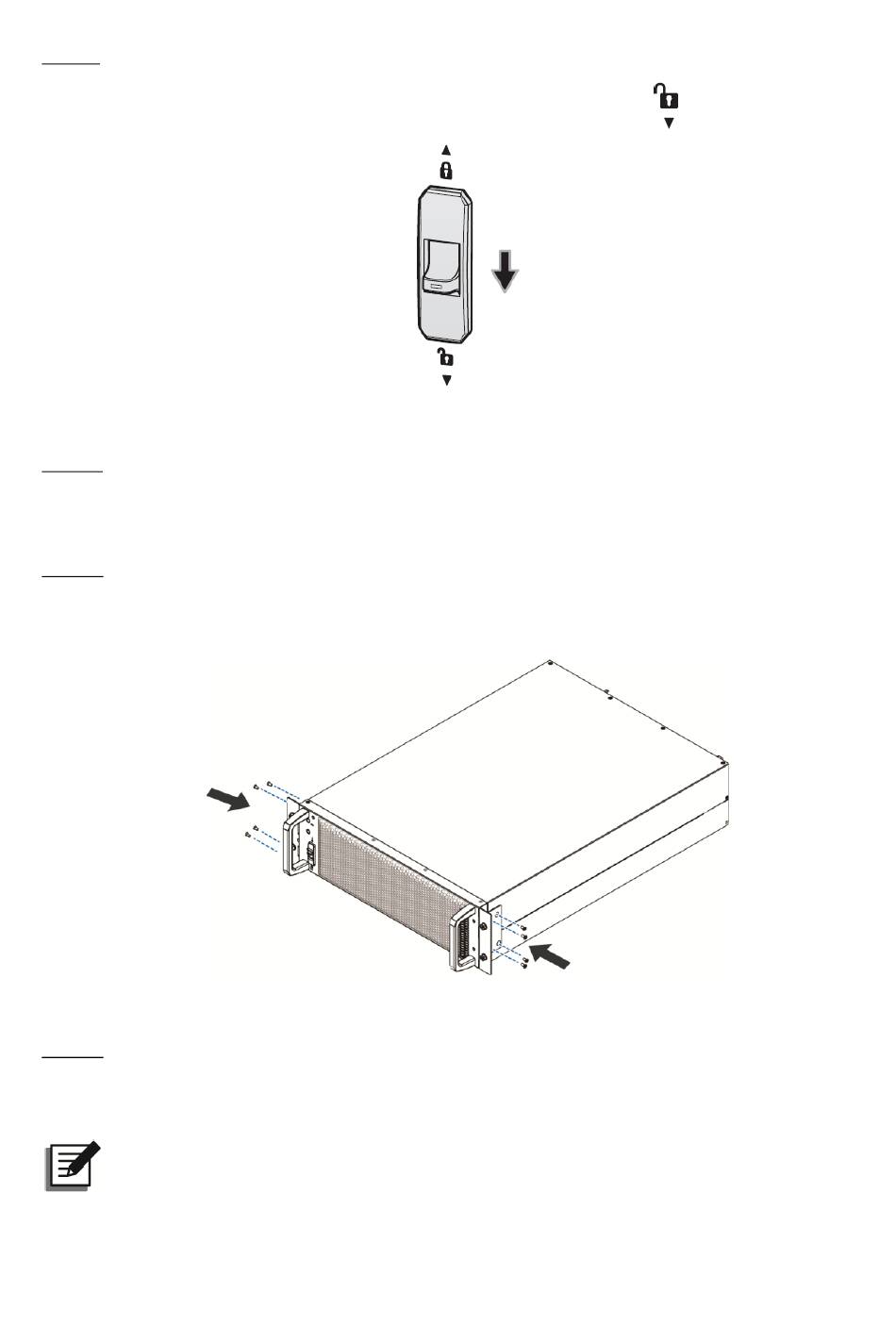

Figure 5-34: Confirm the Power Module's Switch in the Lower Position
Step 2
Take out the two bracket ears, four M6 screws and eight M4 screws from the power
module's package.
Step 3
Use the provided eight M4 screws to fix the provided two bracket ears on the two
sides of the power module. Please refer to
Step 4
Insert the power module into the unoccupied power module slot until it snaps into
place. Two people are required.
NOTE:
Please install the power modules from the bottom layer of the power module
slot to the top layer of the power module slot in sequence.
Figure 5-35
Figure 5-35: Install the Two Bracket Ears
).
.
