• The UPS allows cable entry from the top or bottom. Please leave adequate space
on the top or at the bottom of the UPS to allow cable entry.
• Ensure that the installation area is spacious enough for ventilation, wiring and
maintenance. Install the external battery cabinet next to the UPS. For the UPS
clearance, we suggest that you:
1. Keep a distance of 1500 mm (59.06") from the front of the UPS for maintenance
and ventilation.
2. Keep a distance of at least 1000 mm (39.4") from the rear of the UPS for
ventilation.
3. Keep a distance of 1000 mm (39.4") from the top of the UPS for maintenance
and wiring.
NOTE:
Dust filters have been installed on the inner side of the UPS's front doors
before shipment.
Air Inlet
Delta UPS DPH 50-200kVA

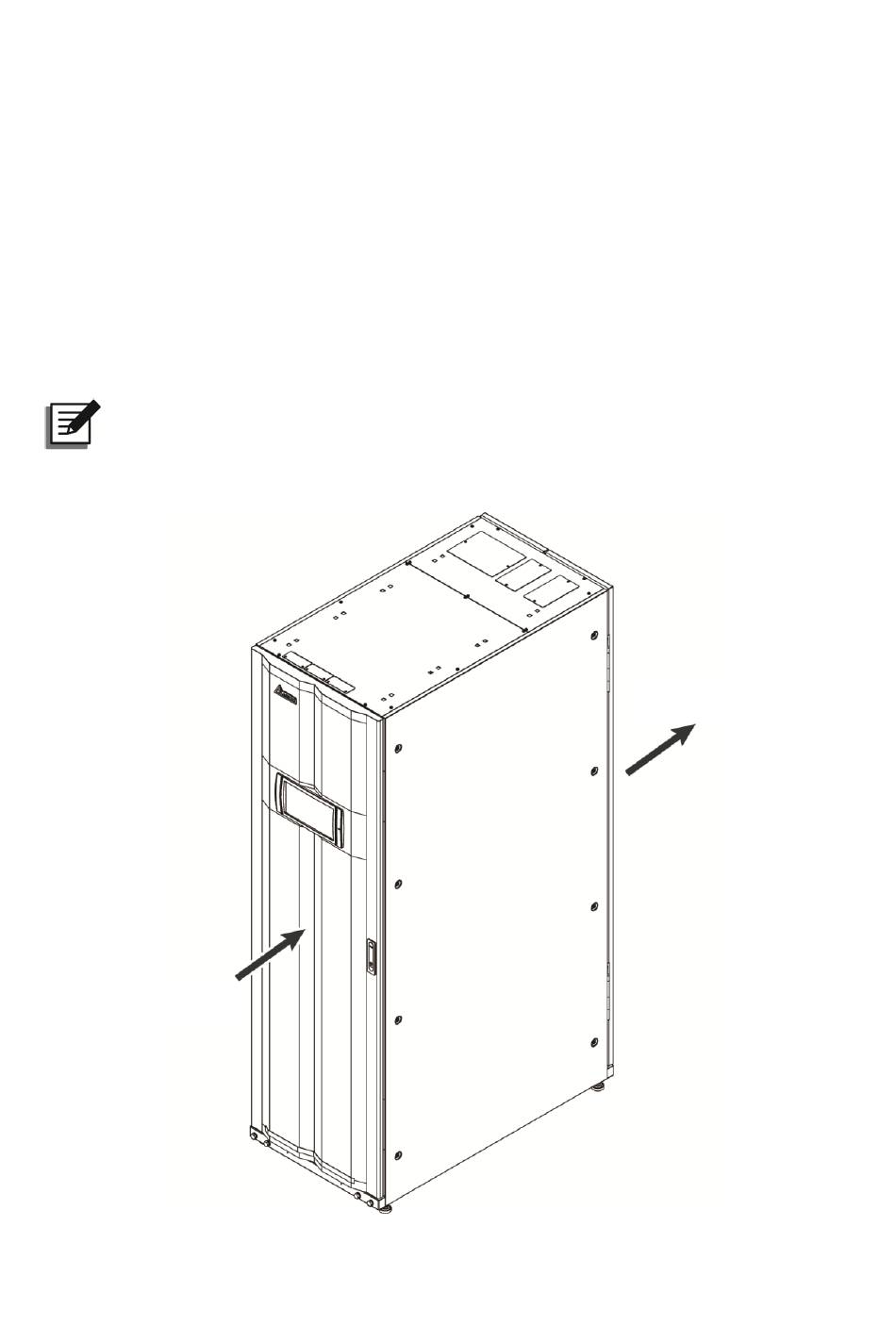

Figure 5-1: Air Inlet & Outlet Direction
Air Outlet
