Delta Modulon DPH Series User Manual page 54

Step 3
A. For dual input and top wiring application, follow
four copper bars in the designated areas. Please secure the eight nuts tightly.
x 4
Cooper Bar
Install the Four
Cooper Bars

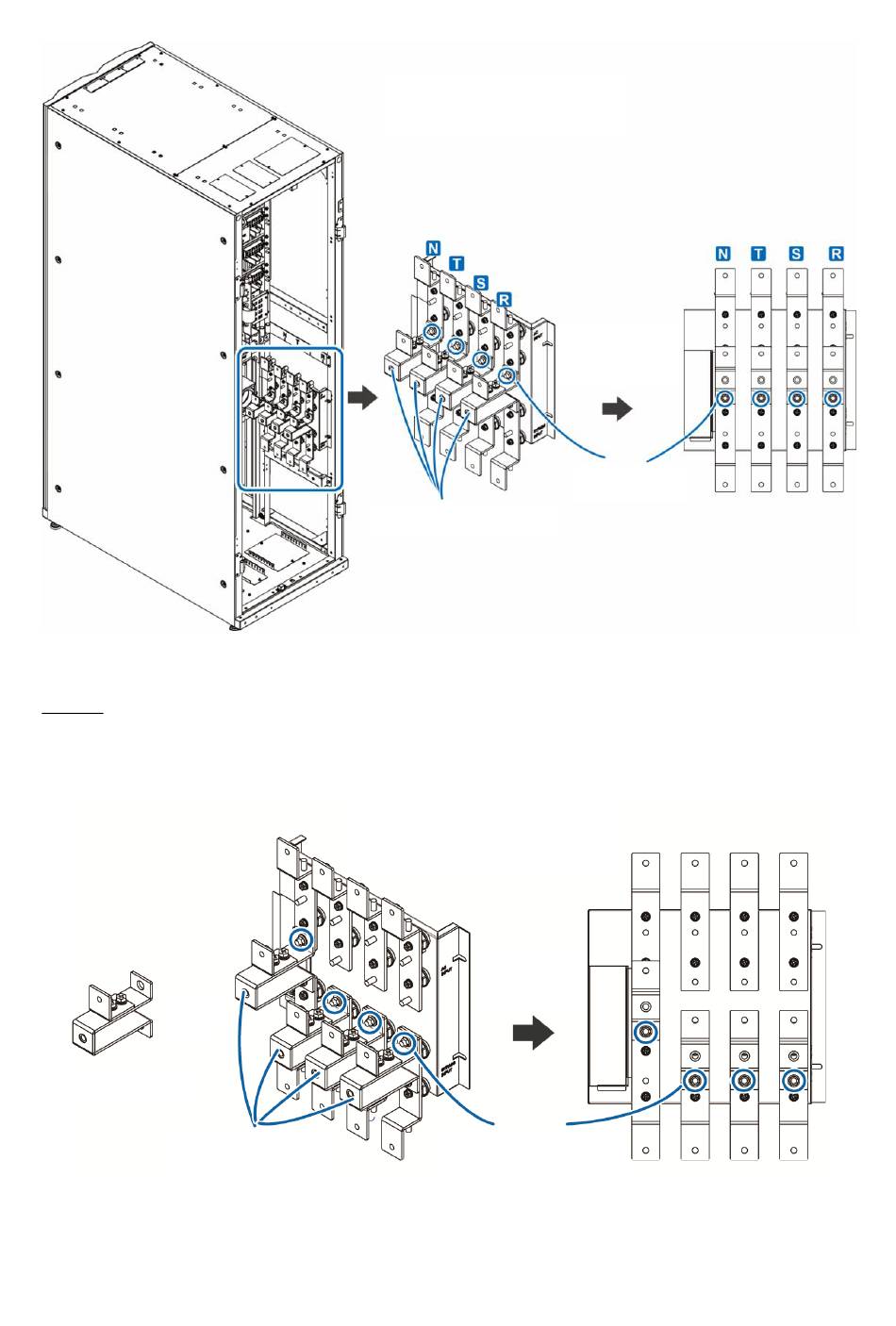

Figure 5-7: Install the Four Copper Bars and Secure the Eight Nuts_
Delta UPS DPH 50-200kVA
(Rear View after
Rear Door Removal)
Four Copper Bars
Figure 5-6: Remove the four Cooper Bars
Tightening Torque=150 ± 10
Kgf-cm (130.2 ± 8.7Ib-in)
Secure the Eight
Nuts Tightly
for Dual Input & Top Wiring Application
Different
Angle
Eight Nuts
Figure 5-7
to install the removed
Different
Angle
54
