Display Port; Repo Dry Contacts - Delta Modulon DPH Series User Manual

No.
System Control Card
❺
Auxiliary Power Card
❻
4.1.1

Display Port

Before shipment, the display port has been connected to the 10" touch panel with the
designated cable in Delta factory.
4.1.2

REPO Dry Contacts

Connect the REPO dry contacts to a user-supplied switch and you can remotely shut
down the UPS when an emergency occurs. The REPO dry contacts provide normally
open (NO) and normally closed (NC) these two options for use.
NOTE:
To enable the normally closed (NC) function, please take out the dry contact
card and remove its Jump CNR3 before you turn on the UPS.
Item

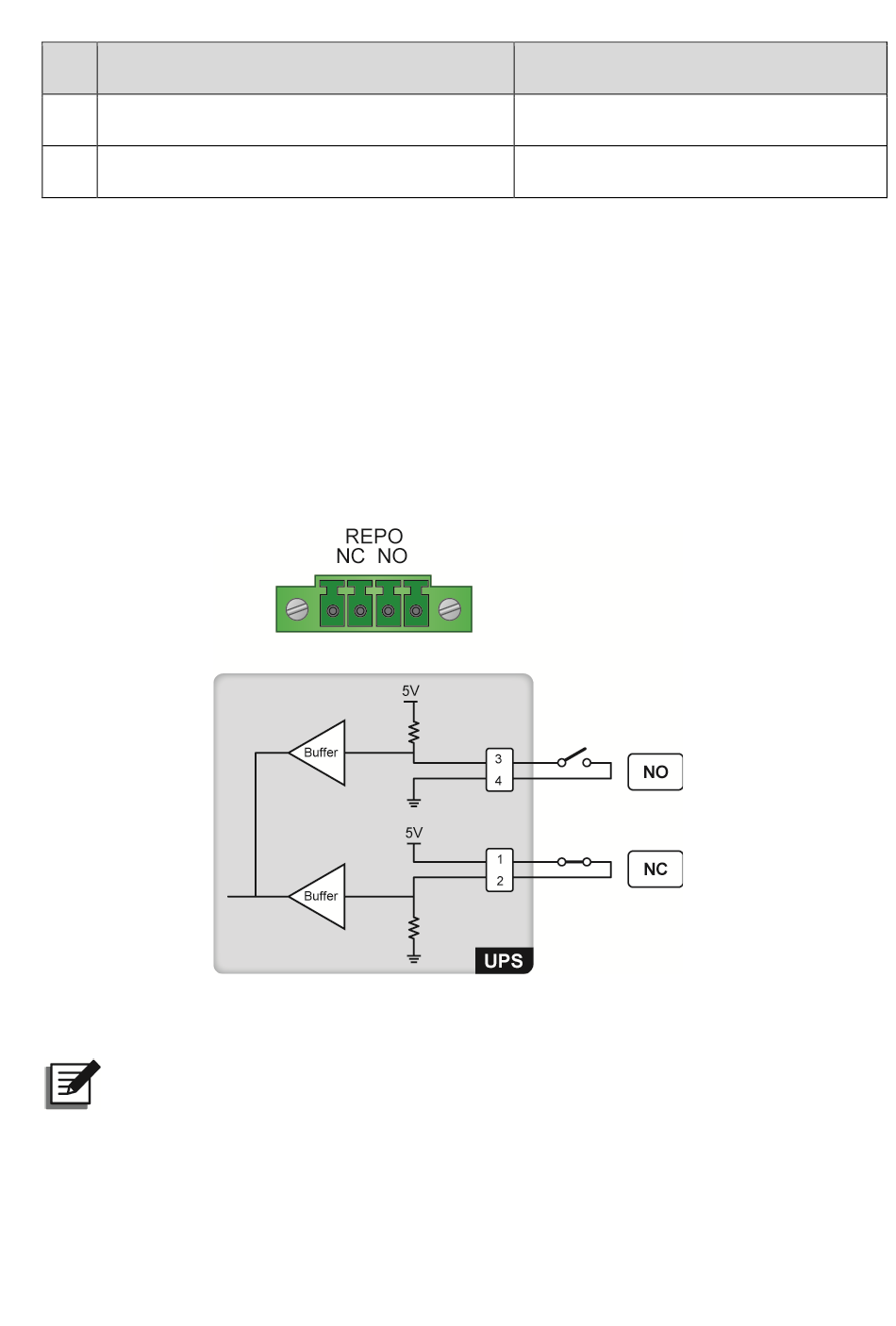

Figure 4-2: REPO Dry Contacts & Schematic
200kVA
1 PC
2 PCS
29
