Delta Modulon DPH Series User Manual page 17

Three-phase, 380/ 400/ 415 vac 50-200kva
Hide thumbs Also See for Modulon DPH Series:
Table of Contents

Advertisement

Communication Interfaces

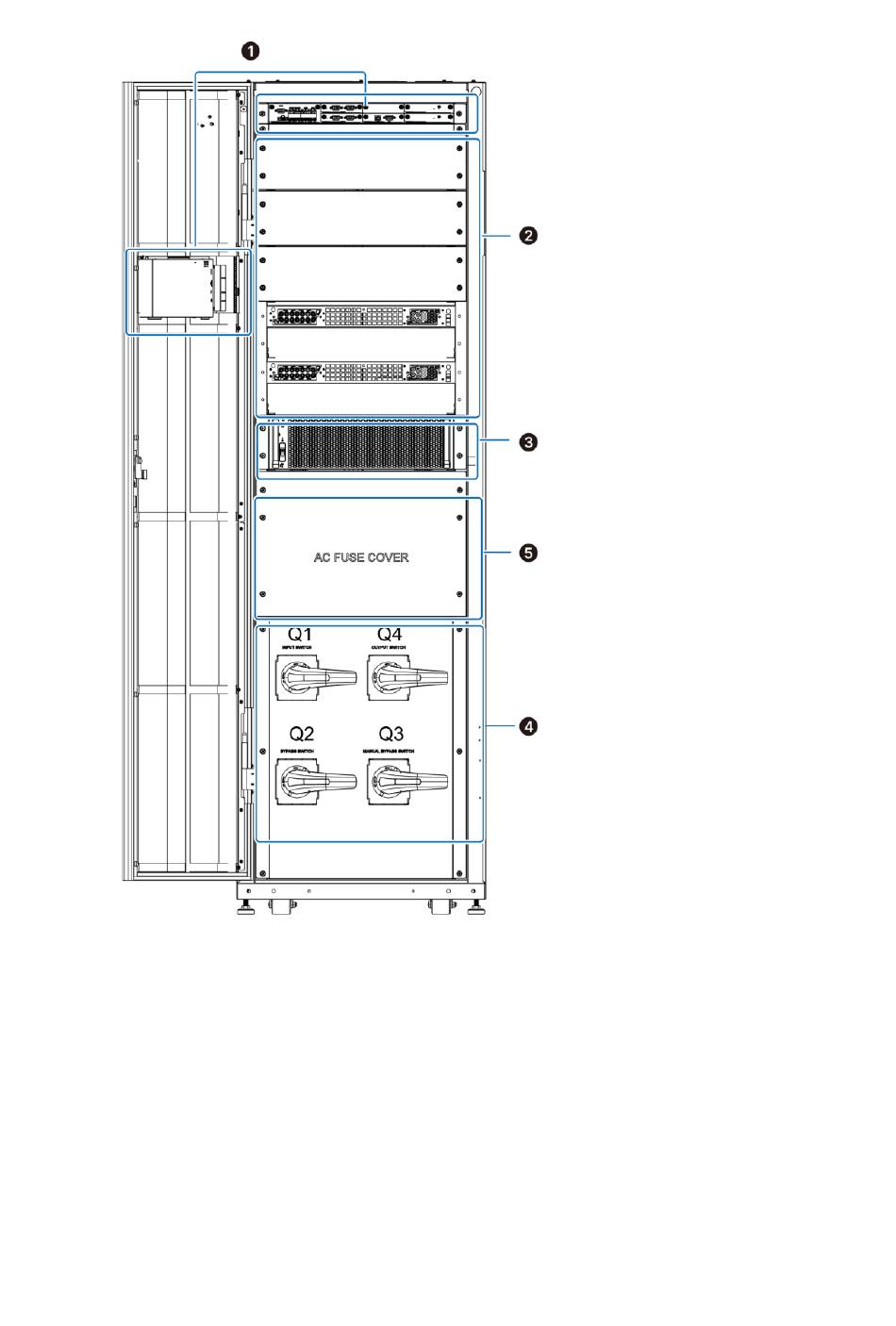

Figure 2-4: Internal View
Power Module Slot x 5
(Only the Top Three Slots
Have Covers)
STS Module
AC Fuse
(For Input/ Bypass/ Output)
Input Breaker (Q1)
Bypass Breaker (Q2)
Manual Bypass Breaker (Q3)
Output Breaker (Q4)
17
