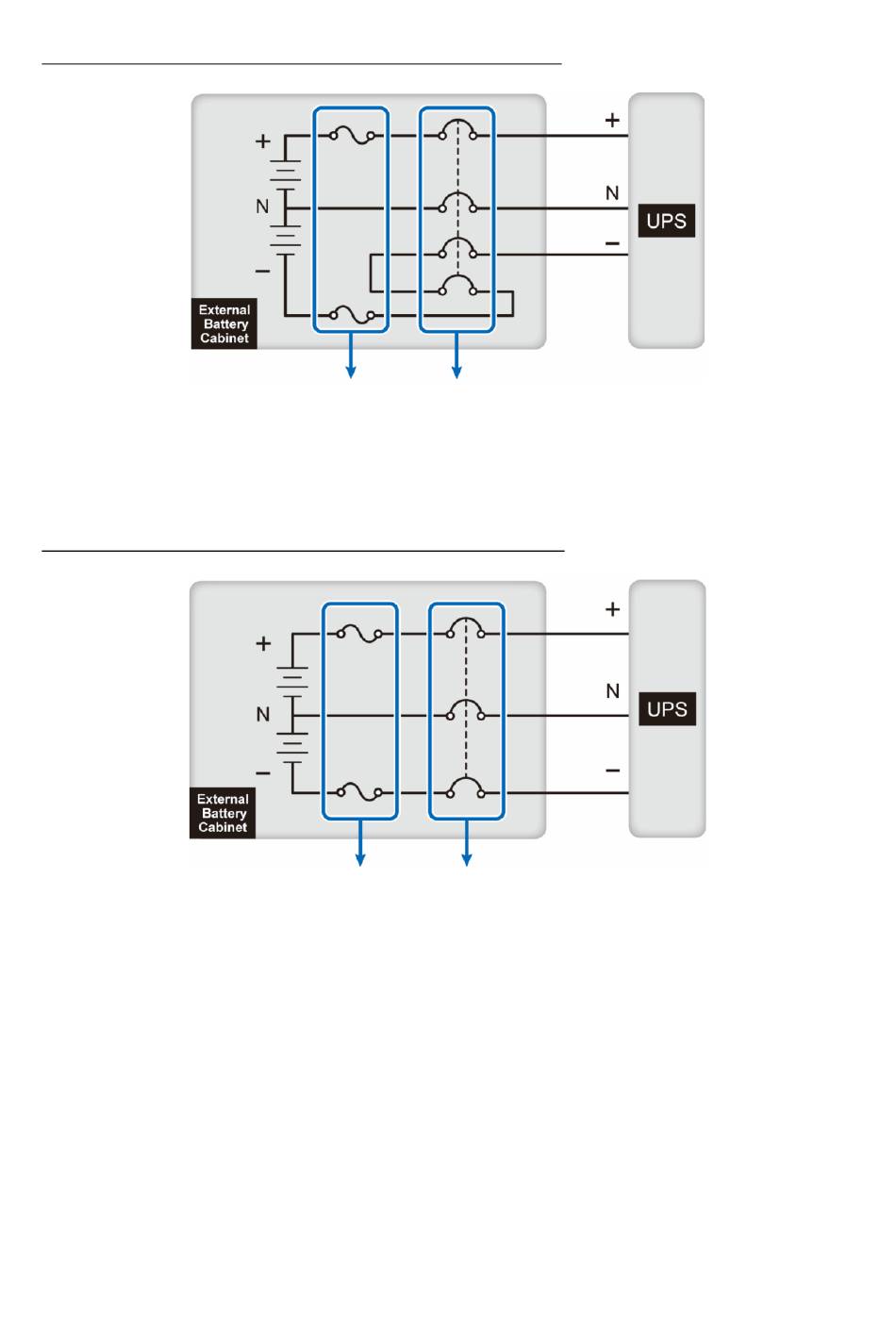

External Battery Cabinet's Protective Device (Option 1)
Figure 5-17: Installation of a 4-Pole DC Circuit Breaker or DC Isolated Switch
External Battery Cabinet's Protective Device (Option 2)
Figure 5-18: Installation of a 3-Pole DC Circuit Breaker or DC Isolated Switch
4-Pole DC Circuit Breaker
DC Fuses
or DC Isolated Switch
Connected in Series with a DC Fuse
3-Pole DC Circuit Breaker
DC Fuses
or DC Isolated Switch
Connected in Series with a DC Fuse
69
