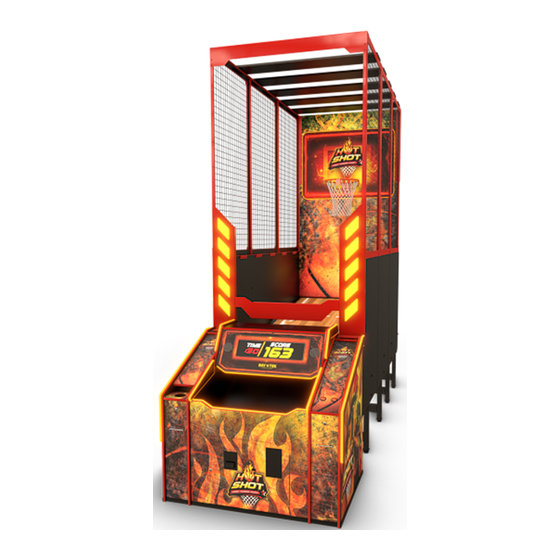

Bay-Tek HOT SHOT FREE THROW FURY Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
PLACE SERIAL NUMBER LABEL HERE

Advertisement

Table of Contents
loading

Related Manuals for Bay-Tek HOT SHOT FREE THROW FURY

Summary of Contents for Bay-Tek HOT SHOT FREE THROW FURY

  • Page 1 SERVICE MANUAL PLACE SERIAL NUMBER LABEL HERE...

  • Page 2: Factory Contact Information

    FACTORY CONTACT INFORMATION BAY TEK ENTERTAINMENT Pulaski Industrial Park 1077 East Glenbrook Drive Pulaski, WI 54162 USA SIGN UP TO RECEIVE OUR E-MAILS! Stay up to date on the latest game information, new products launches, early notification of parts specials, updates of retro fit parts, software upgrades, best practices and more! Visit baytekent.com and enter your email to sign up! You can also register your new game at baytekent.com/register SALES...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS FACTORY CONTACT INFORMATION ……..…………………………. 2 TABLE OF CONTENTS...……………………………………………….. 3 WELCOME TO HOT SHOT 2023 ………...……………..……………. 4 SAFETY PRECAUTIONS ……………………………………………… GAME SPECIFICATIONS ……………………………………………… GAME SET UP ………………………………………………………. 6 - 39 CARD SWIPE INSTALLATION ……………………………………….. 40 HOW TO PLAY ……………………..…………………………………… 41 MAIN MENU FUNCTIONS ………………………..……………….

  • Page 4: Welcome To Hot Shot 2023

    WELCOME TO HOT SHOT 2023 Congratulations on your purchase! Please take a moment to read through this manual and be sure to contact us if you have any questions, or would like more information. Thank you for your purchase! Your business is important to us and we hope you enjoy this game as much as we do! Please inspect the game for any damaged, loose, or missing parts.

  • Page 5: Game Specifications

    GAME SPECIFICATIONS WEIGHT POWER REQUIREMENTS NET WEIGHT 1986 lbs. 900 kg INPUT VOLTAGE RANGE 100 to 240 VAC SHIP WEIGHT 2086 lbs. 946 kg INPUT FREQUENCY RANGE 50/60 Hz GAME DIMENSIONS MAX OPERATING CURRENT WIDTH 60 inches 152 cm 3.8 Amps @ 115 VAC / 2.5 Amps @ 230 VAC DEPTH 163 inches 414 cm...

  • Page 6: Game Set Up

    HOT SHOT 2023 GAME SETUP The game will arrive on 2 pallets. Please inspect the pallets for shipping damage and report immediately to the freight company if any damage found. Tools Needed: 2 -3 ladders (12-15 foot) 9/16” Wrench 5/32” Hex Bit 3 -4 people 7/16”...
  • Page 7 HOT SHOT 2023 GAME SETUP The next component on the stack is the Ball Gate Platform. - Remove the wood blocking to release this Ball Gate Platform using a # 2 square bit. - Remove this Ball Gate Platform and set aside for later use. The next component on the stack is the giant heavy box.
  • Page 8 - Remove 4 Ramp Braces from giant heavy box and place near the assembly area. - Remove the 4 Side Connector Plates (B) part # A5ME22002 from giant heavy box and place near the assembly area. - Remove the 2 Back Wall Supports (C) part # A5ME22005 from giant heavy box and place near the assembly area.
  • Page 9 - Remove the 4 Floor Supports (D) part # A5ME22006 from giant heavy box and place near the assembly area. - Remove the Back Wall Splice from giant heavy box and place near the assembly area. - Remove the 2 packages of Leg Supports (G) part # A5ME22009 from giant heavy box and place near the assembly area.
  • Page 10 Install the Long Rear Legs: - Unwrap the Long Rear Legs (A) part # A5ME27520 and place one against the Rear Side Wall as shown. - Locate 3 sets of bolts, spilt washers, and washers from the hardware kit. A5BOHH090 A5WALO010 A5WAFL050 - From the back side, hand thread these 3 sets of...
  • Page 11 Remove the next board from the pallet stack and place on the right side of the Back Wall as shown. Unwrap the last Long Rear Leg (A) part # A5ME27520 and install into the right side rear side wall using the same process as the other side.
  • Page 12 Install a Short Leg part # A5ME22008 into the right side rear side wall using the same process as the left side. - Use 2 sets of bolts, spilt washers, and washers from the hardware kit, hand thread into right side wall and tighten using a 9/16”...
  • Page 13 - Locate 2 Leg Supports (G) part # A5ME22009 - Locate 8 bolts from the hardware kit. A5SCHH007 - Place the 2 Leg Supports into position as shown and secure using these 8 black bolts using a 5/32 hex bit. The assembled cabinet can now be tipped up and moved closer to final game room position.
  • Page 14 - Unwrap 2 Side Connector Plates (B) part # A5ME22002 - Locate 6 black bolts from the hardware kit. A5BOPH312 - Place 1 Side Connector Plate against right side of cabinet as shown and hand thread 6 bolts into the cabinet. Leave these bolts loose for now.
  • Page 15 - Remove the next board from the pallet stack and place on the floor as shown. - Locate 2 sets of bolts, spilt washers, and washers from the hardware kit. A5BOHH090 A5WALO010 A5WAFL050 - Unwrap one of the packages of Short Legs part # A5ME22008 and place one against the right middle side wall as shown.
  • Page 16 Repeat the same process for the left side middle side: - Remove the next board from the pallet stack and place on the floor. - Locate 2 sets of bolts, spilt washers, and washers from the hardware kit. A5BOHH090 - Unwrap one of the Short Legs part # A5ME22008 A5WALO010 A5WAFL050 and place one against the left middle side wall.
  • Page 17 - Locate and slide 2 Ramp Braces into the slots as shown, but DO NOT screw down yet. - Remove the next board from the pallet stack. This board has notches cut out that will align with the tabs on the Ramp Braces.
  • Page 18 - Locate and unwrap 2 Floor Supports (D) part # A5ME22006. - Locate 8 of black 10’s (A5SCPH152) from the hardware kit. A5SCPH152 - Place 1 of the red metal floor supports under the right side of the cabinet as shown. The bracket will support the ends of the floor boards as they come together.
  • Page 19 We will now build the front sides. It is the same process as before, noting that the arrows on the wood sides point towards the rear of the cabinet. - Remove the next board from the pallet stack and place on the floor. - Locate 2 sets of bolts, spilt washers, and washers from the hardware kit.
  • Page 20 - Locate 1 Leg Support (G) part # A5ME22009 - Locate 4 bolts from the hardware kit. A5SCHH007 - Place the Leg Support into position as shown (It’s best to keep the open end toward the back of the game) and secure using these 4 black bolts using a 5/32 hex bit.
  • Page 21 - Locate the Back Wall Splice previously removed from the box. - Install Back Wall Splice at the top back of game over 2 long bolts as shown. - Locate 2 washers and 2 nylon nuts from the hardware kit. A5WAFL060 and A5NUNY065. A5WAFL060 A5NUNY065 - Install a washer and locknut on top of the long bolts and using a 7/16”...
  • Page 22 - Locate 6 of black 10’s (A5SCPH152) from the hardware kit. A5SCPH152 - Install the 6 black 10’s (A5SCPH152) using a # 2 square bit into the L brackets Install the left side cage to the back way the same way: - Remove a net section from the pallet stack and bring to the left side of the cabinet.
  • Page 23 Install the left side support to the back of game: - Locate the 2 Back Wall Supports (C) part # A5ME22005 from giant heavy box and place near the assembly area. - Locate 3 of bolts (A5SCHH007) and 3 nuts (A5NULO050) from the hardware kit.
  • Page 24 - Using 2 people, carefully carry the Back Wall Panel up the 2 ladders. Make sure the notch cutout is on the bottom. - Slide the bottom of the Back Wall Panel against the red metal rails and lower into the gap between the red metal brackets and the bare wood back wall splice.
  • Page 25 - Locate 4 black bolts from the hardware kit. A5BOPH312 - Carefully climb inside the cabinet and hand thread these 4 bolts into the right side to secure the rear panel as shown. Tighten using a # 2 square bit. Repeat the process for the left side of the cabinet - Locate 4 black bolts from the hardware kit.
  • Page 26 Install the middle set of side cages: - Locate 5 of bolts (A5SCHH007) and 5 nuts (A5NULO050) from the hardware kit. A5SCHH007 A5NULO050 - Using 2 people, remove a net section from the pallet stack and bring to the right side of the cabinet. Since the side nets are interchangeable, there will be some extra holes not used.
  • Page 27 Repeat this same process for the front set of side cages: - Locate 5 of bolts (A5SCHH007) and 5 nuts (A5NULO050) from the hardware kit. A5SCHH007 A5NULO050 - Using 2 people, remove a net section from the pallet stack and bring to the right side of the cabinet. Since the side nets are interchangeable, there will be some extra holes not used.
  • Page 28 Prepare the Backboard: - Remove the plywood with Backboard attached from Pallet #1 using # 2 square bit. - Using 2 or more people, remove a backboard section from the pallet stack and set on the floor. - Remove the 4 nuts from the plywood using a 7/16” wrench. - Remove the 4 bolts the front of the Backboard using a # 2 square bit.
  • Page 29 Install the Backboard: The inside back of the backboard has an angle cut in the white plastic that will match up with an angle an the back of the game. This will allow the backboard to be lifted up and hooked into place.
  • Page 30 - Plug the 22033 cable into the CE22024 cable. - Plug the 22034 cable into the CE22024 & CE22025 cables. The yellow sockets plug together and the single wire connectors plug together. - Install the 6 Wire Saddles into the holes in the back of the cabinet, and route the cables to the right and down the cabinet as shown.
  • Page 31 Install the Front Support Bracket: - Locate the Front Support Bracket. - Locate 4 of bolts (A5SCHH007) and 4 nuts (A5NULO050) from the hardware kit. A5SCHH007 A5NULO050 - Using 2 people, carefully bring the Front Support Bracket to the top front of game. - Install the 4 bolts (A5SCHH007) from the Front Support Bracket into the front side net.
  • Page 32 Install Floor Trim: - Locate the rolled up foam and laminate floor. - Locate 2 packs of black plastic trim - Locate 30 of 1-1/2” screws (A5SCFH125) from the hardware kit. A5SCFH125 - Roll out the white foam so that it is flush with the backboard with equal distance gaps on the left and right side.
  • Page 33 Remove the Front Console from Pallet # 1: - Remove the 3 of 2X4’s on each side of the pallet using a # 2 square bit. - Remove card board surrounding Front Console. - Remove the 4 bolts holding the Front Console to the pallet using a Torx T-30 bit.
  • Page 34 Connect the Front Console to the assembled game: - Locate the 2 Front Connector Plates. - Locate 12 black bolts from the hardware kit. A5BOPH312 - Install one Front Connector Plate onto the left side of cabinet as shown. Note: Ensure the off-set holes are to the top, lower hole to the front of the cabinet.
  • Page 35 - Once again, locate 12 black bolts from the hardware kit. A5BOPH312 - Hand thread the 6 bolts into the remaining holes of the connection plates on both sides of the cabinet.. - After all 12 bolts have been started, tighten all bolts with a # 2 square bit.
  • Page 36 Install Ball Gate Cover: - Locate black plastic ball gate cover. - Locate 11 of black 10’s (A5SCPH152) from the hardware kit. A5SCPH152 - Install the black plastic gate cover by sliding the 3 notches into the notches in the cabinet. Slide the cover forward and install the 11 screws (A5SCPH152) into the holes using a # 2 square bit.
  • Page 37 Install the 2 LED panels: - Locate left side LED Panel assembly. - Locate 2 of bolts (A5SCHH007) and 2 nuts (A5NULO050) from the hardware kit. A5SCHH007 A5NULO050 - Locate 5 black bolts (A5BOPH312) from the hardware kit. A5BOPH312 - Bring the left side LED Panel up onto the left side of the front console.
  • Page 38 - Install 2 of bolts (A5SCHH007) into the 2 top holes in the left side LED panel. - Install 2 nuts (A5NULO050) onto the back side of these 2 bolts. - Tighten using a 5/32 hex bit. Repeat the process for the right side LED panel: - Locate 2 of bolts (A5SCHH007) and 2 nuts (A5NULO050) from the hardware kit.
  • Page 39 Install final red metal Ball Guard: - Locate the Ball Guard (A5ME22017) and bring to game and place as shown. - Locate 4 of bolts (A5SCHH007) and 4 nuts (A5NULO050) from the hardware kit. A5SCHH007 A5NULO050 - Install 2 of bolts (A5SCHH007) and 2 nuts (A5NULO050) into the left side, and install 2 of bolts (A5SCHH007) and 2 nuts (A5NULO050) into the right side.

  • Page 40: Card Swipe Installation

    CARD SWIPE SYSTEM INSTALLATION To Door I/O Board The Hot Shot game is pre-wired with a UCL (Universal From Ticket Dispenser Blue Wire is Notch Signal Card Link) connector to accept Card Swipe systems White Wire is Enable Signal from many different manufactures. Please follow these instructions to make full use of this capability.

  • Page 41: How To Play

    HOW TO PLAY Regulation Sized Free Throw Game! At game start, a motor will turn and release the balls to the player. After the game is over, the motor will turn and close the ball gate. Dual optical reflective sensors in the hoop record scores.

  • Page 42: Main Menu Functions

    MAIN MENU SETTINGS The Menu and Menu Select buttons are located inside the front door. Hold the MENU button down for 3 seconds to open the main menu on the display. Press MENU to scroll through the options, and MENU SELECT to change the settings. Default settings are highlighted in yellow below.
  • Page 43 MAIN MENU SETTINGS Scroll through the options by pressing the “MENU” button. Change selection with the “SELECT” button. Default settings are highlighted in yellow below. Bonus Time Mode Disabled Allow Once Allow Twice Infinite Allows extra time to be added to the length of the game after scoring a certain amount of points. Points for Bonus Time …...
  • Page 44 MAIN MENU SETTINGS Scroll through the options by pressing the “MENU” button. Change selection with the “SELECT” button. Default settings are highlighted in yellow below. Ticket Setting Sets the number of tickets awarded for the set amount of points scored in “Points Settings” below. Points Setting Sets the number of points needed to be awarded the number of tickets in “Ticket Settings”...
  • Page 45 Diagnostics Menu Scroll through the options by pressing the “Menu Select” button. Exit the menu by pressing the “Menu” button. Hoops Shows the status of the 2 hoop sensors. T is top sensor, B is bottom sensor Normally, both show “OFF” as they both see the reflection from the tape at the front of the rim.

  • Page 46: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Troubleshooting Strategy Use common sense and a systematic method of troubleshooting to determine the exact problem, probable cause and remedy. Use the process of elimination to find the faulty component. Always check for the simple and obvious causes first such as unplugged, loose or broken wires and bad sensors, bent, pinched, stuck or jammed components.
  • Page 47 TROUBLESHOOTING GUIDE Problem Probable Cause Remedy Look for communication and Refer to “I/O Aux Board Issue” power on the I/O Aux Board diagnostic section. for that player. Ensure game makes sound Check coin switches—both should be wired Game not coining up when coin switch is triggered.
  • Page 48 TROUBLESHOOTING GUIDE Problem Probable Cause Remedy Opto Sensor on ticket Blow dust from sensor and clean with isopropyl Tickets do not dispenser dirty. alcohol. dispense or Faulty ticket dispenser. Replace with working dispenser to isolate the Wrong amount problem. (A5TD1) dispensed Notch on tickets cut too Flip tickets and load upside-down to have large cut...
  • Page 49 TROUBLESHOOTING GUIDE Problem Probable Cause Remedy Loose or bad connection Refer to wiring diagram. Check multiple connections and LED Lights reseat cables from Controller Board to lights. on top or Cables # CE220001P, CE22010P bottom of ball trough Test LED’s in Diagnostic Enter menu, scroll to Diagnostic Menu and press “Menu area are not Menu...

  • Page 50: Circuit Board Layout

    CIRCUIT BOARD LAYOUT Boards are located inside the front door. CE22011P A5PS1013 Power Supply CE22017P CE22006P AACE22012P Power to CE22008P Audio Board AACE22013P A5CB5156B Power to Power Dist. Board On/Off Rocker AACE22000P Controller Switch on To Speaker Board Power Supply A5CB9621A Audio Amplifier AACE22007P...

  • Page 51: Wiring Diagrams

    WIRING DIAGRAM AAPB2700A Menu Button AAPB2700A AACE22018P Menu Select Clicks as the Game game starts Counter AACO1020 Clicks as tickets are Ticket being dispensed. Counter Low Ticket Switch AACE22016P Wired Normally Open AASW200 AACB9605A-HSHOT2 1/4” Spacer A5SENY020 I/O Aux Door Board To Ticket Dispenser Part # A5TD1 Notch Signal...
  • Page 52 HOOP SENSORS & BALL GATE WIRING DIAGRAM The Top Sensor connectors are AASE22000P colored Red Top Hoop Sensor There are 2 LED’s on the sensors: Green means it has power. Yellow is normally ON, and goes out when hoop is blocked. AASE22001P Bottom Hoop Sensor The Bottom Sensor...
  • Page 53 BUTTONS & SOUND WIRING DIAGRAM Speaker Speaker AACE8811A AACE8811A 2-4 Ohms 2-4 Ohms AACE22000P A5CB9621A Audio Amplifier A5CB5156B Power Dist. Board AACE22012P AACE22002P AACB22000A Controller Board A5CE2321 Audio Filter A5CEAU010...
  • Page 54 CIRCUIT BOARD LAYOUT Displays and Flood Lights can be accessed by removing the front plexi display cover. AACB14000A-HSHOT Matrix Board AALD22001P AALD22001P AALD22001P 12 V Flood 12 V Flood 12 V Flood Light Light Light A5CB5156B AACE22013P Power Dist. Board Power In from Power Dist Board...
  • Page 55 GAME LIGHTING WIRING DIAGRAM AACE22025P AACE22024P Inside Backboard Outside Backboard RGB LEDs RGB LEDs AACE22034P AACE22033P Rear Section Front Console AACE22039P AACE22039P Right Side Cage AACE22006P Left Side Cage RGB LEDs RGB LEDs AACE22037P AACE22035P AACE22013P Power In from Power Dist Board AACE22005P AACE22009P...
  • Page 56 AC POWER IN WIRING DIAGRAM AACE22030P Hinge to AACE22028P Ticket Front Door Dispenser Power In Cord Hinge to From Wall Hinge Part # A5CORD29 AACE22029P If the supply cord Front Door is damaged, it Hinge to must be Coin Door AC Line Filter replaced by a Board...

  • Page 57: Scoring Issues

    SCORING ISSUES Information on Scoring: There are 2 reflective sensors mounted on the back of the hoop. The game must “see” both of these sensors to score a basket. It must first see the top sensor, then the bottom sensor. This sequence eliminates the “false score”. The infrared light from the sensors bounce off the reflective tape in the front of the hoop and creates a beam.

  • Page 58: Ball Gate Not Operating Properly

    BALL GATE NOT OPERATING PROPERLY The ball gate will normally be up to stop balls. It will cycle down to allow balls to pass over it during game play. To test - Press the menu button to enter the main menu. Press menu button to get to “Diagnostic”, then press the menu select button to scroll to the Gate Diagnostics.

  • Page 59: How To Adjust The Ball Gate

    HOW TO ADJUST THE BALL GATE If the ball gate is not opening fully, or blocking balls when it is open, the metal motor mount must be adjusted up or down. This ball gate motor mount is covered by a black plastic panel. Remove this panel by removing the 11 screws using a # 2 square bit.

  • Page 60: Power Supply Diagnostics

    POWER SUPPLY DIAGNOSTICS 1.) Verify AC power to game. Check power strip in front door. The rocker switch should be illuminated. 2.) Check connection to power supply. 3.) Ensure Power Supply switch is set to 115V (or 230V) A5PS1013 (Some model power supplies may not have this) Power Supply 4.) Ensure Power switch is on.

  • Page 61: Controller Board Information

    CONTROLLER BOARD INFORMATION The controller board has 3 red LED’s that show good power into the board. If one of these LED’s is not red, check the corresponding voltage on the CE22013P cable from the Power Distribution Board into Controller Board.

  • Page 62: Bill Acceptor Diagnostics

    BILL ACCEPTOR DIAGNOSTICS Note: There are many different models and brands of Bill Acceptors that are used on redemption games. Your Bill Acceptor may differ from the unit shown. Standard DBA is MEI # AE2454-U5E Part # A5AC9101 Determine if Bill Acceptor has power: Turn game ON—The bill acceptor should make noise as stacker cycles and green lights on outside bezel should flash.

  • Page 63: I/O Board Dipswitch Settings

    I/O BOARD DIPSWITCH SETTINGS SWITCH DESCRIPTION ON OFF Note: Make sure that both dipswitches on this bank of 2 are both Off. SHOW GAME Does not dispense tickets and clears all accumulated credits if ON AMUSEMENT ONLY Does not dispense tickets if ON NJ LOCKOUT Saves tickets owed and unused credits after a power loss if ON...

  • Page 64: Parts List

    PARTS LIST PART # DESCRIPTION PART # DESCRIPTION A5BA8703 Basketball SB1000 (5 per game) A5ME22024 Hot Shot Rim AABK1013 Push Button/Counter Bracket With Decal A5ME27520 Long Leg, (2 per game) A5BU27501 Push Button with Switch (2 per game) A5ME4180 Right Ticket Tray Bracket A5CB2020 Cash Box A5ME4182...
  • Page 65 PARTS LIST PART # DESCRIPTION PART # DESCRIPTION AACE22034P Backboard Inside Light Jumper WACA22061 Right Light Rail Angled, White Plastic AACE22035P Backboard and Side Cage Lights Jumper WACA22062 Left Light Rail Console, White Plastic AACE22036P Linking Cable WACA22063 Right Light Rail Console, White Plastic AACE22037P Side Cage Light Power WACA22064...

  • Page 66: Parts Pictures

    PARTS PICTURES A5BA8703 AABK1013 A5BU27501 A5CB2020 A5FO22000 A5KIT-HSOT2 AALA22000 A5LK2001 A5LK5002 A5LV10000 A5MO5154 A5NE22000 A5NE8402 A5SP10000 AASW200 AATA8701 A5TD1 A5VF4604 W5HG1015 W5HG1025 W5HG1065 W5KE5000 W5TM4003 A5BK9999 A5ME10018 A5ME15005 A5ME1727 A5ME22000 A5ME22001 A5ME22002 A5ME2200 A5ME22004 A5ME22005 A5ME22006 A5ME22007 A5ME22008 A5ME22009 A5ME22010 A5ME22011 A5ME22012 A5ME22013 A5ME22014 A5ME22016 A5ME22017 A5ME22023 A5ME22024 A5ME27520 A5ME4180 A5ME4182...
  • Page 67 PARTS PICTURES AACE22002P AACE22003P AACE22004P AACE22005P AACE22006P AACE22007P AACE22008P AACE22009P AACE22010P AACE22011P AACE22012P AACE22013P AACE22014P AACE22015P AACE22016P AACE22017P AACE22018P AACE22019P AACE22020P AACE22021P AACE22022P AACE22023P AACE22024P AACE22025P AACE22026P AACE22027P AACE22028P AACE22029P AACE22030P AACE22031P AACE22032P AACE22033P AACE22034P AACE22035P AACE22036P AACE22037P AACE22038P AACE22039P AACE8811A AACO1020 AAPB2700A AALD22000P...
  • Page 68 PARTS PICTURES A5DE22010 A5DE22011 A5DE22012 A5DE22013 A5DE22014 A5DE22015 AACB15001 A5CB5156B AACB5190A A5CB9621A A5FI9012 A5LD1052 A5PS1013 AACB14000A-HSHOT AACB22000A AACB9605A-HSHOT2 AASD0032-HSHOT2 A5DE22025 A5DE22026 A5DE22027 A5DE22028 A5ME22018 A5ME22019 A5ME22020 A5ME22021 A5ME22022...

  • Page 69: Divider Kit Installation

    HOT SHOT DIVIDER KIT SETUP The Divider Kit will arrive either on it’s own pallet or attached to a game pallet. Please inspect for shipping damage and report immediately to the freight company if any damage found. Tools Needed: Phillips head screwdriver bit # 2 Square head screwdriver bit 1 - 2 people Important:...
  • Page 70 - Slide one of the Lower Side Brackets under the bolt heads as shown and re-tighten bolts using a # 2 square bit. - Repeat the process for the other Lower Side Bracket which attaches to the left side of the right game.
  • Page 71 - Install the Divider Support Brace as shown with 1 bolt and nut on each end in the 3rd hole from the bottom, and tighten using a # 2 square bit. The games may have to be moved left or right to accommodate this bracket.
  • Page 72 - Install the Lower Plexi as shown with 2 bolts & nuts on the top on bottom, and 3 bolts & nuts on each side, and tighten using a # 2 square bit. Build Top Plexi Assembly: - Locate the Top Plexi (#A5DE22025) - Locate 2 of long side metal (A5ME22019) - Locate 6 of Divider Connection Plates (A5ME22022) - Locate 8 of bolts (A5BOPH312) and 8 nuts (A5NULO050) from...
  • Page 73 - Locate 2 of the Divider Cross Braces (A5ME22021) - Locate 12 of bolts (A5BOPH312) and 12 nuts (A5NULO050) from the hardware kit. A5NULO050 A5BOPH312 - Position the divider cross brace on the short side of the top plexi. Install 6 of the bolts and nuts into the top plexi as shown.
  • Page 74 Install Wood Supports: Wood supports will be installed in the space between the 2 games. There are mounting holes underneath the decals on all games built. These mounting holes will have to be cut out so that the wood supports can be bolted in place. - Locate the 6 cutouts on the right side of the left game and the left side of the right game.
  • Page 75 Install Front and Top Platforms: - Locate the front and top platforms and bring to the game. These will be installed on top of the wood supports in the space between the 2 games. Important! In order for these platforms to clear the white plastic attached to the games, you will have to push the rear of the game in toward the other game.

  • Page 76: Maintenance Log

    REPAIR/MAINTENANCE LOG If you need to make repairs or order replacement parts it is a good idea to keep a log. Below is a chart you can use to track repairs and maintenance. DATE MAINTENANCE PERFORMED PARTS ORDERED MISC. NOTES...

  • Page 77: Technical Support

    TECHNICAL SUPPORT Excellent customer service is very important to Bay Tek Entertainment! We know that keeping your games in great operating condition is important to your business. When you need us, we are here to help. You can call us for free technical assistance, and you can count on us to have parts on-hand to support your game.
