VLT® AutomationDrive FC 302
Operating Guide
5.7.6.7 Motor Heater Control
Table 62: Auxiliary Function Type Codes
Character posi- Code Description
tion
23–24 A4 Motor heater control
AC AC socket + cabinet light + motor heater control
AF AC socket + cabinet light + extended I/O terminals + motor heater control
AH AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AJ AC socket + cabinet light + extended I/O terminals + motor heater control + insulation monitor
AK AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insula-
tion monitor
AL AC socket + cabinet light + cabinet heater + motor heater control
AN AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AO AC socket + cabinet light + motor heater control + insulation monitor
AQ Extended I/O terminals + motor heater control
AS Extended I/O terminals + cabinet heater + motor heater control
AU Extended I/O terminals + cabinet heater + motor heater control + insulation monitor
AV Extended I/O terminals + motor heater control + insulation monitor
AW Cabinet heater + motor heater control
AY Cabinet heater + motor heater control + insulation monitor
AZ Motor heater control + insulation monitor
The motor heater option provides the ability to control the supply for the motor anti-condensation heater. The 24 V DC external
supply is connected to terminal -XD1.1 in the lower part of the cabinet. When the drive is not in run state, the control relay -QAM
changes the external supply to the -XDM output terminals. When the drive is in run state, the control relay disconnects the external
supply to the motor heater. The function is disabled when MCB –FCN is open.
-FCE
-XD1
L
1
6 A

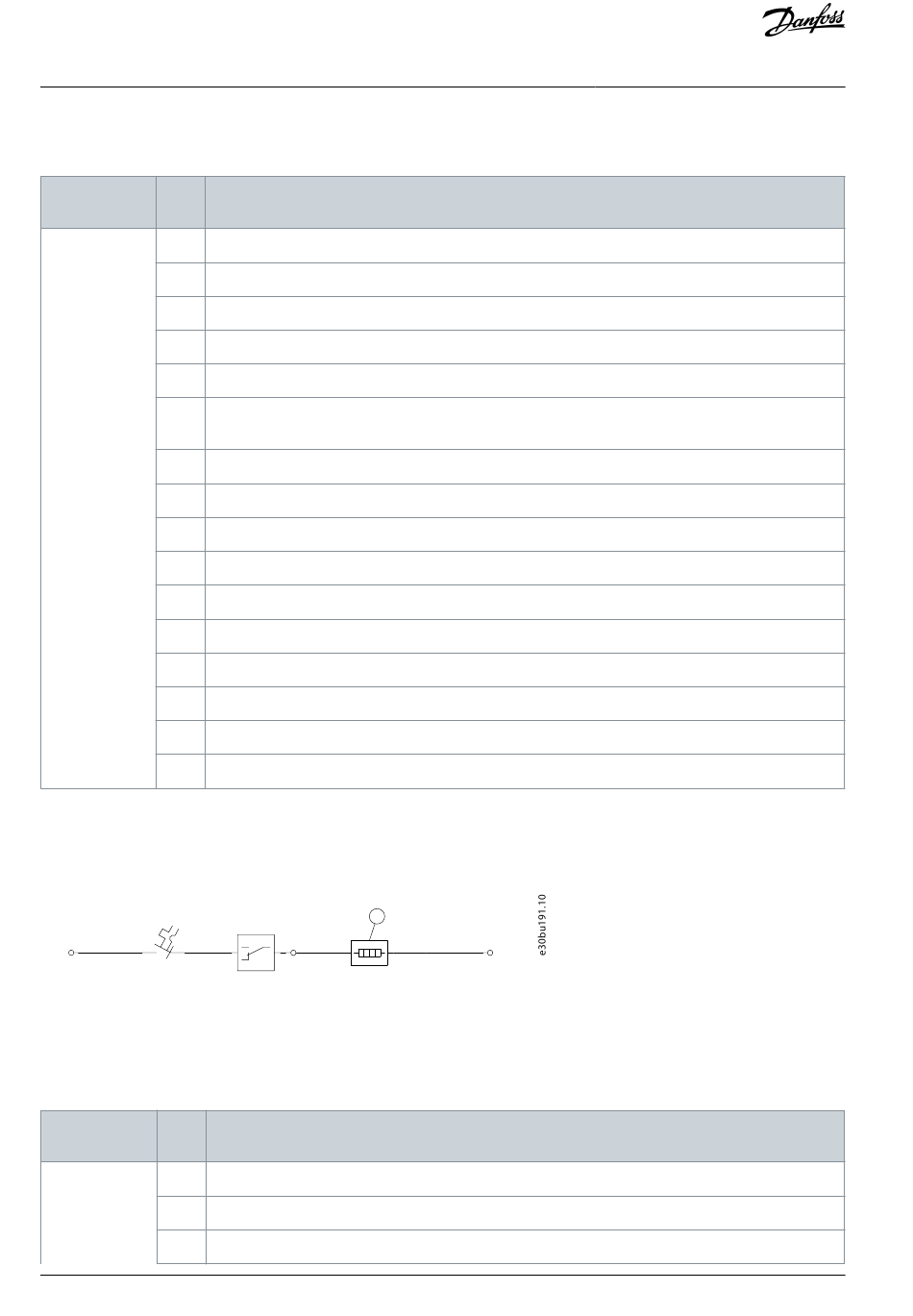

Illustration 54: Motor Heater Control (A = Heater element, not included)
5.7.6.8 Insulation Monitor
Table 63: Auxiliary Function Type Codes
Character posi- Code
tion
23–24 A5
AD
AG
96 | Danfoss A/S © 2021.10
A
-QAM
-XD4
Description
Insulation monitor
AC socket+cabinet light + insulation monitor
AC socket+cabinet light + extended I/O terminals + insulation monitor
-XDM
N
AQ262139143212en-000301 / 130R0879
Electrical Installation
