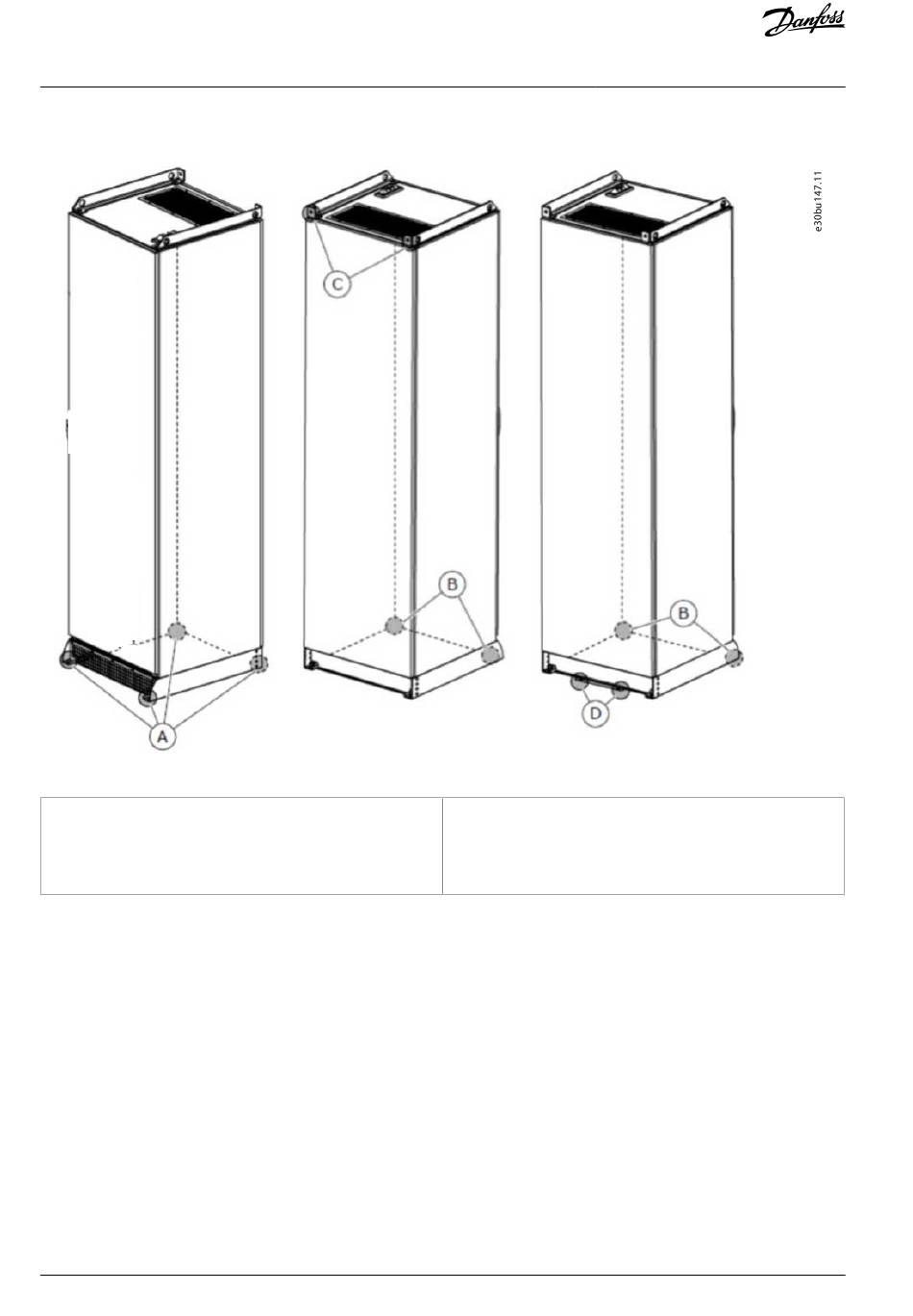

Illustration 18: Cabinet Mounting Points
A
The 4 mounting points at the base of the pedestal
B
The 2 mounting points at the front base of the ped-
estal
48 | Danfoss A/S © 2021.10
C
The 2 mounting points at the upper back of the cab-
inet
D
The 2 mounting points in the mounting bracket
AQ262139143212en-000301 / 130R0879
