Danfoss D9h Operating Manual page 103

VLT® AutomationDrive FC 302
Operating Guide
4. Connect the ground wire to the nearest grounding terminal in accordance with the grounding instructions provided in
5.8.6 Connecting to
5. Connect the 3-phase AC motor cables to terminals U (T1), V (T2), and W (T3).
6.
Tighten the terminals in accordance with the specifications shown in
Example
1
2
3
4
5
6

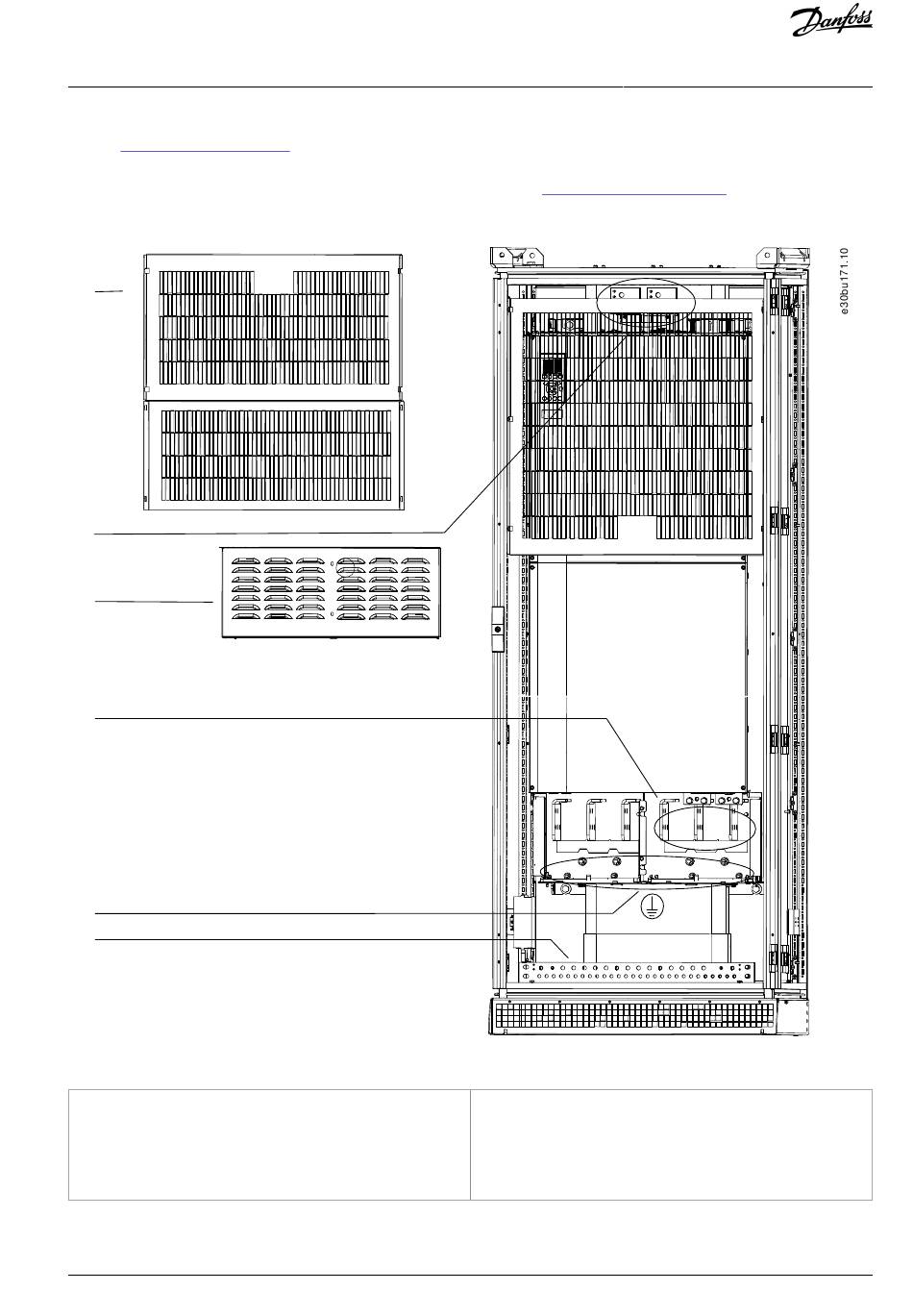

Illustration 58: Connection Points for Drive Module to Motor (E6h Model Shown)
1 Lower cover
2 DC terminals
3 Terminal cover
Danfoss A/S © 2021.10
Ground.
10.11 Fastener Torque
4 Motor terminals
5 Ground terminals on drive module
6 Grounding bar
AQ262139143212en-000301 / 130R0879 | 103
Electrical Installation
Ratings.
