c. Secure the front side of the cabinets to one another using the front brackets. See
d.
Secure the lifting eyelets to the top of the cabinets. See
e. Join the grounding bars using the connector piece (see the shaded piece in
Example

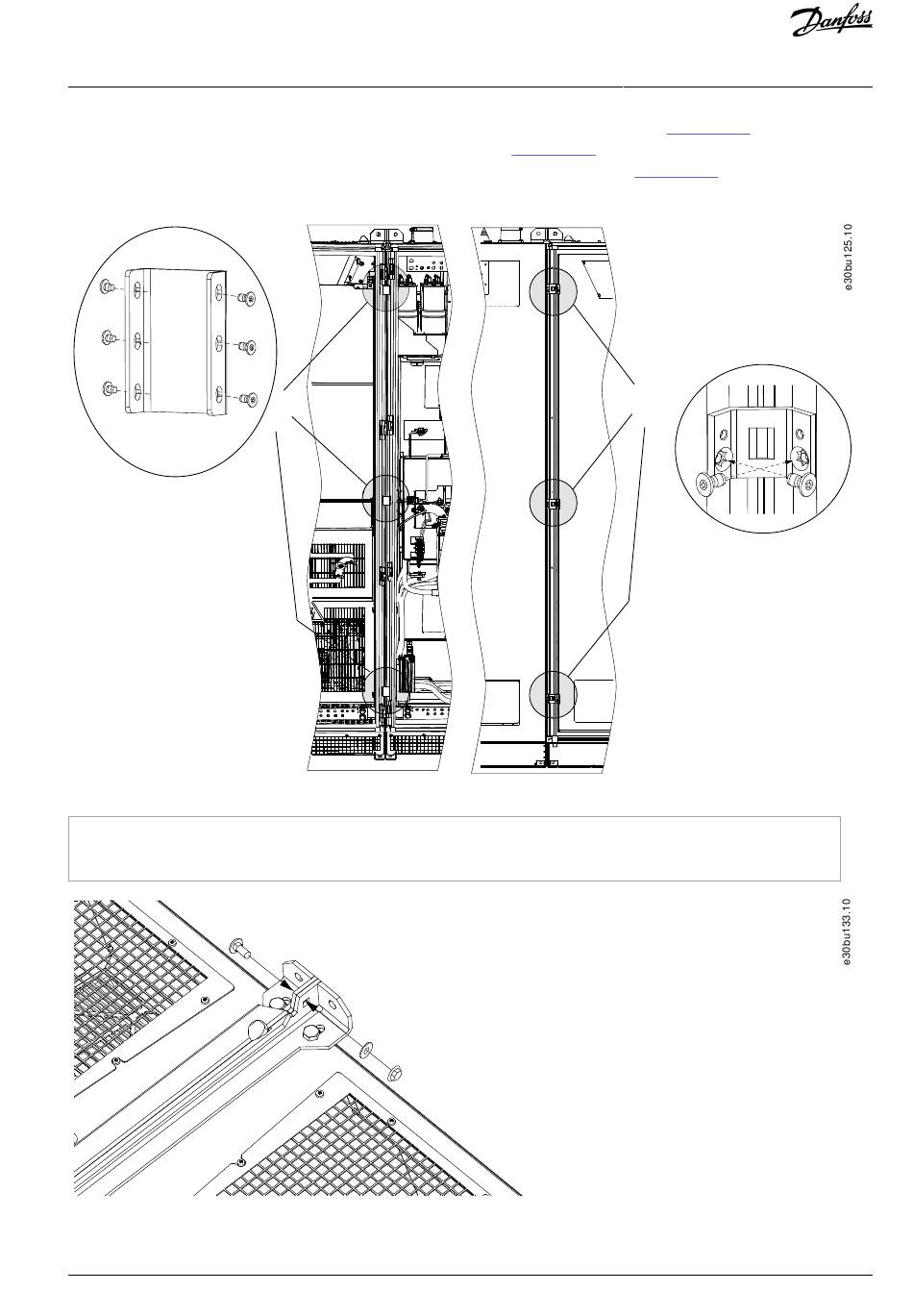

Illustration 14: Bracket Mounting Points for Cabinets
1 Front brackets
2 Back brackets
Illustration 15: Connecting the Lifting Eyelet Between Cabinets
Danfoss A/S © 2021.10
1
Illustration
Illustration 15.
Illustration
2
AQ262139143212en-000301 / 130R0879 | 45
Mechanical Installation
14.
16).
