VLT® AutomationDrive FC 302
Operating Guide

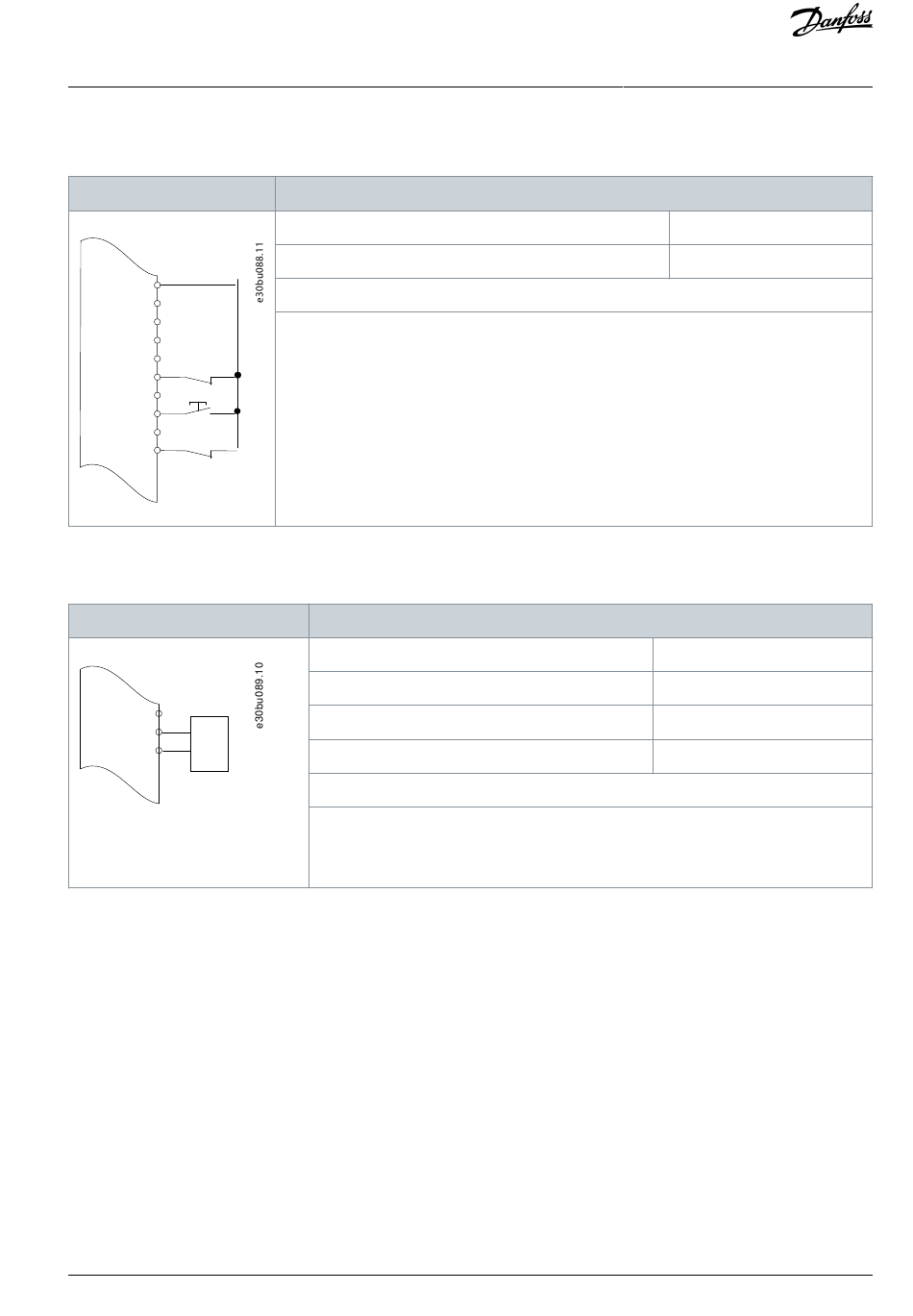

8.1.8 Wiring Configuration: External Alarm Reset

Table 89: Wiring Configuration for External Alarm Reset
+24 V XD2.10
+24 V XD2.11
D IN XD2.12
D IN XD2.13
COM XD2.18
D IN XD2.14
D IN XD2.15
D IN XD2.16
D IN XD2.17
D IN XD2.19

8.1.9 Wiring Configuration: RS485

Table 90: Wiring Configuration for RS485 Network Connection
RS485
XD2.10
+
XD2.11
XD2.12
-
Danfoss A/S © 2021.10
Parameter
Function
Parameter 5-14 Terminal 32 Digital Input
*=Default value
Notes/comments:
D IN 37 is an option.
Terminal 32 in the parameter title corresponds to terminal XD2.16 in the control compartment.
Parameters
Function
Parameter 8-30 Protocol
Parameter 8-31 Address
Parameter 8-32 Baud Rate
*=Default value
Notes/comments:
Select protocol, address, and baud rate in the above-mentioned parameters.
D IN 37 is an option.
Wiring Configuration Examples
Setting
[1] Reset
Setting
FC*
1*
9600*
AQ262139143212en-000301 / 130R0879 | 131
