VLT® AutomationDrive FC 302
Operating Guide
-
Parameter 5-12 Terminal 27 Digital Input to [2] Coasting Stop, Inverse.
-
Parameter 5-02 Terminal 29 Mode to [1] Terminal 29 Mode Output.
- Parameter 5-31 Terminal 29 Digital Output to [27] Torque limit & stop.
• Connect to relay output 1 (XD2.21). Then set parameter 5-40 Function Relay to [32] Mechanical Brake Control.
XD2.10
XD2.11
XD2.12
Start
XD2.13
XD2.14
XD2.15
XD2.16
XD2.17
XD2.18
GND
XD2.19

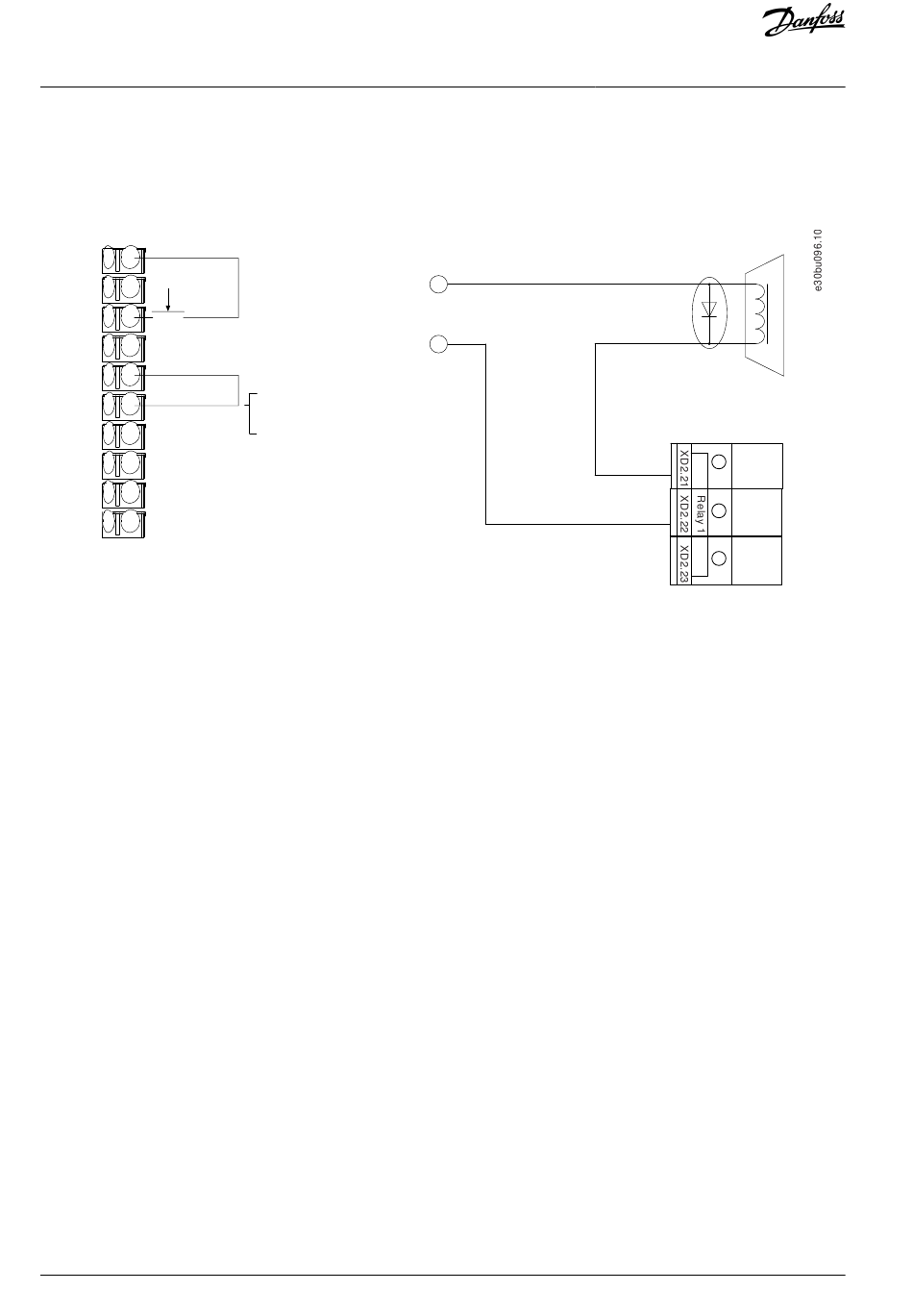

Illustration 73: Wire Configuration for Torque and Stop Limit
136 | Danfoss A/S © 2021.10
+24 V DC
External
P 5-10 [8] 24 V DC
P 5-12 [2]
P 5-02 [1]
P 5-31 [27]
-
+
Wiring Configuration Examples
I 0.1 Amp
max
P 5-40 [0] [32]
Mechanical brake connection
