Danfoss D9h Operating Manual page 73

VLT® AutomationDrive FC 302
Operating Guide

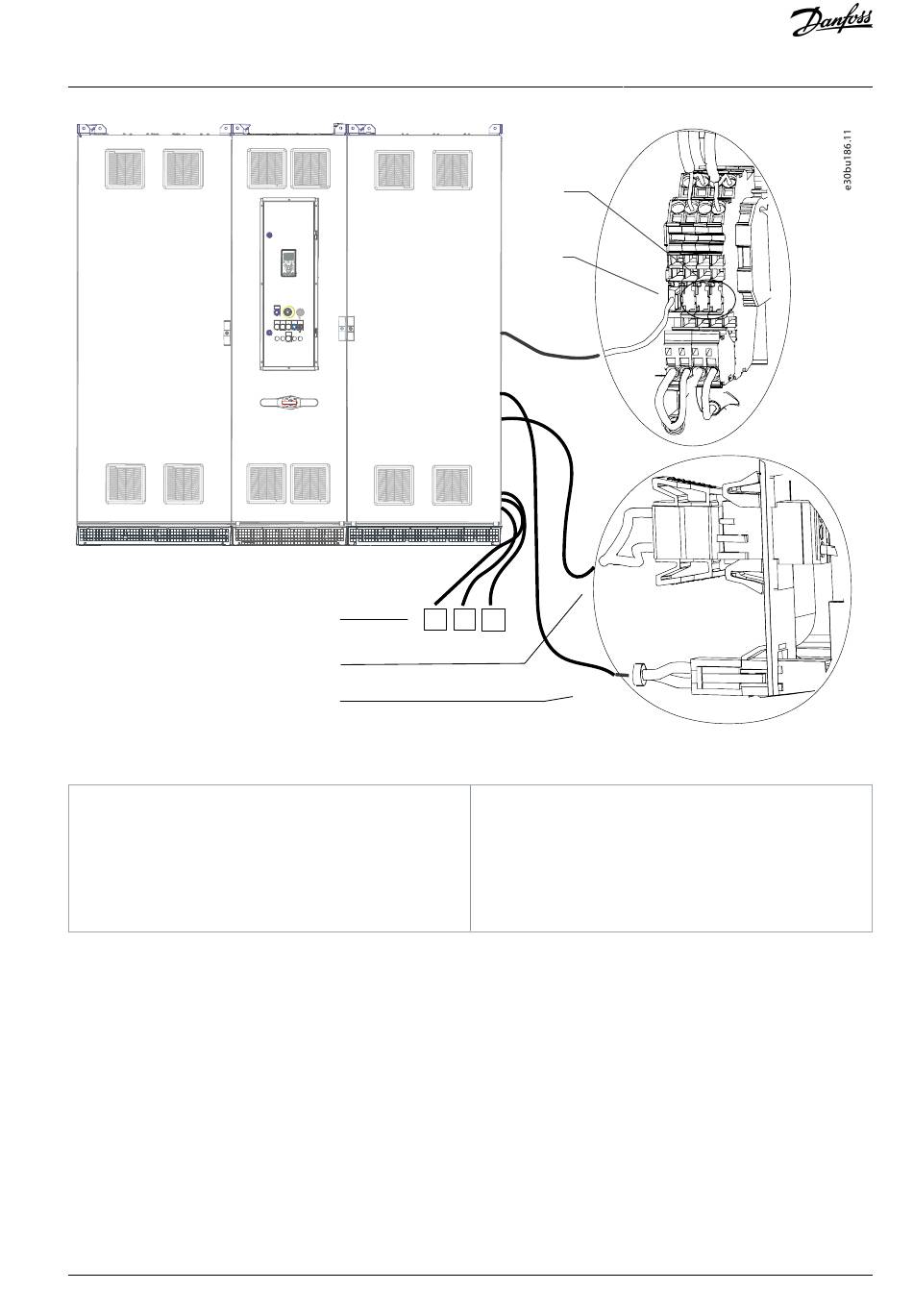

Illustration 39: Split Shipment Electrical Connections (Input Filter Cabinet + Input Power Options Cabinet + E5h Drive Cabinet)
1 Motor cables (U/V/W) to motor terminals (U/V/W) in
output filter cabinet
2 DC-link harness to fan supply in output filter cabinet
3 Cabinet heater supply harness to output filter cabi-
net
Danfoss A/S © 2021.10
1
U V
2
3
4
5
4
5
-XD11.1
-XDL.1
W
-XD4.1
Additional terminal connections
Thermal protection wiring harness to output filter
cabinet
AQ262139143212en-000301 / 130R0879 | 73
Electrical Installation
