VLT® AutomationDrive FC 302
Operating Guide

5.6.4 E5h Wiring Harness

1
2
3
4
5

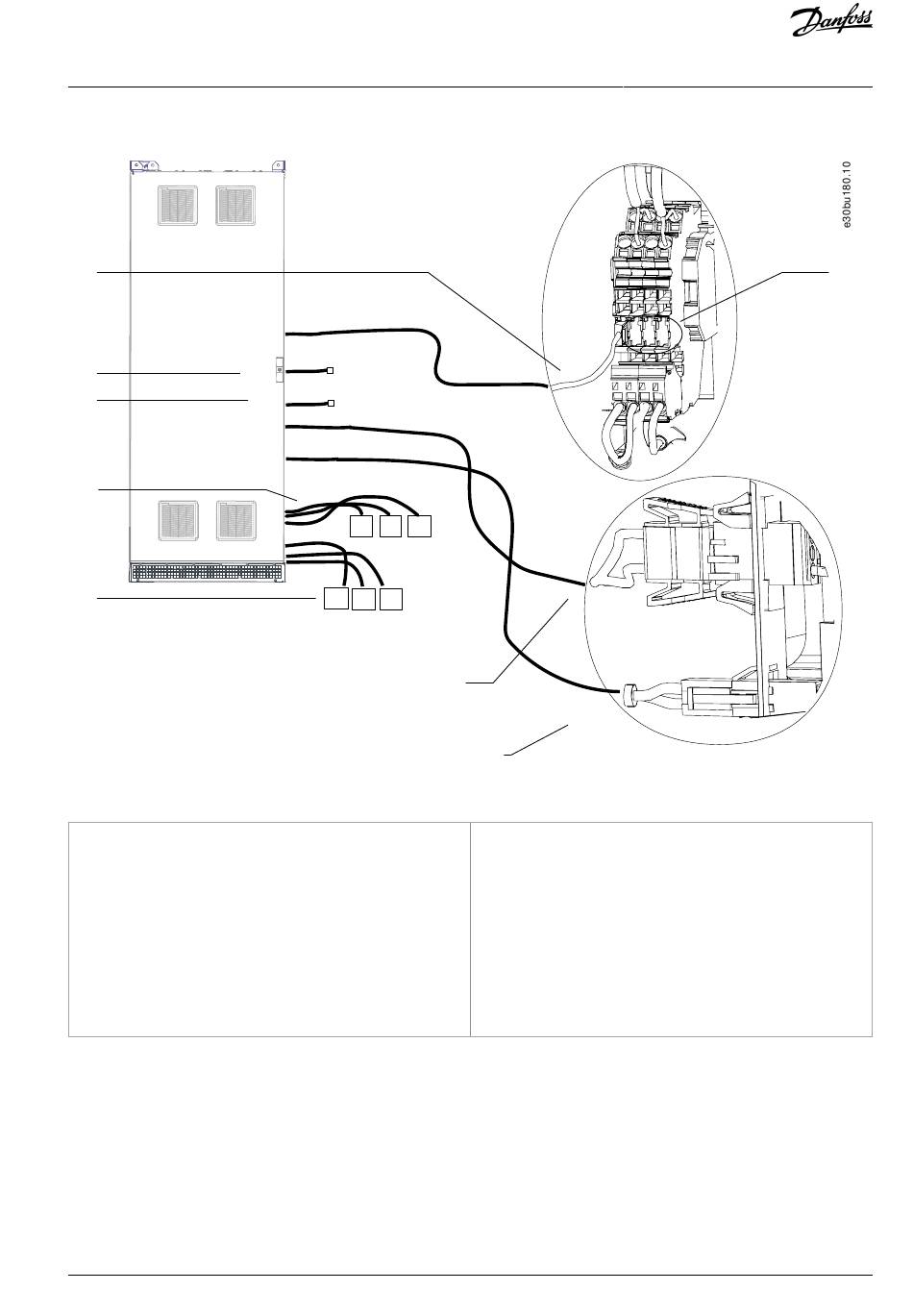

Illustration 35: Split Shipment Electrical Connections (Input Filter Cabinet)
1 Thermal protection wiring harness to input power
options cabinet
2 PHF contactor 1 supply harness to input power op-
tions cabinet (only with PHF option)
3 PHF contactor 2 supply harness to input power op-
tions cabinet (only with PHF option)
4 Input terminal cables (R/S/T) to mains terminals
(R/S/T) in the input power options cabinet
Danfoss A/S © 2021.10
-XD4.3
-XD4.4
R S T
L3T
L1R L2S
6
7
5
6
7
8
-XD11.3
-XDL.1
-XD4.1
Output terminal cables (L1R/L2S/L3T) to mains ter-
minals (R/S/T) in the drives cabinet
DC-link harness to fan supply in the input power op-
tions cabinet
Cabinet heater supply harness to input power op-
tions cabinet
Additional terminal connections
AQ262139143212en-000301 / 130R0879 | 69
Electrical Installation
8
