VLT® AutomationDrive FC 302
Operating Guide
5. Connect the 3-phase AC motor wiring to the dU/dt terminals U (T1), V (T2), and W (T3).
6.
Tighten the terminals in accordance with the specifications shown in
Example
1
2
3

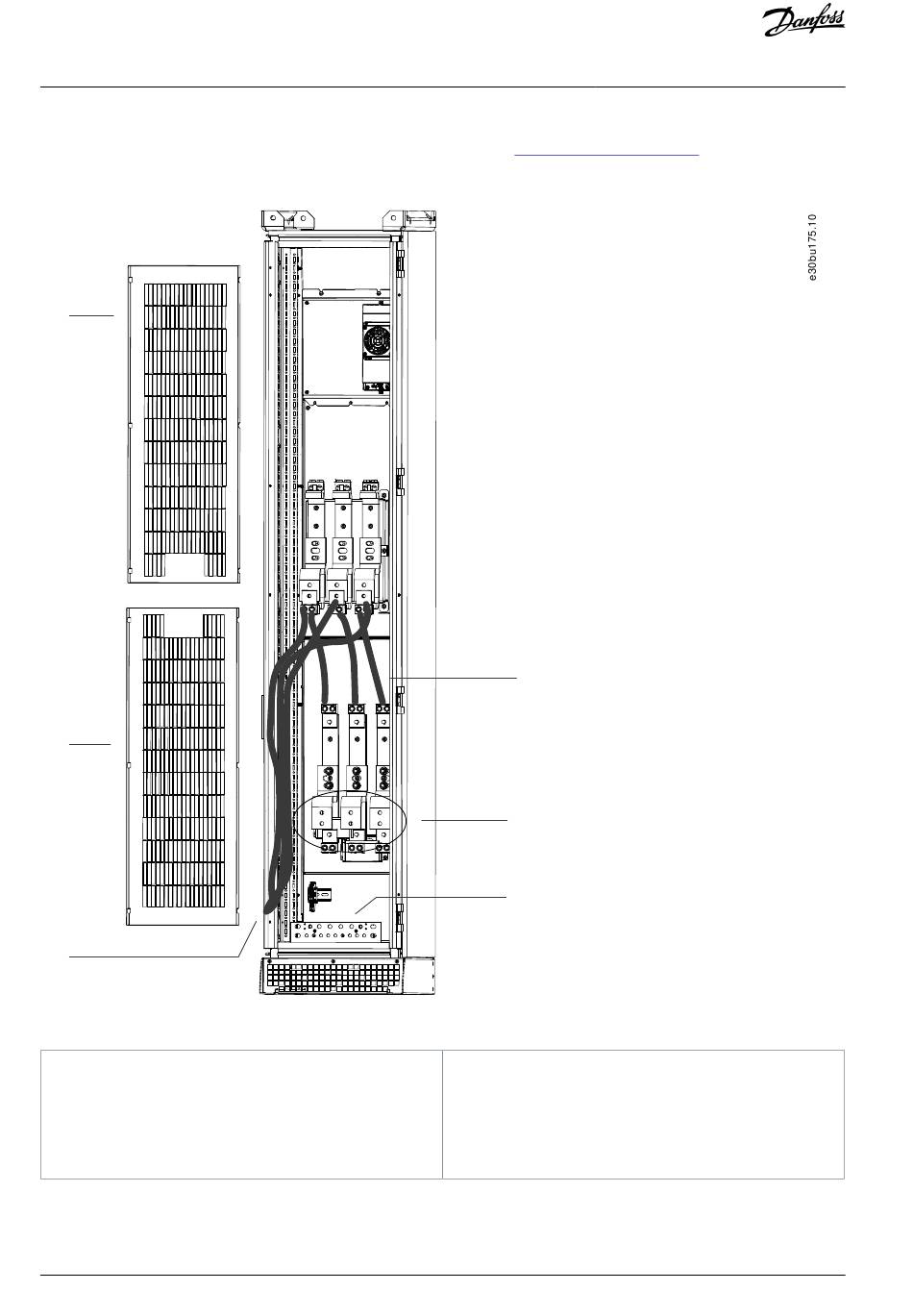

Illustration 60: Connection Points for the dU/dt Filter to Motor
1 Upper cover
2 Lower cover
3 Factory-installed power cables from the drive mod-
ule
106 | Danfoss A/S © 2021.10
10.11 Fastener Torque
4
5
6
4 Factory-installed cables
5 Motor terminals
6 Grounding bar
AQ262139143212en-000301 / 130R0879
Electrical Installation
Ratings.
