VLT® AutomationDrive FC 302
Operating Guide
-FC7
L1-L2
L
1
2 A
-TB7
24 V
60 W

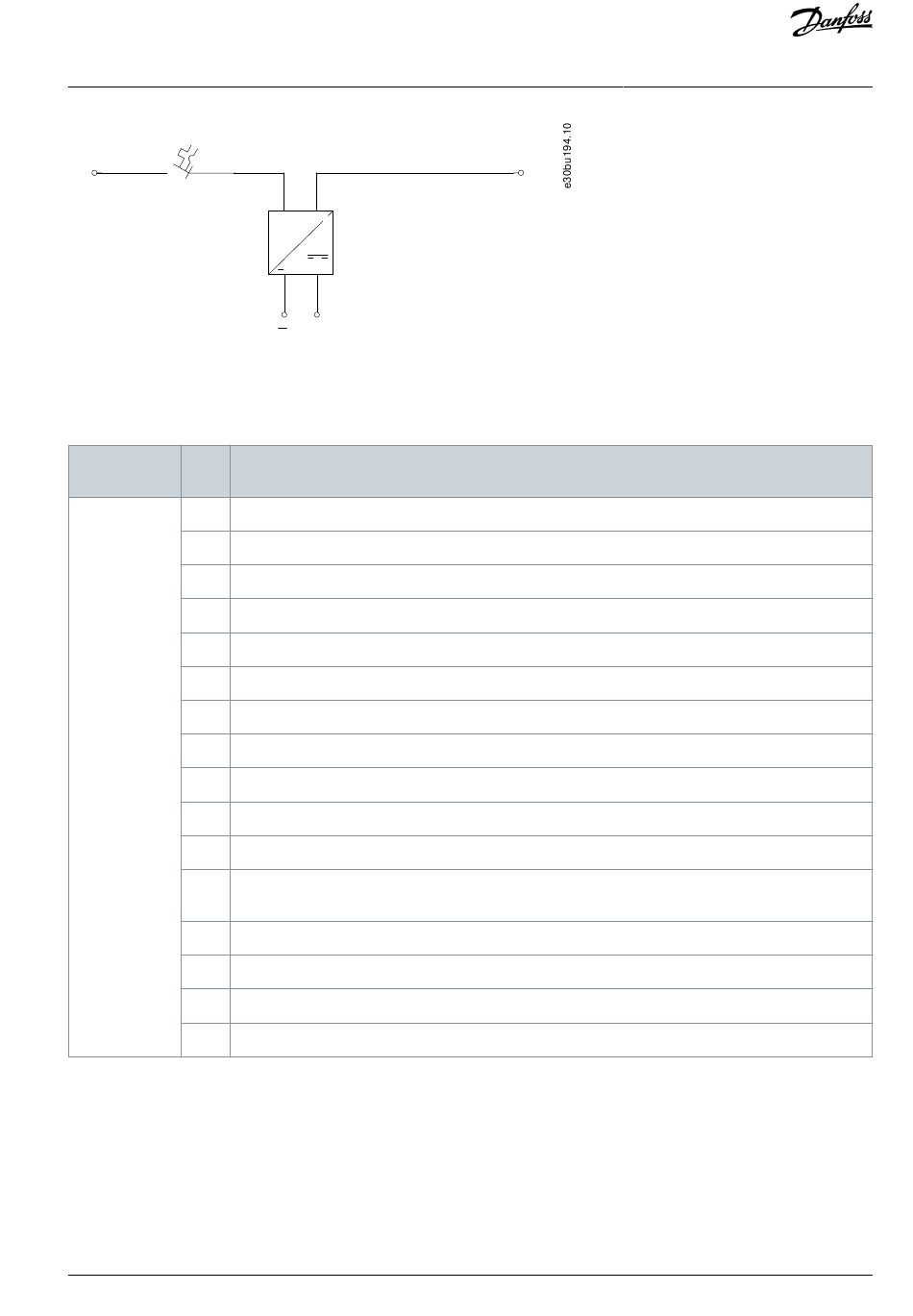

Illustration 51: 24 V DC External Supply Terminals
5.7.6.4 AC Customer Socket
Table 59: Auxiliary Function Type Codes
Character posi- Code Description
tion
23–24 A1 AC socket + cabinet light
AA AC socket + cabinet light + extended I/O terminals
AB AC socket + cabinet light + cabinet heater
AC AC socket + cabinet light + motor heater control
AD AC socket + cabinet light + insulation monitor
AE AC socket + cabinet light + extended I/O terminals + cabinet heater
AF AC socket + cabinet light + extended I/O terminals + motor heater control
AG AC socket + cabinet light + extended I/O terminals + insulation monitor
AH AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AI AC socket + cabinet light + extended I/O terminals + cabinet heater + insulation monitor
AJ AC socket + cabinet light + extended I/O terminals + motor heater control + insulation monitor
AK AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insula-
tion monitor
AL AC socket + cabinet light + cabinet heater + motor heater control
AM AC socket + cabinet light + cabinet heater + insulation monitor
AN AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AO AC socket + cabinet light + motor heater control + insulation monitor
The customer socket provides a supply for measurement tools, equipment, or a computer. The socket type is CEE 7/3 ("Schuko",
Type F) or NEMA 5-15 grounded (Type B). The default voltage is 230 V AC (IEC variant) and 115 V AC (UL variant). When using an
external supply, the maximum output power is 450 VA (IEC variant) and 230 VA (UL variant). When using a transformer supply, the
maximum output power is 200 VA for both variants.
Danfoss A/S © 2021.10
~
+
+
-XD1
N
AQ262139143212en-000301 / 130R0879 | 93
Electrical Installation
