VLT® AutomationDrive FC 302
Operating Guide
5. Make sure to provide an airtight seal for between the duct and wall opening.
Example

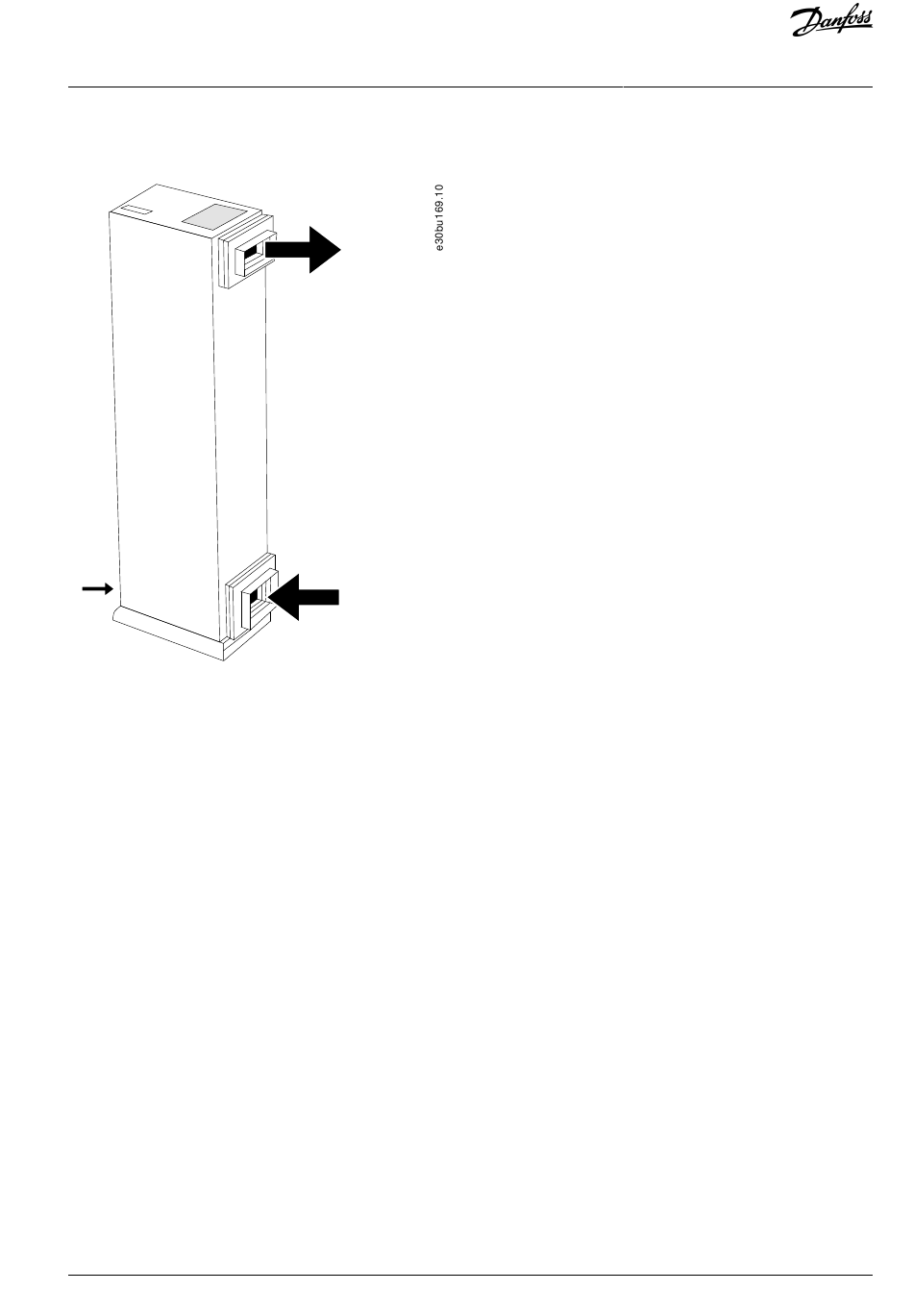

Illustration 17: Cabinet Airflow with the Back-channel Option (Duct Adapter Flanges not Provided with Option)

4.11.3 Securing the Cabinet(s) to the Floor

There are 3 methods to secure the cabinet to the floor:
• Use the 4 mounting points at the base of the pedestal.
• Use the 2 mounting points at the front base of the pedestal and the 2 mounting points at the upper back of the cabinet.
• Use the 2 mounting points in the mounting bracket and the 2 mounting points at the front base of the pedestal.
To use the mounting bracket, first attach it to the floor by sliding the edge of the cabinet pedestal under the mounting bracket.
Then secure the 2 mounting holes to the front base of the pedestal.
Danfoss A/S © 2021.10
Mechanical Installation
AQ262139143212en-000301 / 130R0879 | 47
