7.1.7 Wiring Configuration: External Alarm Reset

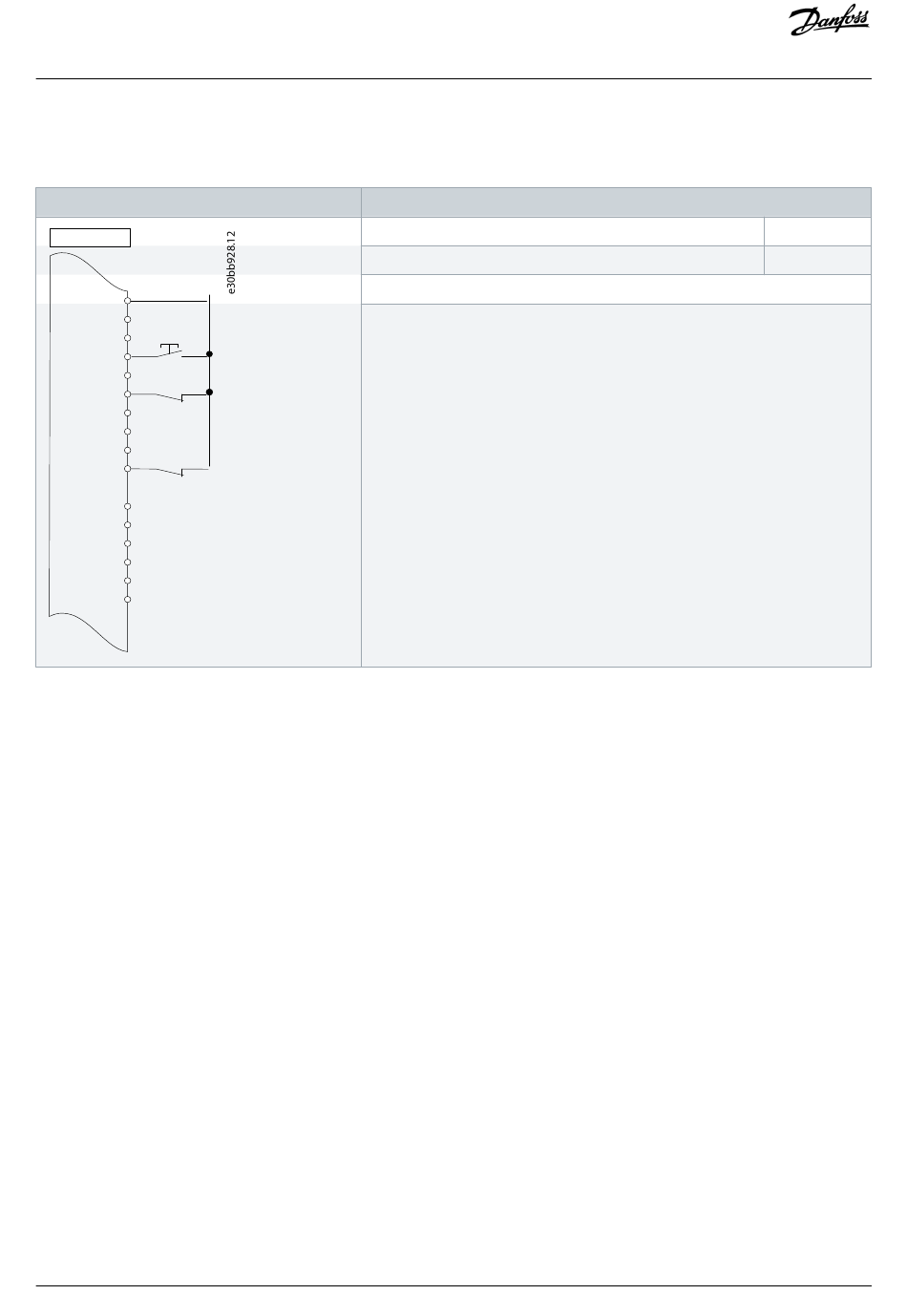

Table 31: External Alarm Reset
Drive
+24 V 12
+24 V 13
D IN 18
D IN
19
COM 20
D IN
27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Danfoss A/S © 2020.01
Parameter
Function
Parameter 5-11 Terminal 19 Digital Input
*=Default value
Notes/comments:
D IN 37 is an option.
Wiring Configuration Examples
Setting
[1] Reset
AQ275652274277en-000101 / 130R0708| 87
