DISOMAT Overview

3.2 Control Elements

3.2.1 General Information

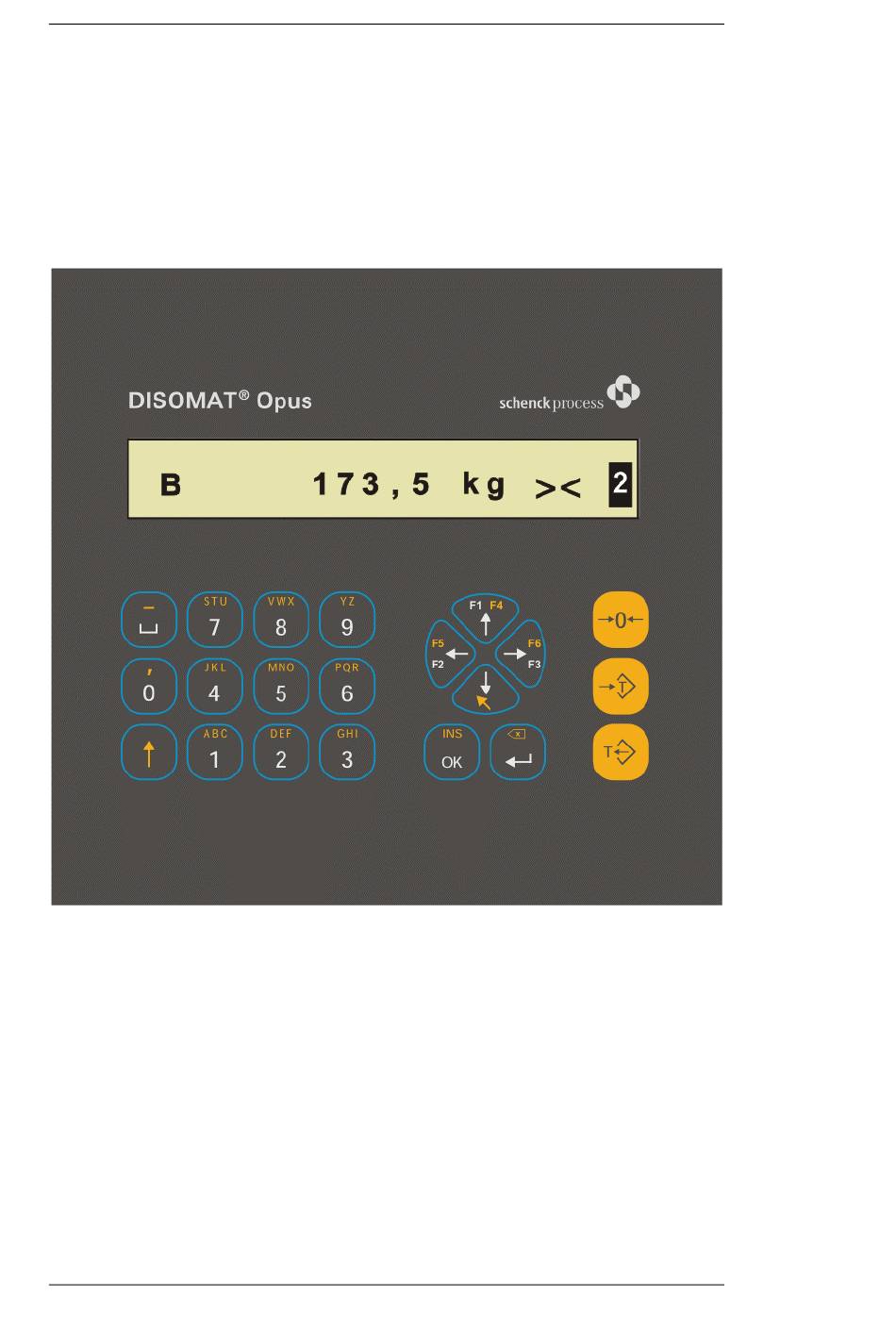

The figure below shows the system's front view.
A) 'DISOMAT Opus'
You can see two areas, the Display and the Keyboard. Their most important
elements are listed below and described on the pages to follow.
The display supplies, e.g.
•
Weight values
•
Scale status information (display symbols)
•
Event messages
•
Dialogs
The keyboard covers, e.g.
•
Alphanumeric keys
•
Direction keys
•
Function keys (weighing function)
