Example
SweepILogMeasureV(smua, 0.01, 0.1, 0.001, 5)
This function performs a five-point linear current sweep starting at 10 mA and stopping at 100 mA. Voltage is
measured at every step (point) in the sweep. The source is allowed to settle on each step for 1 ms before a
measurement is made.
The following table contains log values and corresponding source levels for the five-point logarithmic sweep:
MeasurePoint
1
2
3
4
5
Also see
KISweep factory script
2651A-901-01 Rev. C October 2021

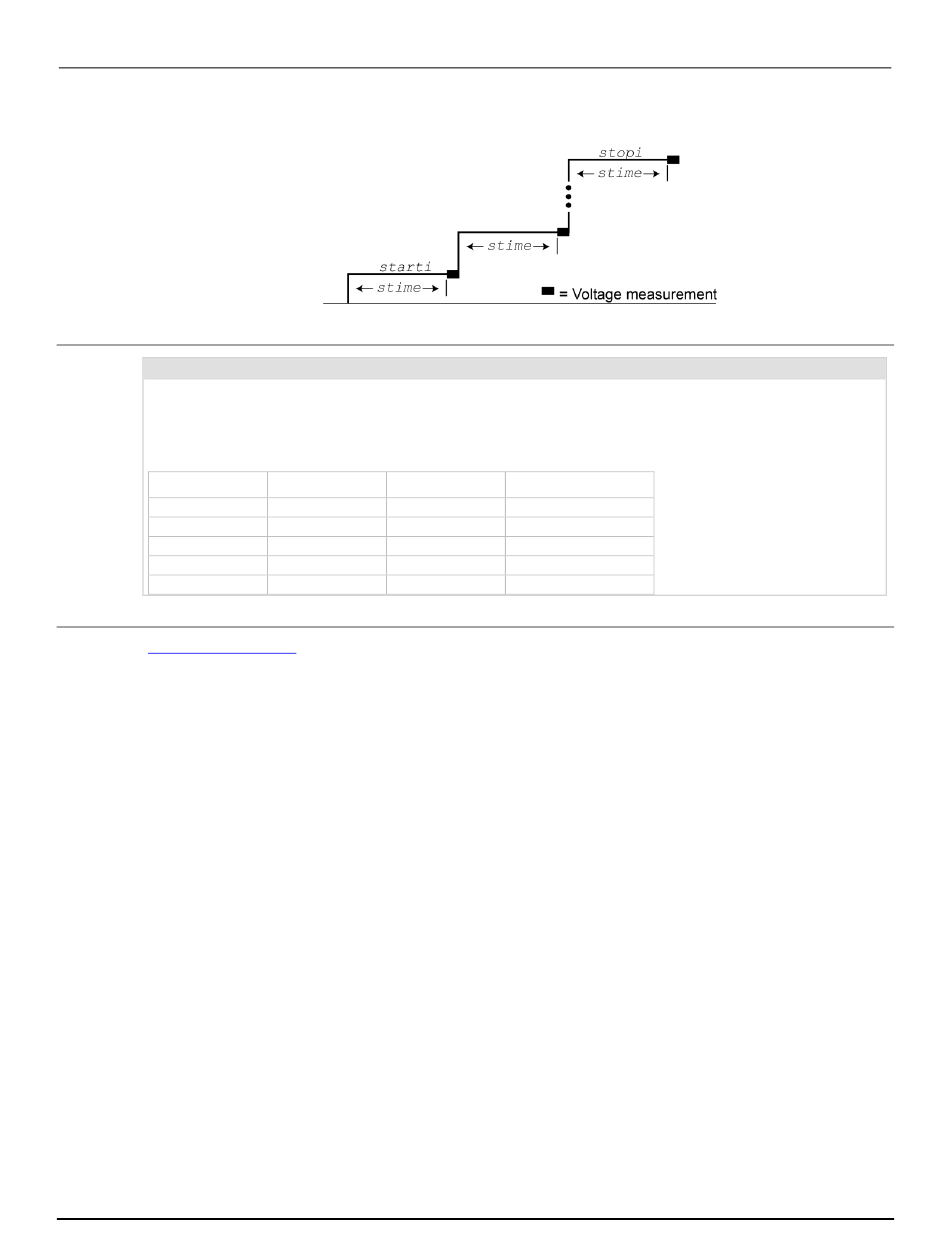

Figure 121: SweepILogMeasureV()
LogStepSize LogStep
0.25 0.0
0.25 0.25
0.25 0.5
0.25 0.75
0.25 1.0
(on page 5-22)
