To perform the specified number of pulse V, measure I cycles, this function:
Sets the smu to output bias volts and dwell for toff seconds
1.
Sets the smu to output level volts and dwell for ton seconds
2.
Performs voltage measurement with source at level volts
3.
Sets the smu to output bias volts for toff seconds
4.
Repeats steps 2 through 4 for the remaining points pulse-measure cycles
5.
Example
smua.measure.nplc = 0.001
PulseVMeasureI(smua, -1, 1, 1E-3, 2E-3, 20)
Also see
KIPulse factory script
QueryPulseConfig()
This KIPulse factory script function allows you to inspect the settings of the preconfigured pulse train assigned to
tag.
Type TSP-Link accessible
Function No
Usage
tbl = QueryPulseConfig(tag)
tag
tbl
Details
Once a pulse train is configured and assigned to a tag, you can use the QueryPulseConfig()
command to inspect the settings of this preconfigured pulse train.
2651A-901-01 Rev. C October 2021

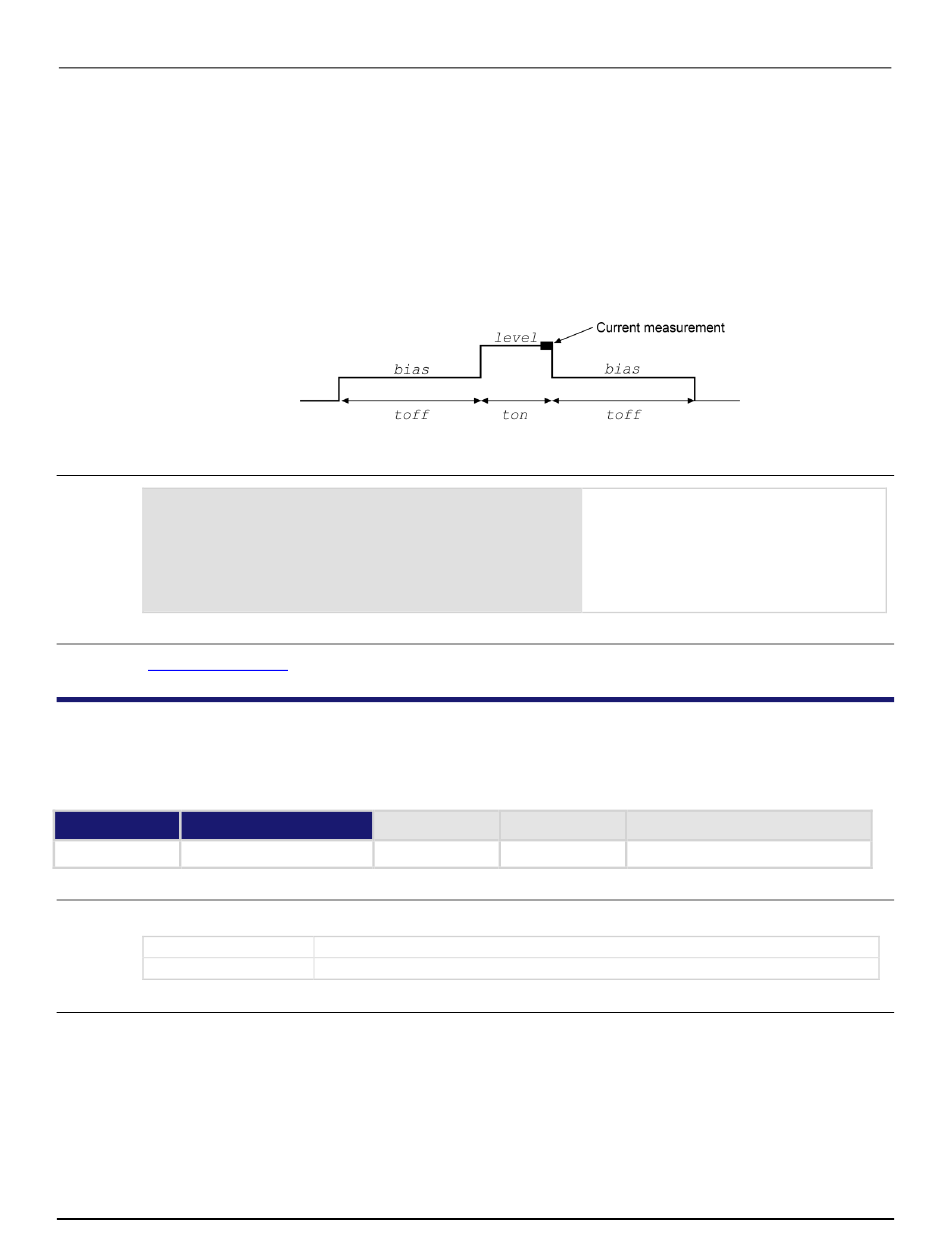

Figure 119: PulseVMeasureI()
(on page 5-23)
Affected by
Numeric identifier to be assigned to the defined pulse train
Returned table
Section 7: TSP command reference
SMU A outputs −1 V and dwells for 2 ms,
outputs 1 V and dwells for 1 ms. The current
measurement occurs during the dwell
period. After the measurement, the output
returns to −1 V and dwells for 2 ms. This
pulse-measure process repeats 19 more
times.
