Creating pulses with the Model 2651A SMU
Although the Model 2651A is not a pulse generator, you can create pulses by programming the SMU
to output a dc value and then return to an idle level. For information on how to create pulses, refer to
Sweep operation
Pulse rise and fall times
Although the Model 2651A can create pulses, it is not a pulse generator (pulse rise times are not
programmable).
The pulse rise time is the time it takes a pulse to go from 10% to 90% of the maximum value of the
pulse. Pulse fall time is similar but on the trailing edge of the pulse. For the Model 2651A, pulse rise
and fall times can vary depending on the following factors:
•
Cables (on page 4-26)
•
Range and pulse settling
•
Load and operating mode
•
Compliance limit settings (for details, see
Refer to the Model 2651A specifications for details on source settling times. For the latest
specifications, go to tek.com/keithley.
2651A-901-01 Rev. C October 2021
(on page 3-21) and Using the remote trigger model
(on page 4-30)
(on page 4-30)

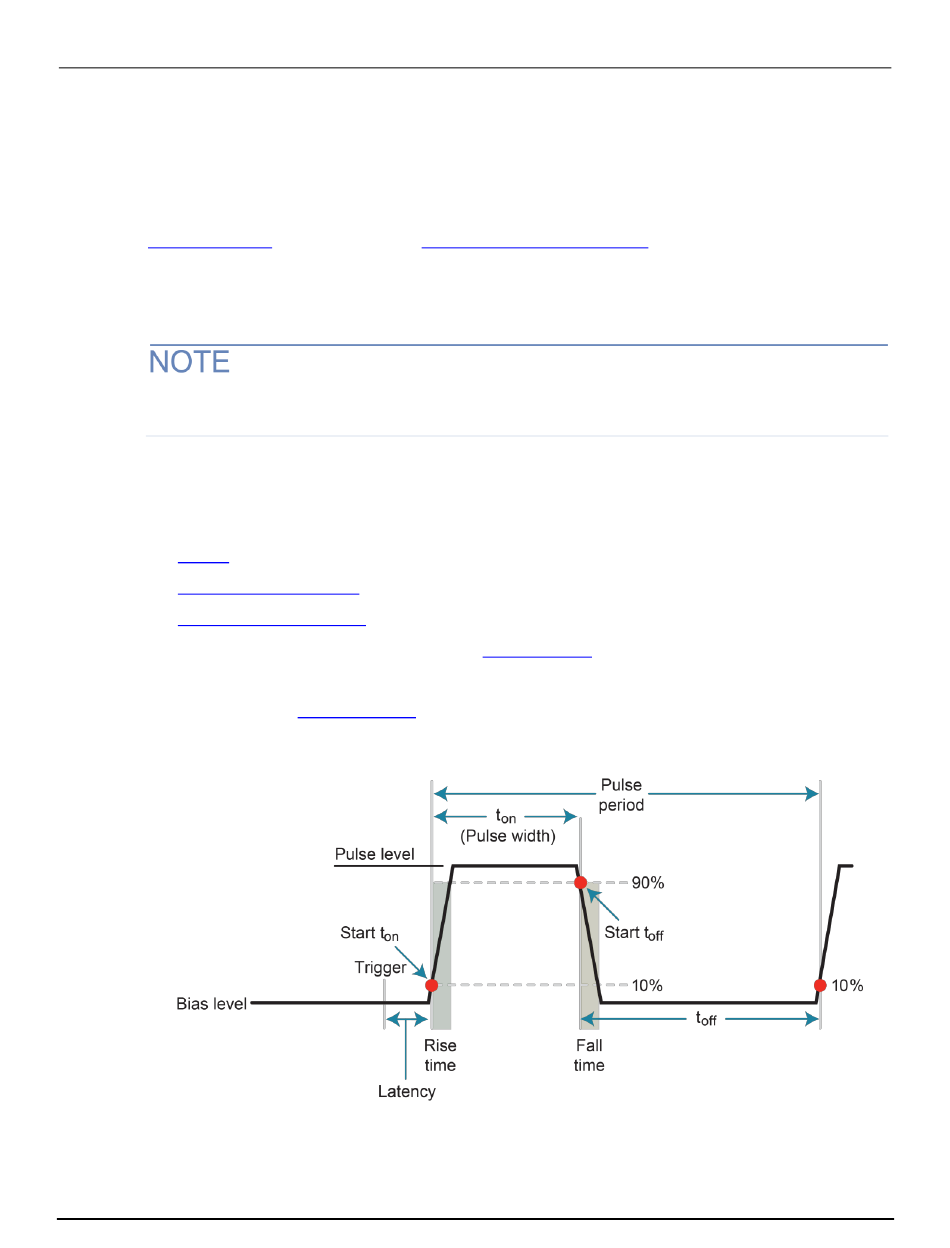

Figure 94: Pulse rise and fall times
(on page 3-38).
Limit principles (on page 4-2))
