This function does not cause the specified smu to output a pulse train. It simply checks to see if all the
pulse dimensions can be achieved, and if they are, assigns the indicated tag or index to the pulse
train. The InitiatePulseTest(tag) function is used to initiate a pulse train assigned to a valid
tag.
Example
ConfigPulseIMeasureV(smua, 0, 5, 10,
0.001, 0.080, 1, smua.nvbuffer1, 1)
Also see
InitiatePulseTest()
KIPulse factory script
2651A-901-01 Rev. C October 2021

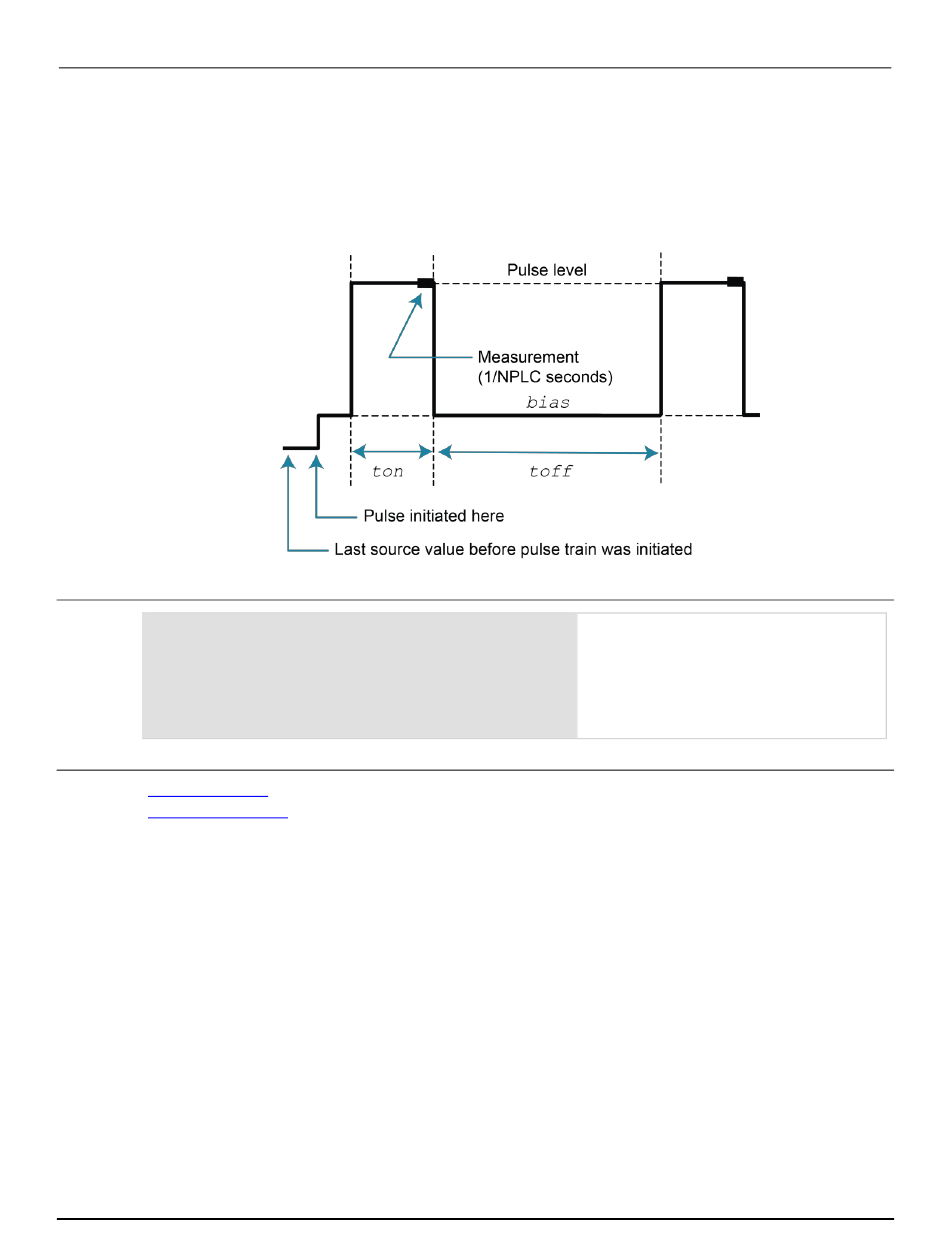

Figure 112: ConfigPulseIMeasureV()
(on page 7-128)
(on page 5-23)
Section 7: TSP command reference
Set up a pulse train that uses SMU channel
A. The pulse amplitude is 5 A and returns to
0 A after 1 ms. The pulse remains at 0 A for
80 ms and the voltage limit is 10 V during the
pulse. The pulse train consists of only
1 pulse, and this pulse is assigned a tag
index of 1.
